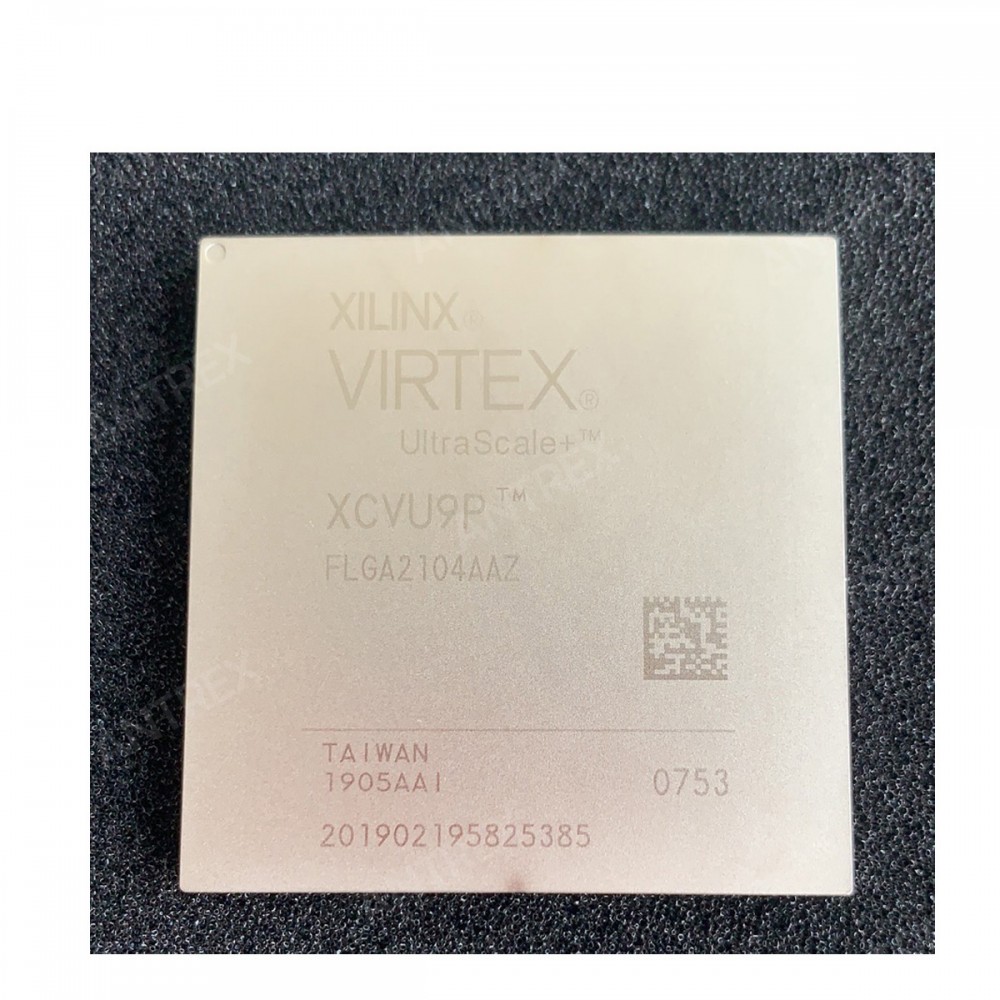

XCVU9P-2FLGA2104E
High-performance Virtex UltraScale+ FPGA with 2.58M logic cells and 2104-FCBGA package for advanced systems
- ПРОИЗВОДИТЕЛЬ
- AMD
- КАТЕГОРИЯ ТОВАРА
- Конфигурационные ПЗУ для FPGA
- Корпус
- BGA
- Склад
- 1,500 шт.
- Наличие
- Текущее количество требует подтверждения.
Характеристики товара
| ПРОИЗВОДИТЕЛЬ | AMD |
|---|---|
| КАТЕГОРИЯ ТОВАРА | Конфигурационные ПЗУ для FPGA |
| Adaptive Logic Modules (ALMs) | 147,780 |
| Applications | Data Centers, High-Speed Networking, AI Acceleration, Video Processing, Communications Systems |
| Block RAM | 75.9 Mbit |
| Core Supply Voltage | 0.825V to 0.876V |
| Device Family | XCVU9P |
| Distributed RAM | 36.1 Mbit |
| DSP Slices | 6,840 |
| Flip-Flops | 2,364,000 |
| High-Speed Transceivers | 120 GTY Transceivers |
| Logic Cells | 2,586,150 |
| Look-Up Tables (LUTs) | 1,182,000 |
| Maximum Transceiver Data Rate | 32.75 Gb/s |
| Operating Temperature Range | 0°C to +100°C (TJ) |
| Package | FCBGA-2104 |
| Package Size | 47.5 mm × 47.5 mm |
| Process Technology | 16 nm FinFET |
| Series | Virtex UltraScale+ |
| Speed Grade | -2 |
| Temperature Grade | Extended (E) |
| Total RAM Bits | 391,168,000 Bits |
| UltraRAM | 270 Mbit |
| User I/O Pins | 832 |
| Техническая документация | Запросить даташит |
Сводка по закупке
Основная информация о поставке и закупке для XCVU9P-2FLGA2104E.
Почему выбирают Antrex Electronics?
Независимая дистрибьюторская поддержка для проверенных закупок, инспекции и международных требований к поставкам.
Поддержка независимого дистрибьютора
Поиск дефицитных, снятых с производства и труднодоступных компонентов для производственных и закупочных задач.
Проверка прослеживаемости
До подтверждения заказа можно проверить этикетку, партию, дату производства и доступную документацию по цепочке поставок.
Инспекция и тестирование
При необходимости можно организовать визуальную проверку, рентген и тестирование третьей стороной.
Глобальная поддержка закупок
Поддержка международных закупок для OEM, EMS и дистрибьюторов — от отдельных компонентов до BOM-проектов.
Сертификация и поддержка проверки
Контроль качества, проверка прослеживаемости и инспекционная поддержка для закупок электронных компонентов.
Подробное описание XCVU9P-2FLGA2104E
Product Overview
XCVU9P-2FLGA2104E is an AMD Xilinx Virtex UltraScale+ Field Programmable Gate Array (FPGA) designed for ultra-high-performance computing, advanced networking and complex signal processing applications. Based on the UltraScale+ architecture, this FPGA integrates 2.586 million logic cells, 75.9 Mbit embedded memory, 6,840 DSP slices and 120 high-speed GTY transceivers. Featuring a -2 speed grade, extended temperature capability and 2104-ball FCBGA package, XCVU9P-2FLGA2104E delivers exceptional processing capacity, high bandwidth connectivity and flexible programmable acceleration for data centers, communications, AI acceleration, industrial systems and advanced embedded platforms.
Key Features
Manufacturer: AMD Xilinx
Part Number: XCVU9P-2FLGA2104E
Product Type: Field Programmable Gate Array (FPGA)
Series: Virtex UltraScale+
FPGA Architecture: UltraScale+ Programmable Logic Architecture
Speed Grade: -2
Device Grade: Extended Temperature Grade
Logic Cells: 2,586,150 Logic Cells
Configurable Logic Blocks (CLBs): 147,780 CLBs
Adaptive Logic Modules (ALMs): 147,780 ALMs
DSP Slices: 6,840 DSP48E2 Slices
Embedded Block RAM: 75.9 Mbit
Distributed RAM: 36.1 Mbit
UltraRAM Memory: Integrated UltraRAM resources for large-scale data storage
Total Memory Bits: Approx. 391 Mbit
High-Speed Transceivers: 120 GTY Transceivers
Maximum Transceiver Data Rate: Up to 32.75Gb/s
PCI Express Support: PCIe Gen3 integrated support
User I/O Count: 832 I/Os
Core Supply Voltage: Approx. 0.85V
Operating Voltage Range: 0.825V to 0.876V
Package Type: FCBGA-2104
Package Size: 47.5mm × 47.5mm
Mounting Type: Surface Mount Technology (SMT)
Operating Temperature Range: 0°C to +100°C (TJ)
Configuration Technology: SRAM-based FPGA configuration
Features: Ultra-high logic density, massive memory resources, advanced DSP processing, high-speed serial communication and flexible hardware acceleration
Typical Applications: Data centers, AI acceleration, cloud computing, high-speed networking, 5G infrastructure, medical imaging, industrial automation and advanced embedded systems
Datasheet: XCVU9P-2FLGA2104E datasheet PDF available for technical verification before production use.
Applications
XCVU9P-2FLGA2104E is designed for demanding applications requiring massive parallel processing, high-speed data transfer and programmable hardware acceleration. Typical applications include artificial intelligence accelerators, cloud computing platforms, communication infrastructure, high-performance computing, radar systems, medical imaging equipment, industrial vision systems and advanced FPGA-based processing platforms.
Quality & Sourcing
Antrex Electronics can support XCVU9P-2FLGA2104E sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For project-based purchasing, customers can provide quantity requirements, delivery schedules, application details and technical specifications for faster quotation support.
For quality assurance, Antrex Electronics can assist with product photos, marking verification, visual inspection and third-party testing services when required. OEM manufacturers, communication equipment suppliers, industrial system developers and electronic component buyers are welcome to submit BOM lists or hard-to-find FPGA requirements for sourcing assistance.
