LCMXO3L-9400C-6BG484C

Product Overview

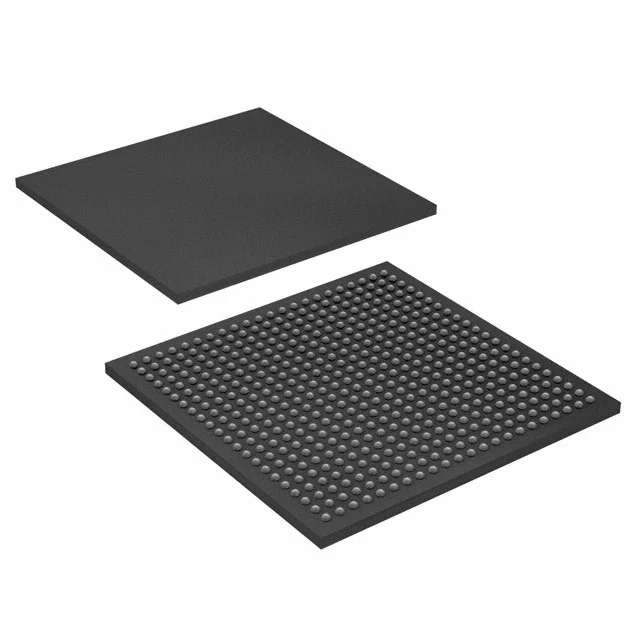

The LCMXO3L-9400C-6BG484C from Lattice Semiconductor Corporation is a MachXO3 FPGA integrated circuit. It is offered in a 484-LFBGA package case, with a 484-CABGA (19x19) surface-mount device package. The device provides 384 input/output pins, 9400 logic elements/cells, 1175 LABs/CLBs, and 442368 total RAM bits. It operates from a 2.375 V to 3.465 V supply and is specified for a 0°C to 85°C junction temperature range.

Key Features

• MachXO3 FPGA family device with 9400 logic elements/cells and 1175 LABs/CLBs.
• 384 I/O pins are available for system connectivity and interface implementation.
• 442368 total RAM bits provide on-chip storage for logic and data handling.
• 484-LFBGA package case and 484-CABGA (19x19) surface-mount device package.
• 2.375 V to 3.465 V supply range and 0°C to 85°C junction temperature range.

Applications

• Embedded control logic in general-purpose electronic systems.
• Interface bridging between digital subsystems using available I/O pins.
• Peripheral expansion in designs that require custom logic functions.
• Data formatting or buffering tasks using on-chip RAM bits.

Design & Procurement Notes

For board design, confirm the 484-LFBGA package case, 484-CABGA (19x19) pad layout, and surface-mount assembly process. Keep supply voltage within 2.375 V to 3.465 V and account for the 0°C to 85°C junction temperature limit in thermal planning. Use the 384 I/O count, 9400 logic elements/cells, 1175 LABs/CLBs, and 442368 total RAM bits to assess whether the device meets the required connectivity, logic capacity, and on-chip storage needs before selection. Verify the final footprint and thermal characteristics against the selected package and operating conditions.
