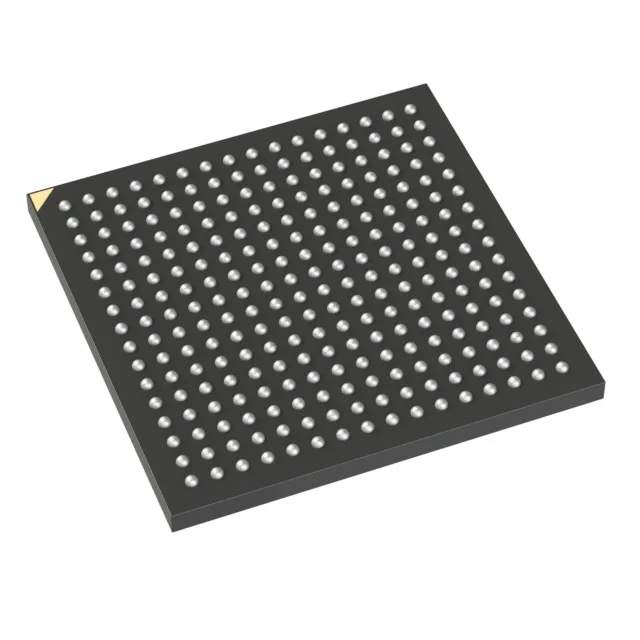

LCMXO3L-2100C-6BG256C
IC FPGA 206 I/O 256CABGA
- 產品分類
- FPGA - 現場可程式化閘陣列
- 封裝
- 256-LFBGA
- 庫存
- 1,348 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Lattice Semiconductor Corporation |
|---|---|
| 產品分類 | FPGA - 現場可程式化閘陣列 |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package | Tray |
| Product status | Active |
| Series | MachXO3 |
| Supplier Device Package | 256-CABGA (14x14) |
| Voltage - Supply | 2.375V ~ 3.465V |
| 資料表 | 查看資料表PDF |
採購概覽
LCMXO3L-2100C-6BG256C 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LCMXO3L-2100C-6BG256C 詳細描述
Product Overview
The Lattice Semiconductor Corporation LCMXO3L-2100C-6BG256C is a MachXO3 field-programmable gate array (FPGA) for implementing configurable digital logic. It provides 2112 logic elements or cells and 75,776 total RAM bits, supported by 264 LABs/CLBs. The device exposes 206 I/O pins and operates from a 2.375 V to 3.465 V supply. It is supplied in a 256-CABGA (14x14) surface-mount package, also described as 256-LFBGA, with an operating junction temperature range of 0°C to 85°C. The device supports configurable digital logic, signal routing, and local state storage within a ball-grid-array footprint.
Key Features
- MachXO3 FPGA architecture with 2112 logic elements/cells and 264 LABs/CLBs.
- 75,776 total RAM bits for on-device storage.
- 206 I/O pins for external signal connection and logic interfacing.
- 2.375 V to 3.465 V supply voltage range.
- 256-CABGA (14x14) surface-mount package, also identified as 256-LFBGA.
- Operating junction temperature range of 0°C to 85°C.
Applications
- Custom control logic in digital hardware systems.
- Signal routing and logic interfacing for board-level functions.
- State storage using on-device RAM bits.
- I/O coordination for designs using the 206 available I/O pins.
Design & Procurement Notes
Designers should verify that the 2.375 V to 3.465 V supply range and 0°C to 85°C junction temperature limit match the target board power rail and thermal conditions. The 206 I/O count and 256-CABGA (14x14) footprint require board layout and fanout planning for surface-mount BGA assembly. The 2112 logic elements and 75,776 total RAM bits should be compared with the planned logic and storage requirements before finalizing the FPGA selection.
