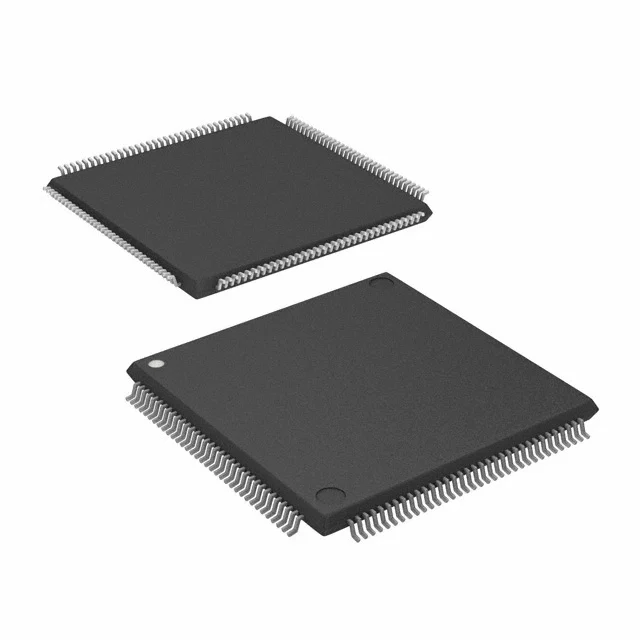

LCMXO2-7000ZE-2TG144I
IC FPGA 114 I/O 144TQFP
- 產品分類
- FPGA - 現場可程式化閘陣列
- 封裝
- 144-LQFP
- 庫存
- 1,339 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Lattice Semiconductor Corporation |
|---|---|
| 產品分類 | FPGA - 現場可程式化閘陣列 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Package | Tray |
| Product status | Active |
| Series | MachXO2 |
| Supplier Device Package | 144-TQFP (20x20) |
| Voltage - Supply | 1.14V ~ 1.26V |
| 資料表 | 查看資料表PDF |
採購概覽
LCMXO2-7000ZE-2TG144I 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LCMXO2-7000ZE-2TG144I 詳細描述
Product Overview
The Lattice Semiconductor Corporation LCMXO2-7000ZE-2TG144I is a MachXO2 field programmable gate array (FPGA) intended for embedded logic and control functions. It provides 6864 logic elements/cells, 858 LABs/CLBs, 245760 total RAM bits, and 114 I/O pins in a 144-LQFP surface-mount package. The supply voltage range is 1.14V ~ 1.26V, and the junction operating temperature range is -40°C ~ 100°C (TJ). The package footprint is 144-TQFP (20x20), supporting board-level integration where programmable logic, I/O, and on-chip memory resources are required.
Key Features
- MachXO2 FPGA architecture with 6864 logic elements/cells and 858 LABs/CLBs
- 245760 total RAM bits for on-chip data storage and buffering
- 114 I/O pins for external interfacing and signal routing
- 144-LQFP surface-mount package with 144-TQFP (20x20) device package
- 1.14V ~ 1.26V supply voltage range
- -40°C ~ 100°C (TJ) operating temperature range
Applications
- Embedded control logic for processors, peripherals, and custom state machines
- Sensor and peripheral interface aggregation using the available I/O pins
- Communication protocol bridging or format conversion within programmable logic
- On-chip buffering and small data storage using available RAM bits
Design & Procurement Notes
Design teams should plan for a 1.14V ~ 1.26V supply range, verify thermal conditions against the -40°C ~ 100°C (TJ) limit, and accommodate the 144-TQFP (20x20) surface-mount footprint during PCB layout. The 114 I/O pins, 6864 logic elements/cells, 858 LABs/CLBs, and 245760 total RAM bits should be mapped against the required logic, memory, and interface resources before finalizing the design. Because the device is a MachXO2 FPGA, consider programmable logic resource utilization, I/O assignment, and package thermal behavior during schematic capture and board layout. For procurement, specify the exact manufacturer part number LCMXO2-7000ZE-2TG144I and confirm the 144-LQFP / 144-TQFP (20x20) package designation to avoid mismatched footprint or package assumptions.
