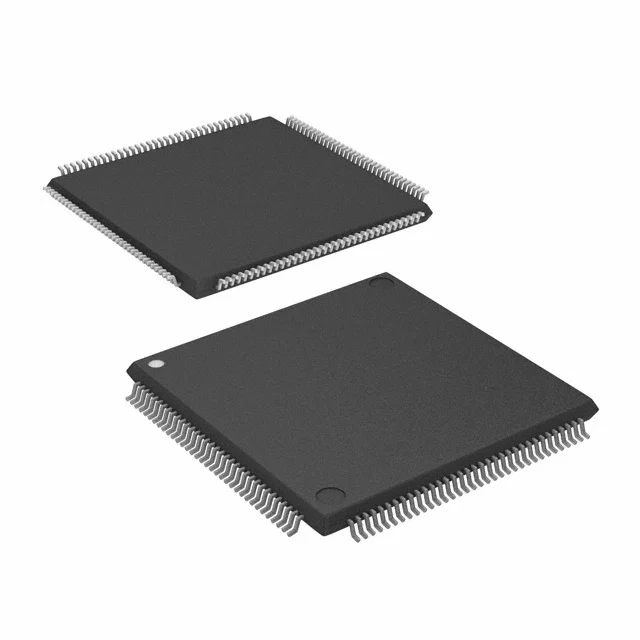

LCMXO2-7000HE-5TG144I
IC FPGA 114 I/O 144TQFP
- 產品分類
- FPGA - 現場可程式化閘陣列
- 封裝
- 144-LQFP
- 庫存
- 1,384 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Lattice Semiconductor Corporation |
|---|---|
| 產品分類 | FPGA - 現場可程式化閘陣列 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Package | Tray |
| Product status | Active |
| Series | MachXO2 |
| Supplier Device Package | 144-TQFP (20x20) |
| Voltage - Supply | 1.14V ~ 1.26V |
| 資料表 | 查看資料表PDF |
採購概覽
LCMXO2-7000HE-5TG144I 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LCMXO2-7000HE-5TG144I 詳細描述
Product Overview
The LCMXO2-7000HE-5TG144I from Lattice Semiconductor Corporation is a MachXO2 family field programmable gate array in a 144-LQFP / 144-TQFP (20x20) surface-mount package. The device provides 114 input/output pins, 6864 logic elements, 858 LABs/CLBs, and 245760 total RAM bits, supporting configurable digital logic and on-chip storage in compact embedded hardware. Its supply voltage range is 1.14V to 1.26V, and the operating junction temperature range is -40°C to 100°C.
Key Features
- 114 input/output pins for external device interfacing and board-level signal routing.
- 6864 logic elements and 858 LABs/CLBs for configurable combinational and sequential logic.
- 245760 total RAM bits for on-chip data buffering and memory functions.
- 1.14V to 1.26V supply voltage range.
- 144-LQFP / 144-TQFP (20x20) surface-mount package.
- Operating junction temperature range of -40°C to 100°C.
- MachXO2 family field programmable gate array.
Applications
- Embedded control logic in compact boards that require configurable digital functions.
- Interface bridging between external peripherals or digital buses using the 114 input/output pins.
- Local data buffering and processing in systems that use the 245760 total RAM bits.
Design & Procurement Notes
Designers should reserve board area for the 144-LQFP / 144-TQFP (20x20) surface-mount footprint and plan for 114 input/output connections when mapping external interfaces. The 1.14V to 1.26V supply range requires attention to voltage regulation and power distribution on the board, while the -40°C to 100°C junction temperature range should be considered in thermal design. The available 6864 logic elements, 858 LABs/CLBs, and 245760 RAM bits can guide initial sizing of configurable logic and on-chip memory before detailed pin mapping and layout planning. Use the exact manufacturer part number LCMXO2-7000HE-5TG144I when specifying the device to preserve the package and electrical characteristics.
