LCMXO2-7000HE-5TG144C

Product Overview

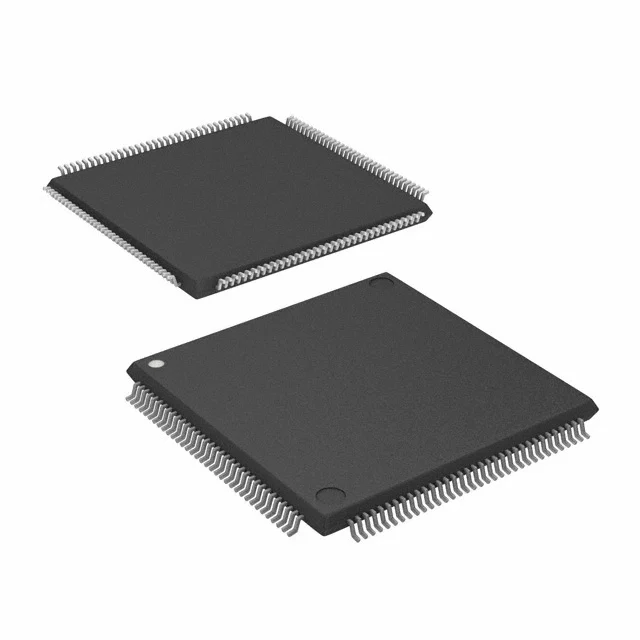

The LCMXO2-7000HE-5TG144C is a Lattice Semiconductor Corporation MachXO2 field programmable gate array (FPGA) in a 144-LQFP package. It provides 114 I/O pins, 6864 logic elements/cells, 858 LABs/CLBs, and 245760 total RAM bits. The device is a surface-mount part that operates from a 1.14 V to 1.26 V supply over a junction temperature range of 0°C to 85°C. Its 144-TQFP (20 x 20) package footprint supports integration into compact embedded logic, digital control, and programmable interfacing functions within its temperature range.

Key Features

• MachXO2 FPGA architecture with 6864 logic elements/cells
• 858 LABs/CLBs for programmable digital logic organization
• 245760 total RAM bits for memory resources
• 114 I/O pins for board-level signal access
• 144-LQFP surface-mount package, 144-TQFP (20 x 20) form
• 1.14 V to 1.26 V supply voltage range
• 0°C to 85°C operating temperature range (TJ)

Applications

• Programmable digital logic in embedded control boards
• Board-level I/O expansion and custom interfacing
• Compact logic functions in consumer and general embedded systems

Design & Procurement Notes

Design considerations should focus on the 144-LQFP / 144-TQFP (20 x 20) surface-mount footprint, 114 I/O availability, and the 1.14 V to 1.26 V supply requirement. The 6864 logic elements/cells, 858 LABs/CLBs, and 245760 total RAM bits define the available programmable logic and RAM scale. PCB land patterns, assembly processes, and thermal design should match the surface-mount package and the 0°C to 85°C junction temperature range. Layout planning should also account for the 144-pin package and I/O count when connecting external devices. Procurement notes should reference the exact part number LCMXO2-7000HE-5TG144C and the Lattice Semiconductor MachXO2 family designation to ensure the correct package and specification set are selected.
