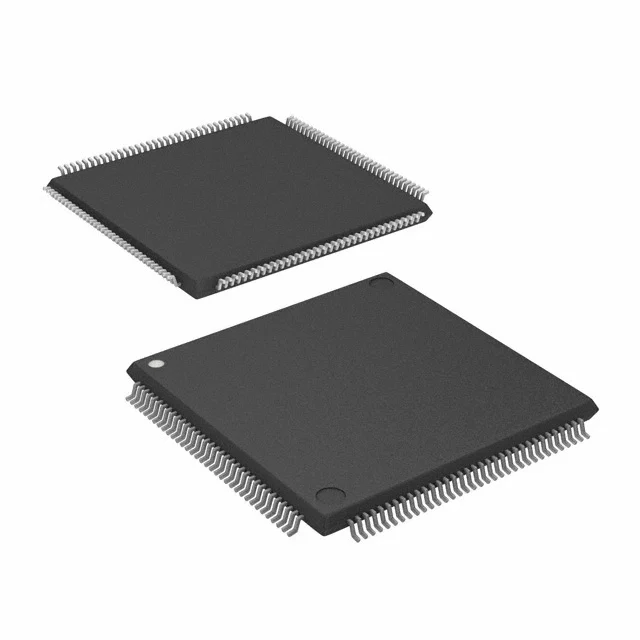

LCMXO2-7000HC-6TG144C
IC FPGA 114 I/O 144TQFP
- 產品分類
- FPGA - 現場可程式化閘陣列
- 封裝
- 144-LQFP
- 庫存
- 3,032 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Lattice Semiconductor Corporation |
|---|---|
| 產品分類 | FPGA - 現場可程式化閘陣列 |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package | Tray |
| Product status | Active |
| Series | MachXO2 |
| Supplier Device Package | 144-TQFP (20x20) |
| Voltage - Supply | 2.375V ~ 3.465V |
| 資料表 | 查看資料表PDF |
採購概覽
LCMXO2-7000HC-6TG144C 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LCMXO2-7000HC-6TG144C 詳細描述
Product Overview
The LCMXO2-7000HC-6TG144C is a MachXO2 field programmable gate array from Lattice Semiconductor Corporation. The supplied product data identifies it as a 144-LQFP surface-mount FPGA with 114 I/O pins, 6864 logic elements/cells, 858 LABs/CLBs, and 245760 total RAM bits. Its specified supply voltage range is 2.375 V to 3.465 V, and its operating temperature range is 0°C to 85°C (TJ). The supplier device package is listed as 144-TQFP (20x20). The supplied lifecycle status is Active.
Key Features
- MachXO2 FPGA device supplied in a 144-LQFP surface-mount package with a 144-TQFP (20x20) supplier device package.
- Provides 6864 logic elements/cells and 858 LABs/CLBs for implementing custom digital logic functions.
- Includes 245760 total RAM bits and 114 I/O pins in the supplied device data.
- Operates from a specified supply voltage range of 2.375 V to 3.465 V with a 0°C to 85°C (TJ) operating temperature range.
Applications
- Programmable glue logic or custom control functions in embedded hardware designs.
- Interface adaptation between multiple external signals using the available I/O.
- On-chip buffering or small data storage within a custom logic design.
Design & Procurement Notes
When selecting this device, compare the available logic elements, LABs/CLBs, RAM bits, and I/O count with the target design requirements. The specified supply voltage range and 0°C to 85°C (TJ) temperature range should be checked against the system power and thermal conditions. The 144-LQFP / 144-TQFP (20x20) surface-mount package affects PCB footprint, routing, and assembly. The supplied lifecycle status is Active.
