LCMXO2-7000HC-4FG484C

Product Overview

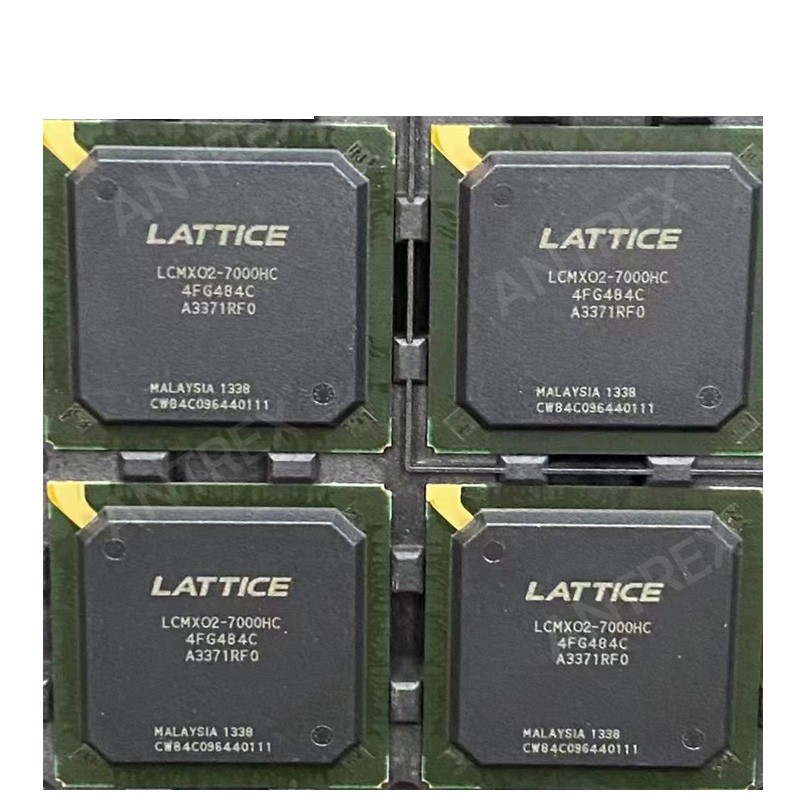

The LCMXO2-7000HC-4FG484C from Lattice Semiconductor Corporation is a MachXO2 field programmable gate array (FPGA) with embedded logic and I/O resources. The device provides 6,864 logic elements/cells, 858 LABs/CLBs, and 245,760 total RAM bits, with 334 I/O available for interfacing to other board components. It is supplied in a 484-BBGA / 484-FBGA (23x23) surface-mount package and operates from a 2.375 V to 3.465 V supply. Its specified operating junction temperature range is 0°C to 85°C. These attributes make the FPGA suitable for configurable digital control paths, signal routing, and local buffering within embedded hardware designs.

Key Features

• MachXO2 FPGA from Lattice Semiconductor Corporation
• 6,864 logic elements/cells and 858 LABs/CLBs
• 245,760 total RAM bits
• 334 I/O for embedded interfacing
• 2.375 V to 3.465 V supply voltage range
• 0°C to 85°C operating junction temperature range
• 484-BBGA / 484-FBGA (23x23) surface-mount package

Applications

• Programmable control logic in embedded hardware
• Peripheral interface expansion and signal routing using the 334 I/O
• On-chip buffering using the 245,760 RAM bits

Design & Procurement Notes

When selecting the LCMXO2-7000HC-4FG484C for a design, account for the 484-BBGA / 484-FBGA (23x23) surface-mount footprint and the power supply range of 2.375 V to 3.465 V. The 0°C to 85°C junction temperature limit should be considered together with board thermal design and ambient conditions. The 334 I/O count, 6,864 logic elements/cells, 858 LABs/CLBs, and 245,760 RAM bits define the available logic, block, and memory resources for mapping user functions. These values should be compared against the target design's signal count, logic utilization, and on-chip memory needs before finalizing the FPGA choice.
