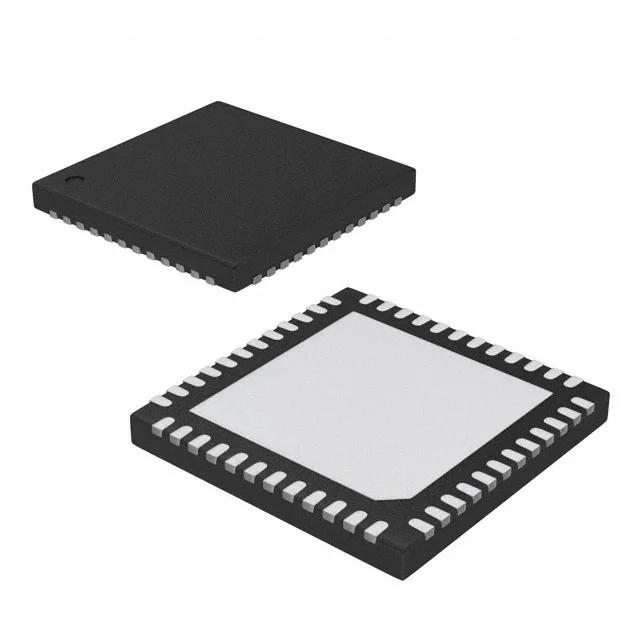

LCMXO2-640HC-5SG48C
IC FPGA 40 I/O 48QFN
- 產品分類
- FPGA - 現場可程式化閘陣列
- 封裝
- 48-VFQFN Exposed Pad
- 庫存
- 1,321 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Lattice Semiconductor Corporation |
|---|---|
| 產品分類 | FPGA - 現場可程式化閘陣列 |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package | Tray |
| Product status | Active |
| Series | MachXO2 |
| Supplier Device Package | 48-QFN (7x7) |
| Voltage - Supply | 2.375V ~ 3.465V |
| 資料表 | 查看資料表PDF |
採購概覽
LCMXO2-640HC-5SG48C 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LCMXO2-640HC-5SG48C 詳細描述
Product Overview
The LCMXO2-640HC-5SG48C is a MachXO2 field programmable gate array from Lattice Semiconductor Corporation. It uses a 48-VFQFN exposed pad package, 48-QFN (7x7), and surface mount construction. The device provides 40 I/O pins, 640 logic elements or cells, 80 LABs/CLBs, and 18432 total RAM bits. Its supply voltage range is 2.375V to 3.465V, and its operating temperature range is 0°C to 85°C (TJ). This FPGA is suited for embedded logic integration where programmable control, signal routing, and compact board placement are required.
Key Features
- MachXO2 FPGA architecture with 640 logic elements or cells and 80 LABs/CLBs.
- 40 I/O pins for external signal connection and board-level interfacing.
- 18432 total RAM bits available for on-device storage and buffering.
- Supply voltage range of 2.375V to 3.465V.
- 48-VFQFN exposed pad package, 48-QFN (7x7), surface mount.
- Operating temperature range of 0°C to 85°C (TJ).
Applications
- Embedded control logic where programmable state machines and custom digital functions are needed.
- Board-level glue logic replacement in compact circuit designs.
- Signal routing and interface bridging between logic blocks using available I/O pins.
- Small embedded data buffering or temporary storage using on-device RAM bits.
Design & Procurement Notes
Designers should account for surface mount assembly and the exposed pad when planning the PCB footprint, soldering, and pad connection. The 2.375V to 3.465V supply range and 0°C to 85°C (TJ) operating range should be checked against the board power and ambient conditions. The 40 I/O pins, 640 logic elements, 80 LABs/CLBs, and 18432 RAM bits define the available logic and storage resources for a MachXO2 design. The 48-QFN (7x7) package should be evaluated for routing density and board space.
