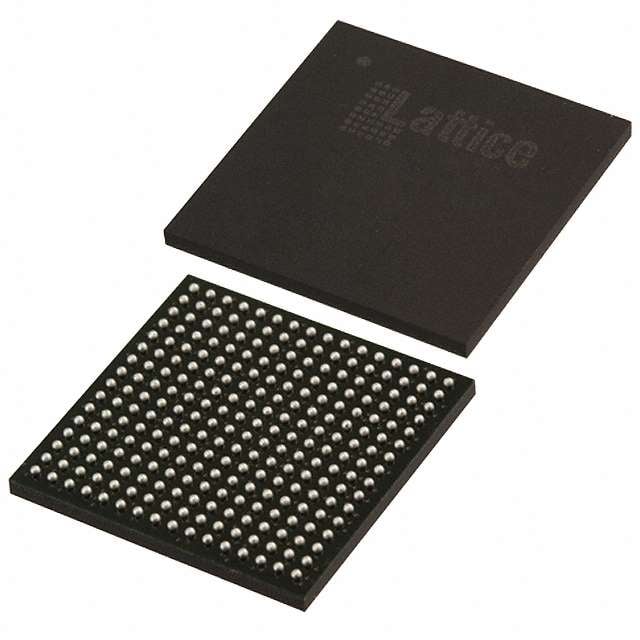

LCMXO2-4000ZE-2FTG256C
IC FPGA 206 I/O 256FTBGA
- 產品分類
- FPGA - 現場可程式化閘陣列
- 封裝
- 256-LBGA
- 庫存
- 1,302 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Lattice Semiconductor Corporation |
|---|---|
| 產品分類 | FPGA - 現場可程式化閘陣列 |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package | Tray |
| Product status | Active |
| Series | MachXO2 |
| Supplier Device Package | 256-FTBGA (17x17) |
| Voltage - Supply | 1.14V ~ 1.26V |
| 資料表 | 查看資料表PDF |
採購概覽
LCMXO2-4000ZE-2FTG256C 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LCMXO2-4000ZE-2FTG256C 詳細描述
Product Overview
The Lattice Semiconductor Corporation LCMXO2-4000ZE-2FTG256C is a MachXO2 field programmable gate array in a 256-FTBGA (17x17) package, with a 256-LBGA case designation. It includes 4320 logic elements/cells, 540 LABs/CLBs, 94208 total RAM bits, and 206 I/O. The device uses surface-mount mounting and operates from 1.14V to 1.26V supply voltage with a junction temperature range of 0°C to 85°C.
Key Features
- MachXO2 FPGA architecture with 4320 logic elements/cells and 540 LABs/CLBs.
- 94208 total RAM bits support on-chip data storage and buffering.
- 206 I/O are available for external connections and peripheral interfacing.
- 256-FTBGA (17x17) surface-mount package uses a 256-LBGA case designation.
- Supply voltage range is 1.14V to 1.26V.
- Junction operating temperature range is 0°C to 85°C.
Applications
- Embedded control logic requiring custom state machines and multiple discrete signals.
- Bridging between a processor and external peripherals using the available I/O.
- Buffering or temporary storage of data using the total RAM bits.
- Replacing discrete logic in compact surface-mount board designs.
- Implementing timing and sequencing functions in embedded systems.
Design & Procurement Notes
Designers should verify that the 1.14V to 1.26V supply range is compatible with the board power architecture and that the 0°C to 85°C junction temperature range covers expected operating conditions. The 4320 logic elements/cells, 540 LABs/CLBs, 94208 total RAM bits, and 206 I/O define the available logic, storage, and interface resources for the target design. The 256-FTBGA (17x17) surface-mount package should be considered during PCB layout, assembly, and inspection planning. When ordering, confirm the exact manufacturer part number LCMXO2-4000ZE-2FTG256C and package details to avoid substitution errors.
