LCMXO2-4000HE-6BG256I

Product Overview

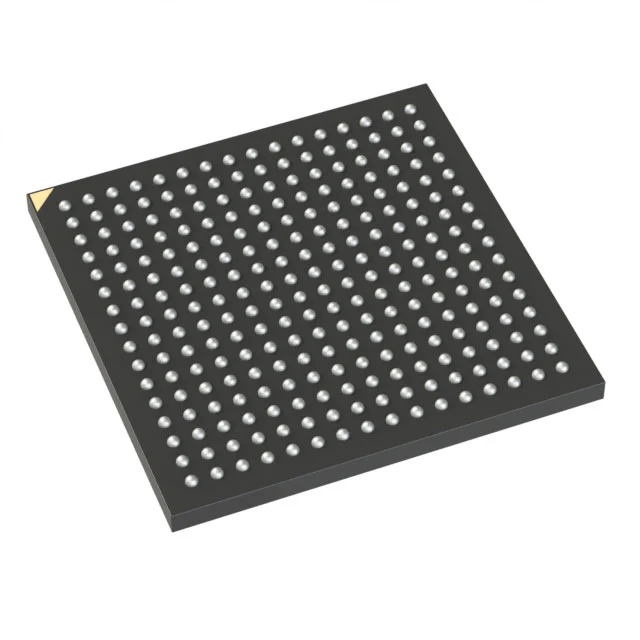

The Lattice Semiconductor Corporation LCMXO2-4000HE-6BG256I is a MachXO2 field programmable gate array (FPGA) supplied in a 256-LFBGA package, with a supplier device package of 256-CABGA (14x14). It provides 206 I/O, 4320 logic elements/cells, 540 LABs/CLBs, and 94208 total RAM bits. The device is surface mount and operates from a 1.14V to 1.26V supply over a junction temperature range of -40°C to 100°C.

Key Features

• MachXO2 FPGA architecture with 4320 logic elements/cells and 540 LABs/CLBs.
• 206 I/O pins for system interface, control, and data routing.
• 94208 total RAM bits available for on-chip buffering and lookup structures.
• 1.14V to 1.26V supply voltage range.
• 256-LFBGA surface-mount package, supplier device package 256-CABGA (14x14).
• Operating temperature range of -40°C to 100°C (TJ).

Applications

• Embedded control logic implementation for digital sequencing and state-machine behavior.
• Sensor and peripheral interface aggregation using programmable I/O and on-chip RAM.
• Custom bridge or glue logic between processor, memory, and external devices.
• Timing and control signal generation in board-level digital systems.
