LCMXO2-4000HE-5FTG256C

Product Overview

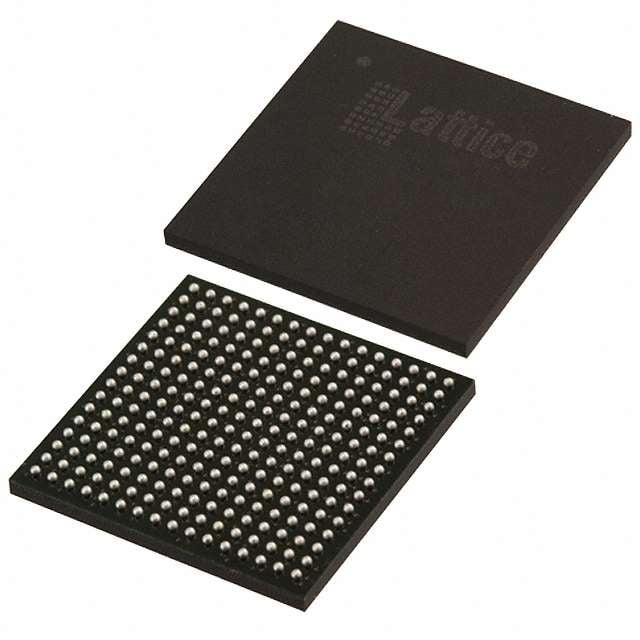

The LCMXO2-4000HE-5FTG256C from Lattice Semiconductor Corporation is a MachXO2 field programmable gate array intended for embedded digital logic designs. It provides 4320 logic elements/cells, 540 LABs/CLBs, and 94208 total RAM bits, with 206 I/O pins available for board-level interfacing. The device operates from a 1.14V ~ 1.26V supply and is specified for 0°C ~ 85°C (TJ) operation. It is offered in a surface-mount 256-LBGA package, identified as 256-FTBGA (17x17).

Key Features

• MachXO2 FPGA architecture with 4320 logic elements/cells and 540 LABs/CLBs
• 94208 total RAM bits available as on-chip memory resources
• 206 I/O pins for external signal interfacing and board-level connectivity
• 1.14V ~ 1.26V supply range for device operation
• 0°C ~ 85°C (TJ) operating temperature rating
• Surface-mount 256-LBGA package, designated 256-FTBGA (17x17)

Applications

• Programmable control logic in embedded systems requiring custom digital state machines or interface glue logic
• On-chip memory structures for embedded processing architectures
• Board-level signal expansion and interface management using the available 206 I/O pins
• Compact surface-mount FPGA designs requiring programmable digital logic

Design & Procurement Notes

When selecting this part, confirm that the system power architecture can deliver the specified 1.14V ~ 1.26V supply and that the junction temperature remains within 0°C ~ 85°C under expected conditions. The 256-FTBGA (17x17) surface-mount package requires PCB layout compatible with the 256-LBGA footprint and surface-mount assembly. Designers should map required functions against 4320 logic elements/cells, 540 LABs/CLBs, 94208 total RAM bits, and 206 I/O pins before committing to the exact LCMXO2-4000HE-5FTG256C part number.
