LCMXO2-4000HC-6MG132I

Product Overview

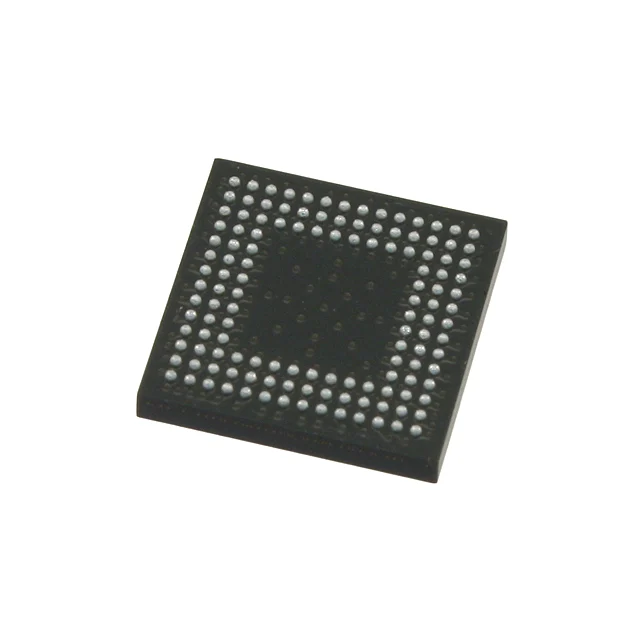

The Lattice Semiconductor Corporation LCMXO2-4000HC-6MG132I is a MachXO2 field programmable gate array (FPGA) device intended for embedded programmable logic designs. It provides 4,320 logic elements or cells, 540 LABs/CLBs, 94,208 total RAM bits, and 104 user I/O pins. The device is offered in a 132-CSPBGA (8x8) surface-mount package and operates from a 2.375 V to 3.465 V supply over a junction temperature range of -40°C to 100°C.

Key Features

• MachXO2 FPGA architecture with 4,320 logic elements or cells and 540 LABs/CLBs
• 94,208 total RAM bits for on-device memory and buffering needs
• 104 I/O pins for interfacing to external logic, sensors, peripherals, and board-level signals
• 2.375 V to 3.465 V supply voltage range
• 132-CSPBGA (8x8) surface-mount package with -40°C to 100°C (TJ) operating temperature range

Applications

• Embedded control logic and state-machine implementation in programmable hardware designs
• Protocol or signal bridging between digital interfaces using custom FPGA logic
• Sensor, peripheral, and bus aggregation in embedded systems
• Data buffering and preprocessing using the available FPGA logic and on-device RAM bits

Design & Procurement Notes

When selecting this device, confirm that the design fits within 4,320 logic elements or cells, 540 LABs/CLBs, 94,208 total RAM bits, and 104 I/O pins. The 2.375 V to 3.465 V supply range should be checked against the board power architecture and I/O voltage requirements. The 132-CSPBGA (8x8) package requires surface-mount assembly and appropriate land-pattern, routing, and thermal planning. The -40°C to 100°C (TJ) operating range supports wide-temperature design evaluation; verify thermal behavior in the final PCB context.
