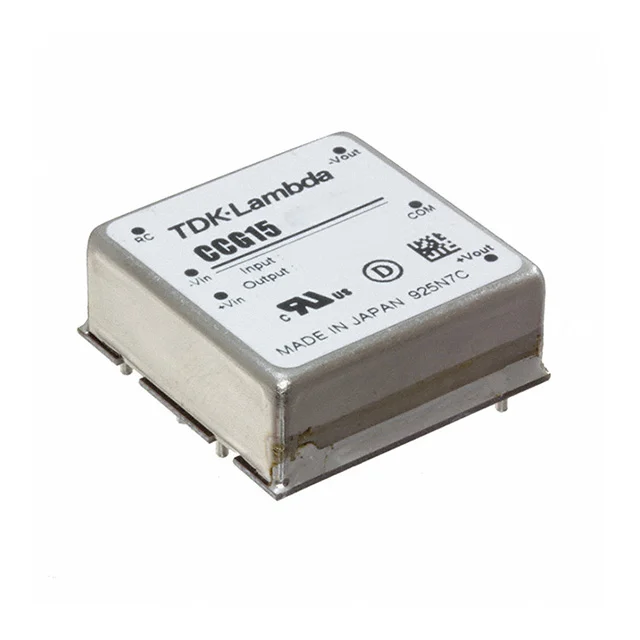

CCG15-48-12S
DC DC CONVERTER 12V 15W
- 製造商
- TDK-Lambda
- 產品分類
- DC/DC 轉換器
- 封裝
- 6-DIP Module
- 庫存
- 1,495 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | TDK-Lambda |
|---|---|
| 產品分類 | DC/DC 轉換器 |
| Applications | ITE (Commercial) |
| Approval Agency | IEC, UL, CSA, EN, CE, UKCA |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 1.3A |
| Efficiency | 88% |
| Features | Adjustable Output, Remote On/Off, OCP |
| Min Qty | 1 |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tray |
| Power (Watts) | 15 W |
| Product status | Active |
| Series | CCG15 (15W) |
| Size / Dimension | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 76V |
| Voltage - Input (Min) | 18V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12V |
| 資料表 | 查看資料表PDF |
採購概覽
CCG15-48-12S 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
CCG15-48-12S 詳細描述
Product Overview
The TDK-Lambda CCG15-48-12S is a 15 W isolated module DC-DC converter that provides a single 12 V output from an 18 V to 76 V input range. The through-hole 6-DIP module delivers up to 1.3 A and is specified for operation from -40°C to 85°C. It includes adjustable output, remote on/off, overcurrent protection, and 1.5 kV isolation, supporting board-level power conversion in commercial information technology equipment.
Key Features
- Isolated module DC-DC converter with one 12 V output and 15 W maximum power.
- Input voltage range of 18 V to 76 V supports wide-range DC bus operation.
- Output current capability of 1.3 A at 12 V for single-rail loads.
- 1.5 kV isolation between input and output for galvanic separation.
- Adjustable output, remote on/off, and overcurrent protection features.
- Enable control is active low for sequencing or system disable.
- Through-hole 6-DIP module measures 25.4 mm x 25.4 mm x 9.9 mm.
- Efficiency is specified at 88%.
Applications
- Board-level 12 V power conversion for commercial information technology equipment.
- Isolated auxiliary supply for embedded controllers, communication boards, or sensor modules.
- Regulated 12 V rail generation from higher-voltage DC buses in board assemblies.
Design & Procurement Notes
Designers should confirm that the 18 V to 76 V input range, 12 V output, and 1.3 A load current match the system power budget. The active-low enable and remote on/off functions can be used for controlled start-up or system-level disable, while overcurrent protection provides output fault protection. The 1.5 kV isolation rating, 6-DIP through-hole package, and 9.9 mm height affect board layout and isolation planning. Approvals include IEC, UL, CSA, EN, CE, and UKCA, and the standard number is 62368-1.
