I6A24014A033V-001-R

Product Overview

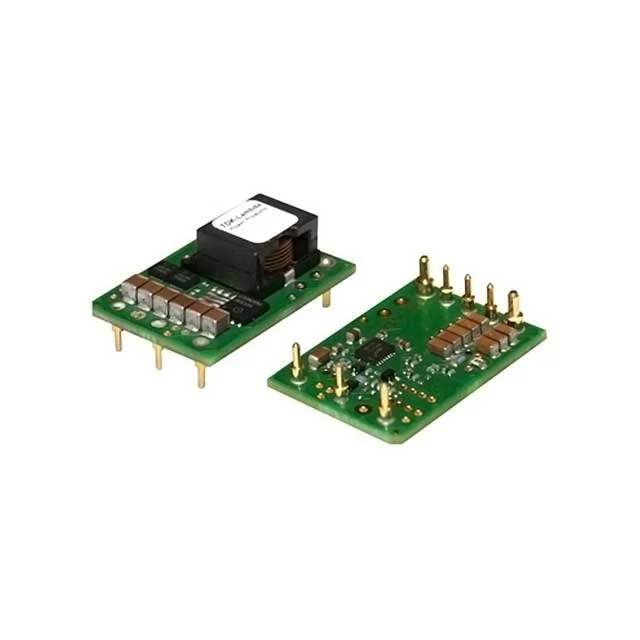

The TDK-Lambda I6A24014A033V-001-R is a non-isolated point-of-load DC DC converter module intended for board-mount power distribution in commercial information technology equipment. It accepts an input from 9 V to 40 V and provides a single output range from 3.3 V to 24 V at up to 14 A, with a rated power of 250 W. The module uses a through-hole sixteenth-brick package measuring 1.30 in L x 0.90 in W x 0.50 in H (33.0 mm x 22.9 mm x 12.7 mm). It supports remote on/off control, OCP, OTP, and SCP, and is specified for operation from -40°C to 125°C.

Key Features

• Non-isolated PoL module with one output
• Input voltage range: 9 V to 40 V
• Output voltage range: 3.3 V to 24 V, up to 14 A
• Rated power: 250 W
• Through-hole sixteenth-brick package: 1.30 in L x 0.90 in W x 0.50 in H (33.0 mm x 22.9 mm x 12.7 mm)
• Remote on/off control with active-low enable
• Protection features: OCP, OTP, and SCP
• Operating temperature range: -40°C to 125°C
• Efficiency: 98%

Applications

• Commercial information technology equipment requiring board-level point-of-load power conversion.
• Single-output local power delivery to logic, memory, or peripheral loads within the 3.3 V to 24 V output range.
• Remote enable control or power sequencing in systems using an active-low enable signal.

Design & Procurement Notes

For board design, confirm that the through-hole sixteenth-brick footprint and 12.7 mm height fit the available PCB area and enclosure clearance. The 9 V to 40 V input range and 3.3 V to 24 V single output range should be matched to the system input rail and load requirements, with output current limited to 14 A and total output power not exceeding 250 W. The active-low enable control supports remote on/off operation, so the upstream controller must provide a compatible control signal. Thermal management should account for the specified -40°C to 125°C operating range and the 98% efficiency, while the OCP, OTP, and SCP features are provided for fault conditions.
