LFE2M100E-5FN1152C

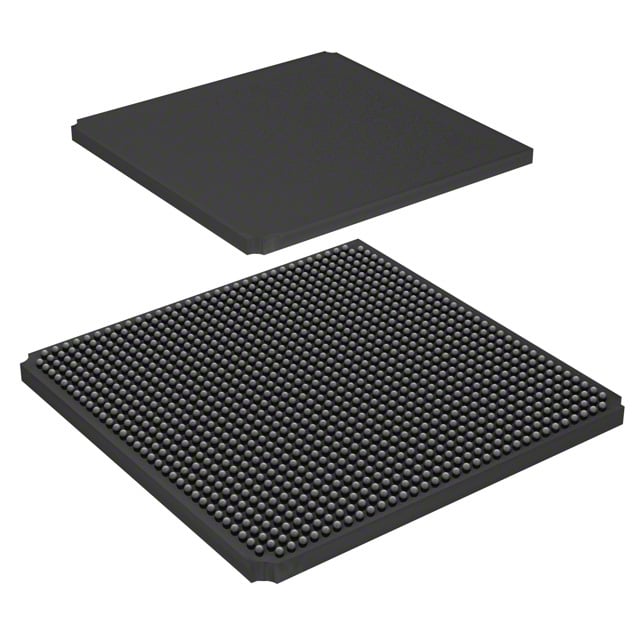

IC FPGA 520 I/O 1152FBGA
- 產品分類
- FPGA - 現場可程式化閘陣列
- 封裝
- 1152-BBGA
- 庫存
- 1,433 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Lattice Semiconductor Corporation |
|---|---|
| 產品分類 | FPGA - 現場可程式化閘陣列 |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package | Tray |
| Product status | Not For New Designs |
| Series | ECP2M |
| Supplier Device Package | 1152-FPBGA (35x35) |
| Voltage - Supply | 1.14V ~ 1.26V |
| 資料表 | 查看資料表PDF |
採購概覽
LFE2M100E-5FN1152C 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LFE2M100E-5FN1152C 詳細描述
Product Overview
The LFE2M100E-5FN1152C from Lattice Semiconductor Corporation is an ECP2M field programmable gate array supplied in a 1152-FPBGA (35x35) surface-mount package, also described as 1152-BBGA. The device provides 520 I/O, 95,000 logic elements or cells, 11,875 LABs or CLBs, and 5,435,392 total RAM bits. Its specified supply voltage range is 1.14 V to 1.26 V, and the maximum junction temperature rating is 85 °C, with a minimum operating junction temperature of 0 °C. These parameters support board-level FPGA integration in systems that require programmable logic, distributed on-chip memory, and a high I/O count in a fine-pitch BGA footprint.
Key Features
- 520 I/O for system connectivity and programmable logic interfacing
- 95,000 logic elements or cells for configurable digital logic
- 11,875 LABs or CLBs for fabric resource planning
- 5,435,392 total RAM bits for on-chip buffering and lookup structures
- 1.14 V to 1.26 V supply voltage range
- Surface-mount 1152-FPBGA (35x35) package, described as 1152-BBGA
- Operating junction temperature range of 0 °C to 85 °C
- ECP2M FPGA architecture from Lattice Semiconductor Corporation
Applications
- Programmable logic control in embedded system boards
- High-I/O interface aggregation for custom digital subsystems
- On-chip buffering and lookup tables in configurable datapaths
- Surface-mount FPGA integration in 35 mm by 35 mm BGA board layouts
Design & Procurement Notes
Design planning should account for the 1152-FPBGA (35x35) surface-mount footprint, 520 I/O, and the 1.14 V to 1.26 V supply range when defining power delivery, pin assignment, and PCB fan-out. The 95,000 logic elements or cells, 11,875 LABs or CLBs, and 5,435,392 total RAM bits provide the fabric and memory resources needed to size a configuration before layout. The 0 °C to 85 °C junction temperature rating should be used with thermal analysis for the selected board environment. Procurement notes should retain the exact manufacturer part number, LFE2M100E-5FN1152C, because package and device package descriptions include 1152-BBGA and 1152-FPBGA (35x35).
