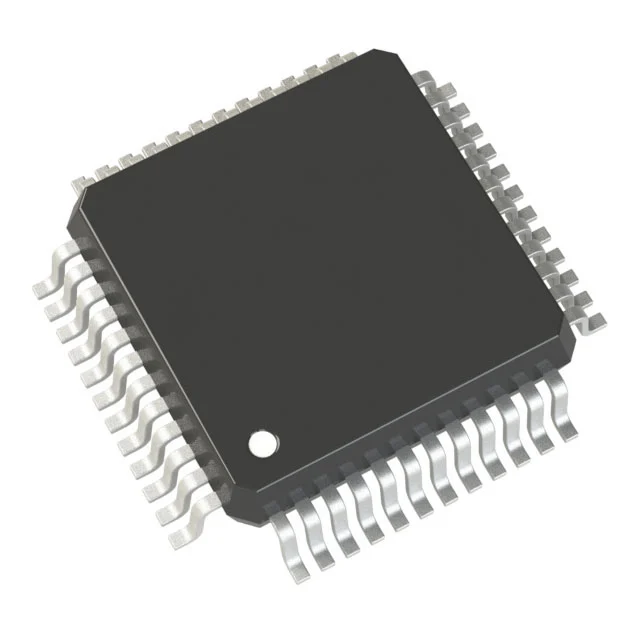

S9S12G128AMLF
IC MCU 16BIT 128KB FLASH 48LQFP
- 製造商
- NXP USA Inc.
- 產品分類
- 微控制器 - MCU
- 封裝
- 48-LQFP
- 庫存
- 12,400 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | NXP USA Inc. |
|---|---|
| 產品分類 | 微控制器 - MCU |
| Connectivity | CANbus, IrDA, LINbus, SCI, SPI |
| Core Processor | 12V1 |
| Core Size | 16-Bit |
| Data Converters | A/D 12x10b |
| EEPROM Size | 4K x 8 |
| Mounting Type | Surface Mount |
| Number of I/O | 40 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Package | Tray |
| Peripherals | LVD, POR, PWM, WDT |
| Product status | Active |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | Flash |
| RAM Size | 8K x 8 |
| Series | HCS12 |
| Speed | 25MHz |
| Supplier Device Package | 48-LQFP (7x7) |
| Voltage - Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| 資料表 | 查看資料表PDF |
採購概覽
S9S12G128AMLF 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
S9S12G128AMLF 詳細描述
Product Overview
The S9S12G128AMLF from NXP USA Inc. is a HCS12-series 16-bit microcontroller built around a 12V1 core and operating at 25MHz. It provides 128KB (128K x 8) FLASH program memory, 8K x 8 RAM, and 4K x 8 EEPROM in a 48-LQFP (7x7) surface-mount package. The device supports 40 I/O connections, 12-channel 10-bit analog-to-digital conversion, and internal oscillator operation. Its supply range is 3.13V to 5.5V, with an operating temperature range of -40°C to 125°C (TA).
Key Features
- 16-bit HCS12 microcontroller using a 12V1 core with a 25MHz speed rating.
- 128KB (128K x 8) FLASH program memory, 8K x 8 RAM, and 4K x 8 EEPROM.
- 40 I/O connections and 12-channel 10-bit analog-to-digital conversion.
- Peripherals include LVD, POR, PWM, and WDT.
- Communication interfaces include CANbus, LINbus, SCI, SPI, and IrDA.
- 3.13V to 5.5V supply range, internal oscillator, and -40°C to 125°C (TA) operating temperature.
- 48-LQFP (7x7) surface-mount package.
Applications
- Embedded control modules using 16-bit processing, FLASH program memory, and on-chip EEPROM.
- Analog sensing and actuator drive subsystems using 12-channel 10-bit A/D inputs and PWM outputs.
- Communication-oriented embedded assemblies using SCI, SPI, CANbus, LINbus, or IrDA links.
- Compact surface-mount control boards operating from a 3.13V to 5.5V supply and using 40 I/O connections.
- Embedded designs operating from -40°C to 125°C (TA).
Design & Procurement Notes
Design and procurement considerations should focus on the fixed 48-LQFP (7x7) surface-mount footprint, 40 I/O connections, and 3.13V to 5.5V supply range. The internal oscillator type and 25MHz speed rating should be considered during clocking design. The 128KB FLASH, 8K x 8 RAM, and 4K x 8 EEPROM define the available program, working memory, and EEPROM storage. The integrated CANbus, LINbus, SCI, SPI, IrDA, PWM, A/D, LVD, POR, and WDT functions should be evaluated against the required system architecture. The -40°C to 125°C (TA) operating range should be verified against the final board thermal environment.
