ICE40LP4K-CM81TR1K

Product Overview

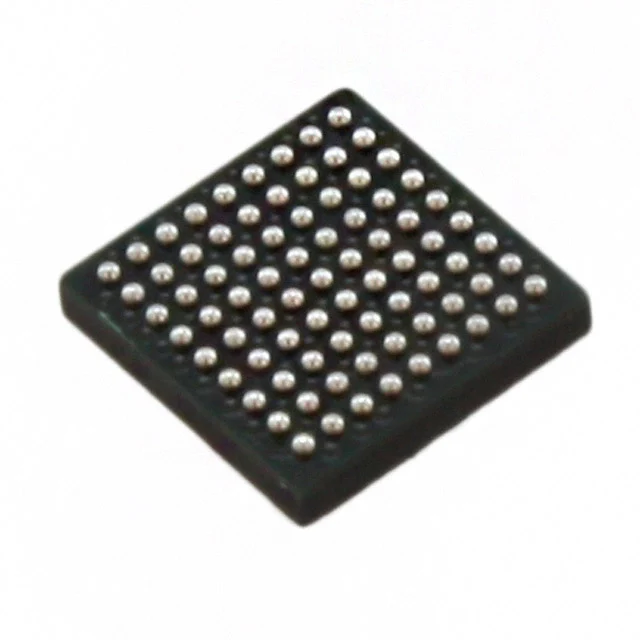

ICE40LP4K-CM81TR1K is an iCE40 LP field programmable gate array (FPGA) from Lattice Semiconductor Corporation, implemented in a surface-mount 81-UCBGA (4x4) package. The device provides 3520 logic elements or cells, 440 LABs or CLBs, 81920 total RAM bits, and 63 I/O pins. The supply voltage range is 1.14V to 1.26V, and the operating junction temperature range is -40°C to 100°C.

Key Features

• 3520 logic elements or cells
• 440 LABs or CLBs
• 81920 total RAM bits
• 63 I/O pins
• 1.14V to 1.26V supply voltage range
• -40°C to 100°C operating junction temperature range
• 81-VFBGA package/case
• 81-UCBGA (4x4) package
• Surface-mount mounting type

Applications

• Embedded control logic implementation
• Sensor data aggregation
• Peripheral expansion
• Timing and sequencing control
• Custom digital logic interfacing

Design & Procurement Notes
