ICE40LP1K-CM121TR1K

Product Overview

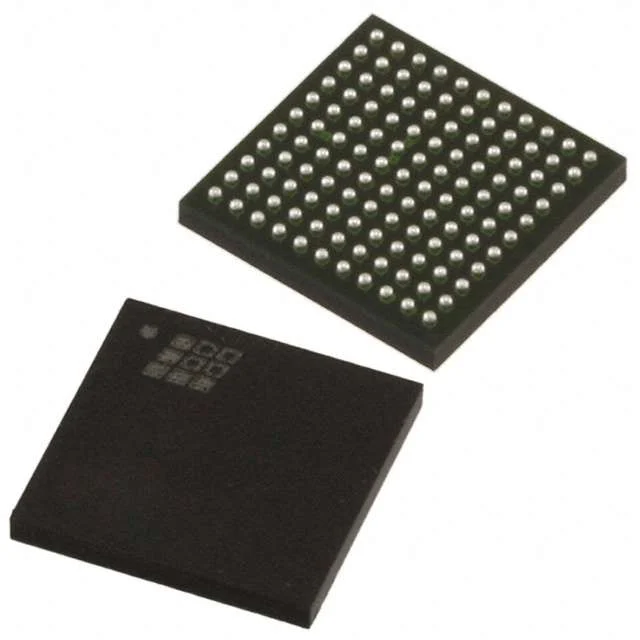

The ICE40LP1K-CM121TR1K from Lattice Semiconductor Corporation is an iCE40™ LP field programmable gate array (FPGA) integrated circuit. It provides 95 I/O, 1280 logic elements/cells, 160 LABs/CLBs, and 65536 total RAM bits in a 121-VFBGA, CSBGA package, with a 121-UCBGA (5x5) device package. The device is surface mount and specified for a 1.14 V to 1.26 V supply range and an operating junction temperature range of -40°C to 100°C. These resources support flexible digital logic implementation within the stated package and supply constraints.

Key Features

• 95 I/O for interface and control logic
• 1280 logic elements/cells and 160 LABs/CLBs
• 65536 total RAM bits for on-device memory resources
• 1.14 V to 1.26 V supply range
• Surface mount in 121-VFBGA, CSBGA package
• Operating junction temperature range -40°C to 100°C

Applications

• Programmable glue logic and interface adaptation in embedded control boards
• Signal routing and control logic between digital subsystems
• Custom peripheral expansion using the available 95 I/O resources
• Compact surface-mount logic assemblies operating within the specified junction temperature range

Design & Procurement Notes

Designs using the ICE40LP1K-CM121TR1K should account for the 1.14 V to 1.26 V supply range, the 95 I/O count, and the 121-VFBGA, CSBGA surface-mount footprint. The 160 LABs/CLBs, 1280 logic elements/cells, and 65536 total RAM bits define the available logic and memory resources, while the -40°C to 100°C junction temperature range should be considered in thermal design. Procurement considerations include verifying board layout compatibility with the 121-UCBGA (5x5) package and confirming that the selected I/O and RAM resources match the planned logic configuration.
