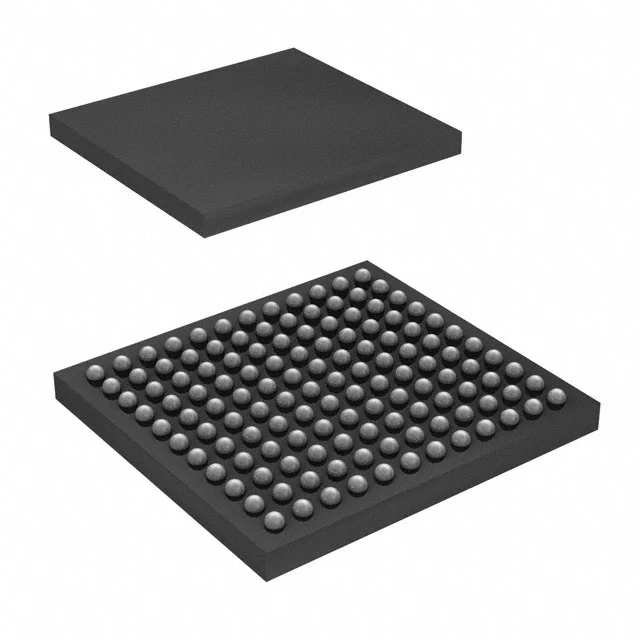

ICE40HX4K-CB132
IC FPGA 95 I/O 132CSBGA
- 產品分類
- FPGA - 現場可程式化閘陣列
- 封裝
- 132-LFBGA, CSPBGA
- 庫存
- 1,297 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Lattice Semiconductor Corporation |
|---|---|
| 產品分類 | FPGA - 現場可程式化閘陣列 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Package | Tray |
| Product status | Active |
| Series | iCE40™ HX |
| Supplier Device Package | 132-CSBGA (8x8) |
| Voltage - Supply | 1.14V ~ 1.26V |
| 資料表 | 查看資料表PDF |
採購概覽
ICE40HX4K-CB132 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
ICE40HX4K-CB132 詳細描述
Product Overview
The ICE40HX4K-CB132 from Lattice Semiconductor Corporation is an iCE40 HX field programmable gate array intended for embedded digital logic implementations. It provides 3520 logic elements/cells, 440 LABs/CLBs, 81920 total RAM bits, and 95 I/O in a 132-LFBGA, CSPBGA package. The device is surface mount and operates from a 1.14V to 1.26V supply over a junction temperature range of -40°C to 100°C.
Key Features
- iCE40 HX FPGA architecture with 3520 logic elements/cells and 440 LABs/CLBs.
- Provides 95 I/O for configurable embedded interface and control logic.
- Includes 81920 total RAM bits for on-device data storage.
- Operates from a 1.14V to 1.26V supply.
- Surface-mount 132-LFBGA, CSPBGA package and 132-CSBGA (8x8) package designation.
- Rated for -40°C to 100°C junction temperature operation.
Applications
- Configurable embedded control logic in systems requiring programmable digital functions.
- Aggregation and routing of multiple sensor or peripheral signals through available I/O.
- Custom digital interface bridging between subsystems.
- On-device buffering or lookup tables for data sets using available RAM bits.
Design & Procurement Notes
For board layout, consider the surface-mount 132-LFBGA, CSPBGA package and the 132-CSBGA (8x8) package designation. Review the 95 I/O count when planning external connections. Confirm that the system power supply maintains 1.14V to 1.26V and that thermal design keeps the junction temperature within -40°C to 100°C. Match logic, RAM, and I/O requirements to 3520 logic elements/cells, 440 LABs/CLBs, 81920 total RAM bits, and 95 I/O. Use the iCE40 HX family designation for documentation consistency.
