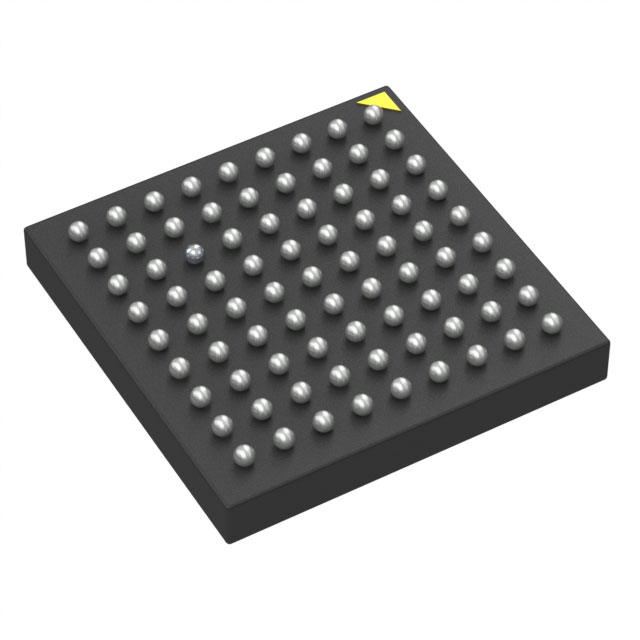

ADUCM410BBCZ-RL7
IC MCU 32BIT 1MB FLASH 81CSPBGA
- 產品分類
- 微控制器 - MCU
- 封裝
- 81-VFBGA, CSPBGA
- 庫存
- 5,295 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Analog Devices Inc. |
|---|---|
| 產品分類 | 微控制器 - MCU |
| Connectivity | I2C, SPI, UART/USART |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit Single-Core |
| Data Converters | A/D 16x16b SAR; D/A 12x12b |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Oscillator Type | Internal |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Peripherals | DMA, POR, PWM, WDT |
| Product status | Active |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | Flash |
| RAM Size | 128K x 8 |
| Series | ADuCM |
| Speed | 160MHz |
| Supplier Device Package | 81-CSPBGA (5x5) |
| Voltage - Supply (Vcc/Vdd) | 2.85V ~ 3.6V |
| 資料表 | 查看資料表PDF |
採購概覽
ADUCM410BBCZ-RL7 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
ADUCM410BBCZ-RL7 詳細描述
Product Overview
The ADUCM410BBCZ-RL7 is an Analog Devices Inc. microcontroller built around an ARM Cortex-M33 32-bit core with a 160 MHz operating speed. It provides 1 MB (1M x 8) FLASH program memory and 128K x 8 RAM for embedded firmware and data handling. The device integrates I2C, SPI, and UART/USART communication interfaces, along with DMA, POR, PWM, and WDT peripherals. Analog conversion resources include 16 x 16-bit SAR A/D converters and 12 x 12-bit D/A converters. It operates from a 2.85 V to 3.6 V supply and uses an internal oscillator. The part uses an 81-CSPBGA (5 x 5) surface-mount package and has an operating temperature range of -40°C to 105°C.
Key Features
- ARM Cortex-M33 32-bit core with 160 MHz operating speed
- 1 MB (1M x 8) FLASH program memory and 128K x 8 RAM
- I2C, SPI, and UART/USART communication interfaces
- Integrated DMA, POR, PWM, and WDT peripherals
- 16 x 16-bit SAR A/D converters and 12 x 12-bit D/A converters
- 2.85 V to 3.6 V supply voltage and -40°C to 105°C operating temperature range
- 81-CSPBGA (5 x 5) surface-mount package with internal oscillator
Applications
- Embedded control subsystems that require 32-bit processing, serial communication, and analog measurement
- Sensor and signal-acquisition nodes using the integrated SAR A/D and D/A converters
- Equipment and instrumentation designs that use I2C, SPI, or UART/USART for local communication
- Control and timing functions that use PWM and WDT peripherals
Design & Procurement Notes
Designers should confirm that the 81-CSPBGA (5 x 5) surface-mount package fits the PCB footprint and assembly process. The 2.85 V to 3.6 V supply range requires a regulated rail within that window, and the -40°C to 105°C operating range should be checked against the system environment. The 1 MB FLASH and 128K x 8 RAM sizes should be evaluated against firmware, data buffers, and communication stack requirements. The I2C, SPI, and UART/USART interfaces should be mapped to the required external devices, while the A/D and D/A converter counts and resolutions should be reviewed against the analog input and output needs. The internal oscillator should be assessed for timing accuracy, and POR and WDT should be considered in the reset and fault-handling architecture.
