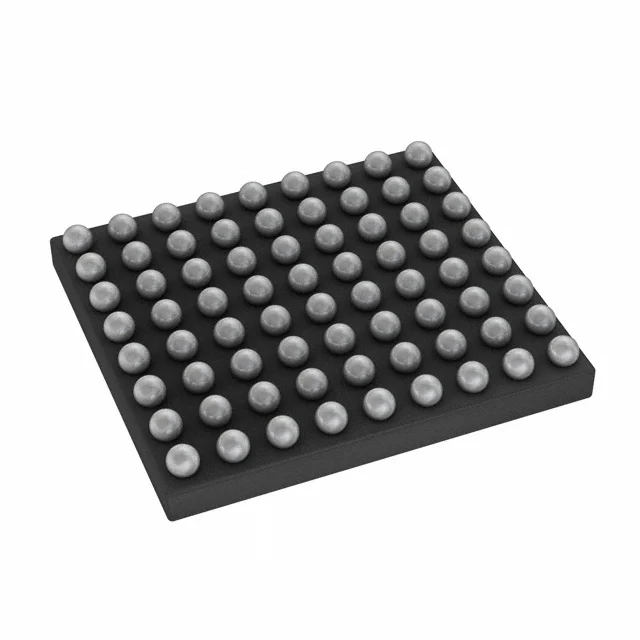

ADUCM4050BCBZ-R7
IC MCU 32BIT 512KB FLASH 72WLCSP
- 產品分類
- 微控制器 - MCU
- 封裝
- 72-UFBGA, WLCSP
- 庫存
- 2,648 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Analog Devices Inc. |
|---|---|
| 產品分類 | 微控制器 - MCU |
| Connectivity | I2C, SPI, UART/USART |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Data Converters | A/D 8x12b SAR |
| Mounting Type | Surface Mount |
| Number of I/O | 51 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Peripherals | DMA, PWM, WDT |
| Product status | Active |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | Flash |
| RAM Size | 128K x 8 |
| Series | ADuCM |
| Speed | 52MHz |
| Supplier Device Package | 72-WLCSP (3.57x3.16) |
| Voltage - Supply (Vcc/Vdd) | 1.74V ~ 3.6V |
| 資料表 | 查看資料表PDF |
採購概覽
ADUCM4050BCBZ-R7 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
ADUCM4050BCBZ-R7 詳細描述
Product Overview
The ADUCM4050BCBZ-R7 is a 32-bit microcontroller from Analog Devices Inc. built around an ARM Cortex-M4F core and operating at 52 MHz. It provides 512 KB (512K x 8) of FLASH program memory and 128K x 8 of RAM, with 51 I/O pins available for embedded control and data acquisition functions. The device supports I2C, SPI, and UART/USART connectivity, includes DMA, PWM, and WDT peripherals, and integrates eight 12-bit SAR A/D converters. It operates from a 1.74 V to 3.6 V supply, uses an external oscillator, and is specified for -40°C to 85°C ambient temperature in a 72-UFBGA, WLCSP package (3.57x3.16) for surface mounting.
Key Features
- ARM Cortex-M4F 32-bit core operating at 52 MHz.
- 512 KB (512K x 8) FLASH program memory and 128K x 8 RAM.
- 51 I/O pins for interfacing external sensors, actuators, and peripherals.
- I2C, SPI, and UART/USART communication interfaces.
- DMA, PWM, and WDT peripherals.
- Eight 12-bit SAR analog-to-digital converters.
- 1.74 V to 3.6 V supply range and -40°C to 85°C operating temperature.
- 72-UFBGA, WLCSP (3.57x3.16) surface-mount package.
Applications
- Embedded sensor nodes that use the integrated 12-bit SAR ADC channels to acquire analog measurements.
- Motor and power control subsystems that use PWM outputs to drive actuators.
- Control boards that use I2C, SPI, and UART/USART links to communicate with host controllers or peripheral devices.
- Compact embedded devices that operate from a 1.74 V to 3.6 V supply.
Design & Procurement Notes
Design considerations should account for the external oscillator requirement. The 72-UFBGA, WLCSP (3.57x3.16) package is surface-mount, so board layout and assembly should accommodate the WLCSP form. Supply-range planning should support 1.74 V to 3.6 V operation, and thermal layout should be reviewed for -40°C to 85°C ambient conditions. For procurement, confirm that the eight 12-bit SAR ADC channels, 51 I/O pins, I2C/SPI/UART/USART interfaces, DMA, PWM, WDT, 512 KB FLASH, and 128K x 8 RAM resources match the intended firmware, signal-processing, and peripheral requirements.
