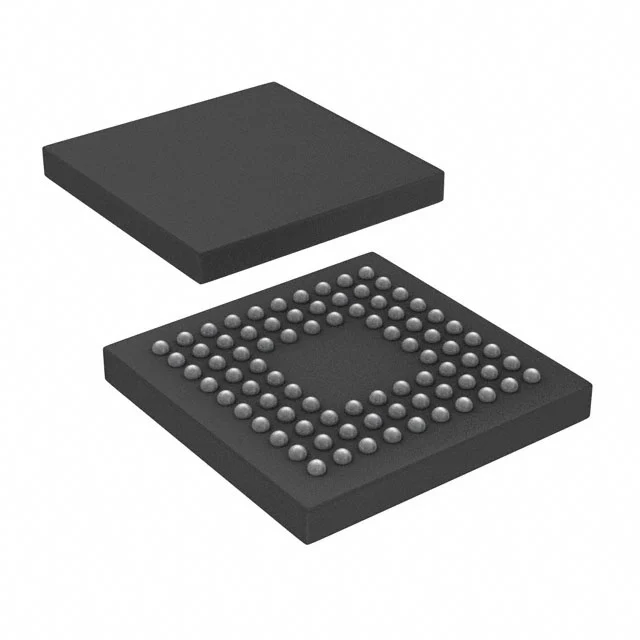

ADUCM320BBCZ-RL
IC MCU 32BIT 256KB FLSH 96CSPBGA
- 產品分類
- 微控制器 - MCU
- 封裝
- 96-TFBGA, CSPBGA
- 庫存
- 4,997 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Analog Devices Inc. |
|---|---|
| 產品分類 | 微控制器 - MCU |
| Connectivity | I2C, SPI, UART/USART |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Data Converters | A/D 16x14b; D/A 12x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 40 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Peripherals | DMA, POR, PWM, WDT |
| Product status | Active |
| Program Memory Size | 256KB (128K x 8 x 2) |
| Program Memory Type | Flash |
| RAM Size | 32K x 8 |
| Series | ADuCM |
| Speed | 80MHz |
| Supplier Device Package | 96-CSPBGA (6x6) |
| Voltage - Supply (Vcc/Vdd) | 2.9V ~ 3.6V |
| 資料表 | 查看資料表PDF |
採購概覽
ADUCM320BBCZ-RL 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
ADUCM320BBCZ-RL 詳細描述
Product Overview
ADUCM320BBCZ-RL is an Analog Devices Inc. ADuCM microcontroller for embedded control designs that require a 32-bit ARM Cortex-M3 core with 80 MHz operation, 256 KB FLASH program memory, and 32K x 8 RAM. The device is housed in a 96-CSPBGA (6 x 6) surface-mount package and integrates 40 I/O pins, an internal oscillator, and data converters: 16 x 14-bit ADC and 12 x 12-bit DAC. Communication support includes I2C, SPI, and UART/USART interfaces, while peripherals include DMA, POR, PWM, and WDT. The supply voltage range is 2.9 V to 3.6 V, and the operating temperature range is -40°C to 105°C (TA).
Key Features
- ARM Cortex-M3 32-bit core operating at 80 MHz
- 256 KB FLASH program memory organized as 128K x 8 x 2
- 32K x 8 RAM
- 40 I/O pins
- I2C, SPI, and UART/USART serial interfaces
- 16 x 14-bit ADC and 12 x 12-bit DAC
- DMA, POR, PWM, and WDT peripherals
- 2.9 V to 3.6 V supply
- -40°C to 105°C (TA) operating temperature
- 96-CSPBGA (6 x 6) surface-mount package
Applications
- Embedded sensor measurement and control subsystems using integrated ADC and DAC channels, PWM output, and serial communication.
- Compact controller modules for equipment requiring 40 I/O pins, internal oscillator, and FLASH program storage.
- Mixed-signal control hardware operating from a 2.9 V to 3.6 V supply within -40°C to 105°C (TA).
Design & Procurement Notes
Design teams should verify that the 96-CSPBGA (6 x 6) surface-mount package fits the PCB footprint and assembly process, and that the 2.9 V to 3.6 V supply matches the system power architecture. The 256 KB FLASH and 32K x 8 RAM sizes should be checked against firmware, buffering, and data-conversion requirements. The 16 x 14-bit ADC and 12 x 12-bit DAC channels, 40 I/O pins, and I2C, SPI, and UART/USART interfaces define the board-level signal and communication plan. The -40°C to 105°C (TA) range supports design margin for ambient temperature, while POR and WDT peripherals can be used for power-up sequencing and software recovery.
