GT30J122A

Product Overview

GT30J122A is based on Toshiba's GT30J122A silicon N-channel IGBT designed specifically for soft-switching power applications. Featuring a 600V collector-emitter voltage rating, 30A continuous collector current, low 1.7V typical saturation voltage and fast switching performance, the device is optimized for current-resonant inverter and partial-switching PFC circuits. Its TO-3P(N) through-hole package provides reliable thermal and electrical performance for appliance and industrial power conversion systems.

Key Features

• Manufacturer: Toshiba Electronic Devices & Storage

• Part Number: GT30J122A

• Base Part Number: GT30J122A

• Product Type: Discrete IGBT

• Transistor Type: Silicon N-Channel IGBT

• IGBT Generation: 4th Generation

• Operating Mode: Enhancement Mode

• Number of Circuits: 1

• Collector-Emitter Voltage (VCES): 600V

• Continuous Collector Current (IC): 30A

• Collector Current Class: 30A

• Typical Collector-Emitter Saturation Voltage: 1.7V at IC = 50A

• Typical Fall Time (tf): 0.20µs at IC = 50A

• Switching Characteristic: High-Speed Soft Switching

• Built-In Diode: No

• Primary Application: Current-Resonant Inverter Switching

• Secondary Application: Partial-Switching Power Factor Correction

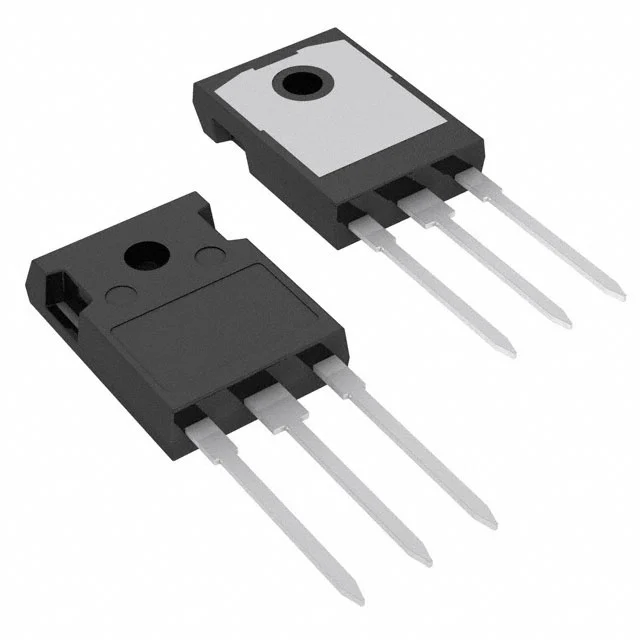

• Package Type: TO-3P(N)

• JEITA Package: SC-65

• Pin Count: 3

• Pin 1: Gate

• Pin 2: Collector

• Pin 3: Emitter

• Mounting Type: Through-Hole

• Package Dimensions: 15.5mm × 20.0mm × 4.5mm

• Key Feature: Low Saturation Voltage

• Commercial Production Start: June 2010

• RoHS Status: RoHS-Compatible Versions Available

• Product Status: Full Production

• Recommended New-Design Product: GT30J65MRB

• Ordering Note: Buyers should confirm the exact GT30J122A suffix or marking, electrical characteristics, package requirements and the latest Toshiba datasheet before production use.

Applications

GT30J122A_1 is intended primarily for current-resonant inverter switching and partial-switching power factor correction applications. Typical uses include air-conditioning power stages, resonant power converters, appliance inverter circuits, switching power supplies and other systems requiring efficient 600V soft-switching performance.

Quality & Sourcing

Antrex Electronics can support GT30J122A sourcing with stock availability checks, RFQ quotation, package and suffix confirmation, date code review and shipment arrangement. For project-based purchasing, buyers can provide quantity, target price, required delivery date, packaging requirements and application details for faster quotation support.

For quality control, Antrex Electronics can help arrange product photos, label verification, visual inspection and third-party testing support when required. Appliance manufacturers, inverter manufacturers, power supply companies, repair centers and electronic component buyers are welcome to submit BOM lists or hard-to-find IGBT requirements for sourcing assistance.
