TPS25740RGER

Product Overview

TPS25740RGER from Texas Instruments is a USB Type-C controller power management IC described as a PD controller in a 24-VQFN package. It is specified for a supply voltage range of 4.65V to 25V, with an operating temperature range of -40°C to 125°C. The product is classified as a specialized power management IC. The device uses a surface-mount 24-VFQFN exposed-pad package with a 4 mm by 4 mm body, for USB Type-C system designs.

Key Features

• USB Type-C controller PMIC with PD controller function.
• Supply voltage range: 4.65V to 25V.
• Operating temperature range: -40°C to 125°C.

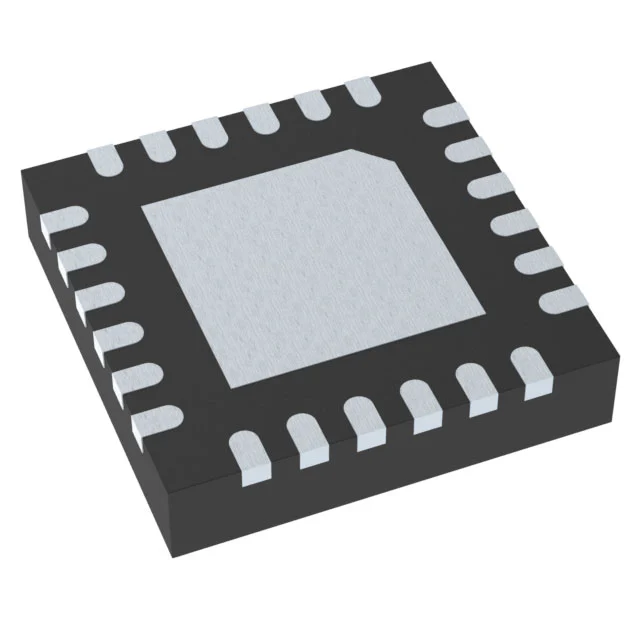

• Surface-mount package: 24-VFQFN exposed pad, 24-VQFN (4x4).
• Intended application: USB Type-C controller.

Applications

• USB Type-C port control in laptops, tablets, and mobile devices.
• USB Type-C power delivery control for docks and hubs.
• USB Type-C port control in battery-powered equipment.

Design & Procurement Notes

Design considerations include the 4.65V to 25V supply range, the -40°C to 125°C operating temperature range, and the surface-mount 24-VFQFN exposed-pad footprint. The 4 mm by 4 mm package requires attention to pad geometry, exposed-pad connection, and placement density during PCB layout. System designers should verify that the USB Type-C port circuitry, power rail, and thermal environment remain within the specified supply and temperature ranges. Procurement notes should focus on the exact part number TPS25740RGER, the Texas Instruments manufacturer, and the 24-VQFN (4x4) device package to avoid package or manufacturer substitution.
