ETX1506

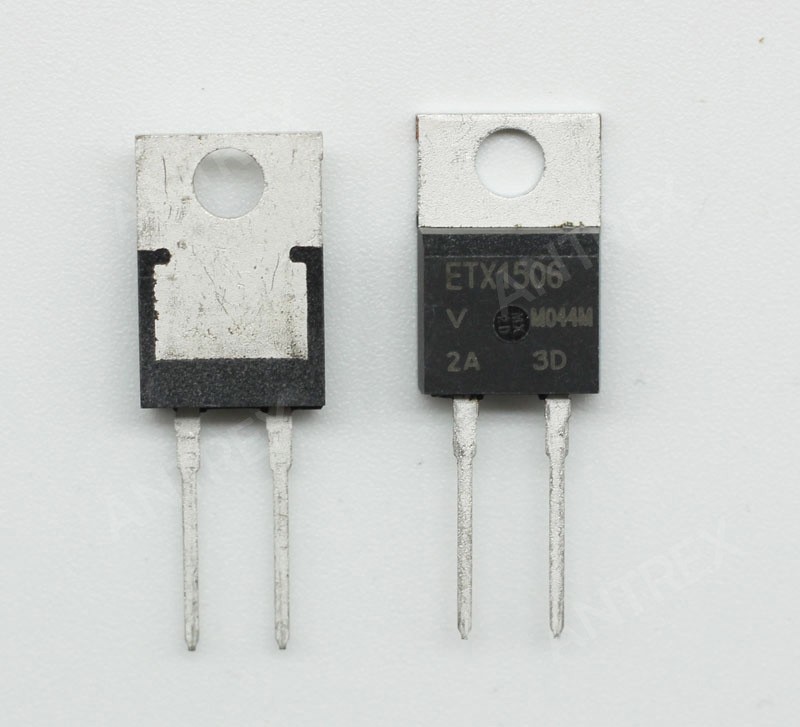

The ETX1506 is a Vishay FRED Pt® hyperfast rectifier diode featuring 15A current capability, 600V voltage rating, and ultra-fast recovery performance for power applications
Quick Answer: ETX1506 is a Vishay Semiconductors FRED Pt® hyperfast recovery rectifier designed for high-frequency power conversion applications.
- Manufacturer
- Vishay General Semiconductor - Diodes Division
- Product Category
- Rectifiers
- Package
- TO-220-2
- Stock
- 1,500 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Vishay General Semiconductor - Diodes Division |
|---|---|
| Product Category | Rectifiers |
| Applications | PFC Circuits, SMPS, Inverters, UPS Systems |
| Average Forward Current | 15 A |
| Configuration | Single Diode |
| Diode Polarity | Single Anode / Cathode |
| Forward Surge Current | High Surge Capability |
| Forward Voltage Drop | 3.4 V Maximum |
| Junction Temperature | +175°C Maximum |
| Leakage Current | Low Reverse Leakage Current |
| Manufacturer | Vishay Semiconductors |
| Model | ETX1506 |
| Mounting Type | Through Hole |
| Package Type | TO-220AC |
| Product Type | Hyperfast Recovery Rectifier Diode |
| Reliability Standard | JEDEC Qualified |
| Repetitive Peak Reverse Voltage | 600 V |
| Reverse Recovery Charge | Low Qrr Design |
| Reverse Recovery Time | 20 ns Typical |
| RoHS Compliance | Lead-Free and Halogen-Free Versions Available |
| Series | FRED Pt® Series |
| Technology | Platinum Doped Fast Recovery Technology |
| Datasheet | View Datasheet PDF |
Procurement Snapshot
Key supply and purchasing information for ETX1506.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for ETX1506
Product Overview
ETX1506 is a Vishay Semiconductors FRED Pt® hyperfast recovery rectifier designed for high-frequency power conversion applications. The device features a 600V reverse voltage rating, 15A average forward current capability and extremely fast 20ns reverse recovery time. With low forward voltage drop, low leakage current and high-temperature operation up to +175°C, it is suitable for PFC circuits, switching power supplies, inverters, UPS systems and other high-efficiency power electronics applications.
Key Features
Manufacturer: Vishay Semiconductors
Part Number: ETX1506 / VS-ETX1506-M3
Device Type: Hyperfast Recovery Rectifier Diode
Product Category: Power Semiconductor Diode
Series: FRED Pt® Series
Diode Configuration: Single Rectifier
Maximum Reverse Voltage: 600V
Average Forward Current: 15A
Forward Voltage Drop: 3.4V Maximum at 15A
Reverse Recovery Time: 20ns Typical
Reverse Recovery Technology: Hyperfast Recovery
Reverse Leakage Current: 36µA Maximum at 600V
Junction Temperature Range: -65°C to +175°C
Forward Surge Current Capability: High Surge Current Handling
Construction Technology: Planar Structure with Platinum Doping Lifetime Control
Package Type: TO-220AC
Mounting Type: Through Hole
Pin Configuration: 2-Pin Power Package
RoHS Status: RoHS Compliant / Lead-Free Versions Available
Qualification: Designed and Qualified According to JEDEC Standards
Typical Applications: PFC Boost Stages, AC/DC Power Supplies, Inverters, UPS Systems and Freewheeling Circuits
Ordering / Packaging Note: Buyers should verify exact suffix, package style, lead configuration, environmental requirements and electrical parameters before production use.
Applications
ETX1506 is designed for high-frequency switching power applications requiring fast recovery performance and low power loss. Typical applications include AC/DC converters, power factor correction circuits, inverter systems, industrial power supplies, UPS equipment, motor drive systems, welding equipment and renewable energy power conversion platforms.
Quality & Sourcing
Antrex Electronics can support ETX1506 sourcing with stock availability checks, RFQ quotation, manufacturer verification, package confirmation, date code review and shipment arrangement. For production or repair projects, buyers can provide quantity requirements, acceptable date codes, packaging requirements and application information for faster quotation support.
For quality control, Antrex Electronics can help arrange product photos, marking review, visual inspection, electrical testing and third-party verification when required. OEMs, EMS providers, industrial equipment manufacturers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find semiconductor requests for sourcing assistance.
