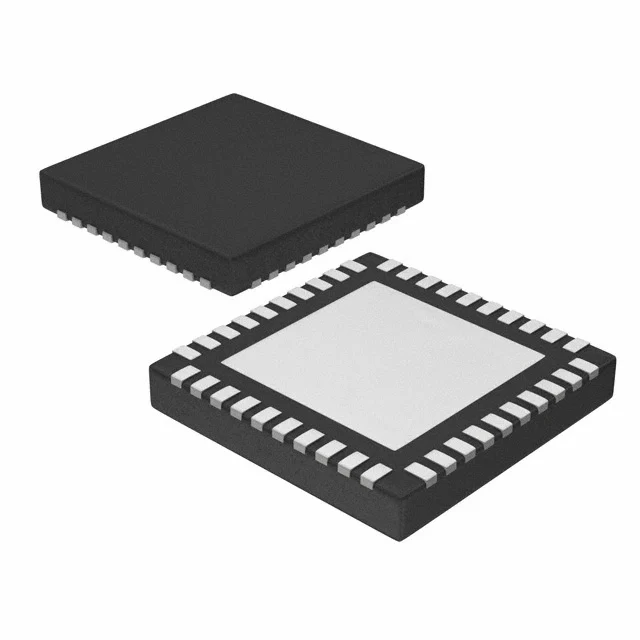

BQ500511RHAR
IC WIRELESS TRANSMITTER 40VQFN
Quick Answer: The BQ500511RHAR from Texas Instruments is a wireless power transmitter PMIC for surface-mount power-management designs.
- Manufacturer
- Texas Instruments
- Product Category
- Specialized Power Management ICs (PMICs)
- Package
- 40-VFQFN Exposed Pad
- Stock
- 2,500 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Texas Instruments |
|---|---|
| Product Category | Specialized Power Management ICs (PMICs) |
| Applications | Wireless Power Transmitter |
| Current - Supply | 3.45mA |
| Min Qty | 2500 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) |
| Product status | Not For New Designs |
| Supplier Device Package | 40-VQFN (6x6) |
| Voltage - Supply | 2V ~ 3.6V |
| Datasheet | View Datasheet PDF |
Procurement Snapshot
Key supply and purchasing information for BQ500511RHAR.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for BQ500511RHAR
Product Overview
The BQ500511RHAR from Texas Instruments is a wireless power transmitter PMIC for surface-mount power-management designs. It uses a 40-VFQFN Exposed Pad package and has the 40-VQFN (6x6) package designation. The device operates from a 2 V to 3.6 V supply and has a supply current of 3.45 mA. Its operating temperature range is -40°C to 85°C. These characteristics define the part as a transmitter-side IC for wireless power transfer applications that must fit within a surface-mount package.
Key Features
- Wireless power transmitter PMIC function
- 40-VFQFN Exposed Pad package
- Surface-mount mounting type
- 2 V to 3.6 V supply voltage
- 3.45 mA supply current
- -40°C to 85°C operating temperature
- 40-VQFN (6x6) package designation
Applications
- Transmitter-side power management in wireless power transfer systems
- Wireless charging pad transmitter circuits
- Surface-mount wireless power transmitter modules for embedded assemblies
Design & Procurement Notes
When selecting this part, verify that the system supply remains within 2 V to 3.6 V and that the 3.45 mA supply current is compatible with the power budget. Confirm that the expected operating temperature conditions fall within -40°C to 85°C, and account for package and PCB thermal effects around the exposed pad. The 40-VFQFN Exposed Pad format and 40-VQFN (6x6) package designation require a surface-mount footprint, solder paste, reflow profile, and pad layout that match the mechanical and electrical requirements of the board. Check the package drawing and land pattern before finalizing the PCB layout and assembly documentation. The supply range and current value should also be checked against the system power source and any shared rails.
