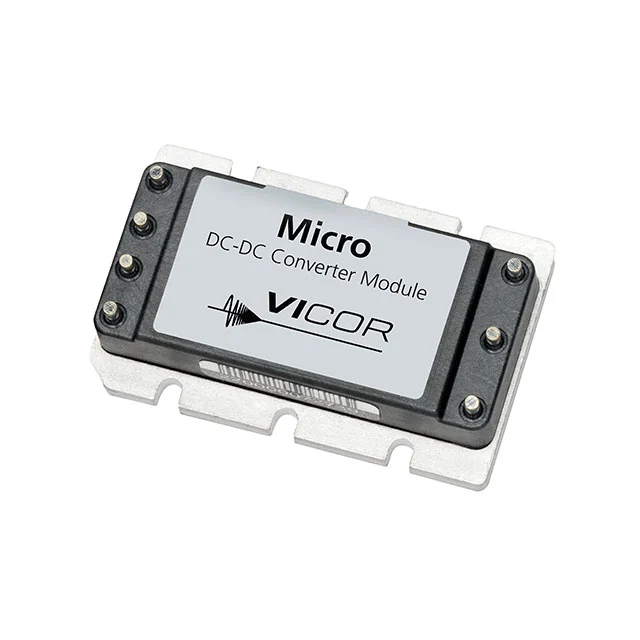

V375C48T75BG
DC DC CONVERTER 48V 75W
- 產品分類
- DC/DC 轉換器
- 封裝
- Quarter Brick
- 庫存
- 1,435 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Vicor Corporation |
|---|---|
| 產品分類 | DC/DC 轉換器 |
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1.56A |
| Efficiency | 84.1% |
| Features | OVP, UVLO |
| Min Qty | 1 |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 100°C |
| Package | Bulk |
| Power (Watts) | 75 W |
| Product status | Active |
| Series | MICRO (75W) |
| Size / Dimension | 2.28" L x 1.45" W x 0.65" H (57.9mm x 36.8mm x 16.5mm) |
| Type | Isolated Module |
| Voltage - Input (Max) | 425V |
| Voltage - Input (Min) | 250V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48V |
| 資料表 | 查看資料表PDF |
採購概覽
V375C48T75BG 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
V375C48T75BG 詳細描述
Product Overview
The Vicor Corporation V375C48T75BG is an isolated module DC-DC converter from the MICRO (75W) series, providing a single 48 V output from a 250 V to 425 V input. It is rated for 75 W and can deliver up to 1.56 A, with a maximum output power specification of 75 W. The converter uses a through-hole quarter-brick package measuring 2.28 in L x 1.45 in W x 0.65 in H (57.9 mm x 36.8 mm x 16.5 mm) and specifies an operating temperature range of -40°C to 100°C. Input-to-output isolation is rated at 3 kV, and the device includes overvoltage protection and undervoltage lockout.
Key Features
- Single isolated 48 V output rated at 1.56 A for 75 W maximum output power.
- Accepts 250 V to 425 V input voltage range.
- Provides 3 kV input-to-output isolation.
- Includes OVP and UVLO protection features.
- Operates from -40°C to 100°C with 84.1% efficiency.
- Through-hole quarter-brick package with dimensions 2.28 in L x 1.45 in W x 0.65 in H (57.9 mm x 36.8 mm x 16.5 mm).
Applications
- Commercial information technology equipment needing a single 48 V output from a 250 V to 425 V input rail.
- Isolated board-level power distribution where 3 kV input-to-output isolation is required between the high-voltage input and the 48 V output.
- Through-hole quarter-brick power subsystems in equipment with an operating temperature range of -40°C to 100°C.
Design & Procurement Notes
When selecting this converter, verify that the system input voltage remains within 250 V to 425 V and that the 48 V load does not exceed 1.56 A, corresponding to the 75 W output rating. The 3 kV isolation rating and through-hole quarter-brick form factor affect board layout, creepage/clearance planning, and mechanical mounting. The specified operating range of -40°C to 100°C and 84.1% efficiency should be considered with thermal management, while OVP and UVLO support protection under overvoltage and low-input conditions. Confirm that the 57.9 mm x 36.8 mm x 16.5 mm package and 16.5 mm height are compatible with the enclosure and adjacent components.
