V300C24H150BL3

Product Overview

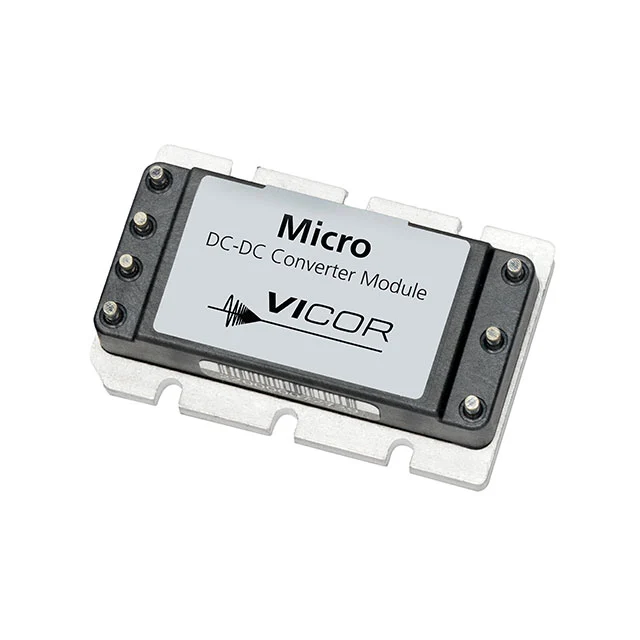

The Vicor Corporation V300C24H150BL3 is an isolated module DC DC converter in the MICRO (150W) series. It provides a single 24 V output at up to 6.25 A, delivering 150 W from an input range of 180 V to 375 V. The converter offers 3 kV isolation, 86.5% efficiency, OVP and UVLO features, and operates from -40°C to 100°C. It uses a quarter brick package with through-hole mounting and dimensions of 2.28 in L x 1.45 in W x 0.65 in H (57.9 mm x 36.8 mm x 16.5 mm).

Key Features

• Isolated module DC DC converter with one output
• 24 V output at up to 6.25 A
• Input voltage range from 180 V to 375 V
• Rated output power of 150 W
• 3 kV isolation
• OVP and UVLO features
• Operating temperature range of -40°C to 100°C
• Efficiency of 86.5%
• Quarter brick package with through-hole mounting
• Dimensions of 2.28 in L x 1.45 in W x 0.65 in H (57.9 mm x 36.8 mm x 16.5 mm)

Applications

• Commercial information technology equipment requiring isolated 24 V board-level power
• DC input rails from 180 V to 375 V that require isolated conversion to a 24 V output
• Board-mount power architectures using quarter brick isolated converter modules

Design & Procurement Notes

Design teams can use the 180 V to 375 V input range and the 24 V, 6.25 A output to define the converter's role in a board-level power architecture. The 3 kV isolation voltage should be considered when evaluating input-output separation. Because the module is a through-hole quarter brick device, PCB layout and mechanical clearance must accommodate the 57.9 mm x 36.8 mm x 16.5 mm envelope. The 86.5% efficiency and -40°C to 100°C operating range indicate that thermal management should account for efficiency and ambient conditions. OVP and UVLO features can be incorporated into system-level protection planning, while the commercial ITE application context should be considered when defining the intended use case.
