TPS25741ARSMR

Product Overview

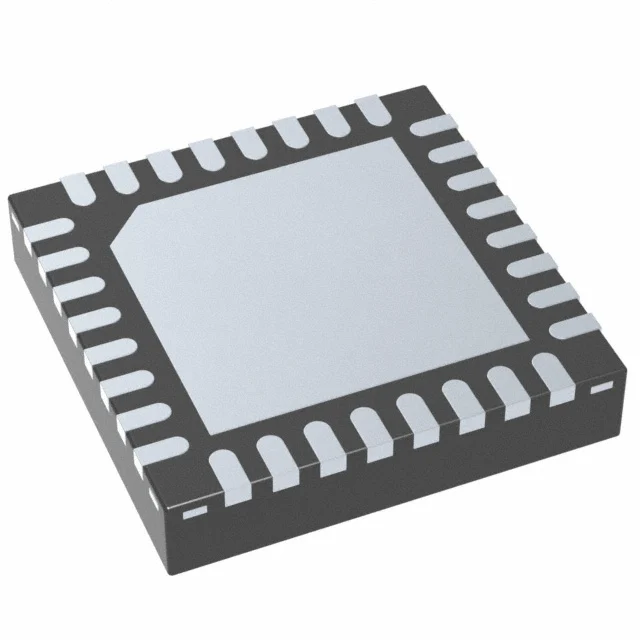

The Texas Instruments TPS25741ARSMR is a USB Type-C controller power management IC intended for systems that manage USB Type-C connectivity. It operates from a supply voltage range of 4.65 V to 25 V and is specified for an operating temperature range of -40 °C to 125 °C. The device uses a surface-mount 32-VFQFN exposed-pad package, with a 32-VQFN (4 x 4) package variant. The package and device type combine Type-C control and power management in a single surface-mount component.

Key Features

• USB Type-C controller PMIC
• Supply voltage range: 4.65 V to 25 V
• Operating temperature range: -40 °C to 125 °C
• Surface-mount package: 32-VFQFN with exposed pad
• Package variant: 32-VQFN (4 x 4)
• Manufacturer part number: TPS25741ARSMR

Applications

• USB Type-C port control in host-side equipment
• USB Type-C port control in device-side equipment
• Power management for Type-C enabled embedded systems

Design & Procurement Notes

Design and procurement notes: The TPS25741ARSMR should be specified by its exact part number and package to maintain compatibility with the 32-VFQFN exposed-pad footprint. The 4.65 V to 25 V supply range and -40 °C to 125 °C operating temperature range should be compared with the system power rail and expected ambient conditions. Board layout should account for the exposed pad and the 4 x 4 surface-mount package. Because the device is a USB Type-C controller PMIC, system-level Type-C interface requirements should be reviewed against the selected voltage, temperature, and package constraints.
