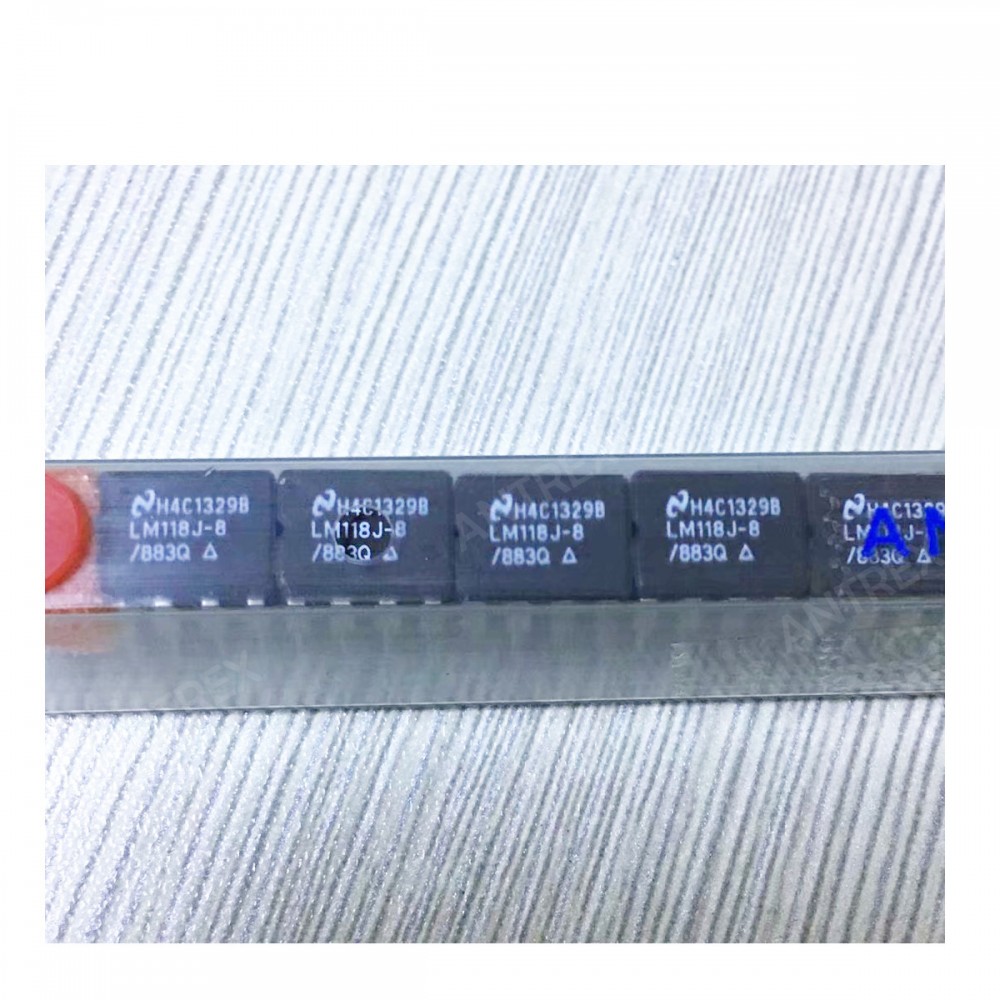

LM118WG/883Q
The LM118WG/883Q is a military-grade high-speed precision operational amplifier featuring wide bandwidth, high slew rate, and QML certification for aerospace and high-reliability applications
- 產品分類
- 運算放大器 - 運放
- 封裝
- CDIP‑8
- 庫存
- 1,500 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Texas Instruments |
|---|---|
| 產品分類 | 運算放大器 - 運放 |
| Amplifier Type | High-Speed Bipolar Op Amp |
| Applications | Military Systems, Aerospace Electronics, Precision Instrumentation, A/D Converters, Active Filters |
| Common Mode Rejection Ratio | 100 dB Typical |
| Device Type | Precision Operational Amplifier |
| Frequency Compensation | Internally Compensated |
| Gain Bandwidth Product | 15 MHz |
| Input Bias Current | 250 nA Max |
| Input Offset Current | 70 nA Max |
| Input Offset Voltage | 4 mV Max |
| Input Resistance | 1 MΩ Min |
| Large Signal Voltage Gain | 50 V/mV Min |
| Maximum Supply Voltage | 40 V Total |
| Number of Channels | 1 Channel |
| Operating Temperature Range | -55°C to +125°C |
| Output Current | 20 mA Typical |
| Output Voltage Swing | ±12 V Typical |
| Package Pins | 8 pins |
| Package Type | TO-99 Metal Can |
| Qualification | Military QML / MIL-STD Grade |
| RoHS Status | Military Package Dependent |
| Slew Rate | 50 V/µs Min |
| Supply Voltage Range | ±5 V to ±20 V |
| Unity Gain Stable | Yes |
| 資料表 | 查看資料表PDF |
採購概覽
LM118WG/883Q 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LM118WG/883Q 詳細描述
Product Overview
LM118WG_883Q is a military-grade high-speed precision operational amplifier from the LM118 series. Manufactured originally by National Semiconductor and now supported by Texas Instruments, this device features wide bandwidth, high slew rate, internal frequency compensation and excellent DC performance. Designed for demanding military and aerospace applications, LM118WG_883Q provides fast settling response and reliable operation over an extended temperature range, making it suitable for precision analog signal processing, data acquisition, active filters and instrumentation systems. :contentReference[oaicite:0]{index=0}
Key Features
Manufacturer: National Semiconductor / Texas Instruments
Part Number: LM118WG_883Q
Device Type: High-speed precision operational amplifier
Product Category: Analog IC / Operational Amplifier
Amplifier Type: Single-channel voltage feedback amplifier
Technology: Bipolar analog process
Bandwidth: 15MHz small signal bandwidth
Slew Rate: 50V/μs minimum
Supply Voltage Range: ±5V to ±20V
Input Bias Current: 250nA maximum
High-Speed Settling Performance
Internal Unity-Gain Frequency Compensation
Input and Output Overload Protection
High Open-Loop Gain Performance
Low Offset Voltage Drift
Operating Temperature Range: -55°C to +125°C
Military Qualification: MIL-STD-883 compliant
Package Type: Ceramic surface-mount package
Number of Pins: 10 pins
Typical Applications: A/D converters, oscillators, active filters, sample-and-hold circuits, instrumentation and aerospace electronics
Applications
LM118WG_883Q is designed for high-performance analog systems requiring fast response, high accuracy and military-grade reliability. Typical applications include aerospace electronics, defense systems, precision instrumentation, analog computing circuits, data acquisition equipment, active filter networks, sample-and-hold circuits, signal conditioning modules and industrial control systems. :contentReference[oaicite:1]{index=1}
Quality & Sourcing
Antrex Electronics can support LM118WG_883Q sourcing with manufacturer verification, stock availability checks, date code inspection, package confirmation and quotation services. For military and aerospace projects, customers can provide required screening level, inspection requirements, quantity and delivery schedule for sourcing support.
Datasheet Download
LM118WG_883Q / LM118QML Datasheet PDF: Download Datasheet
