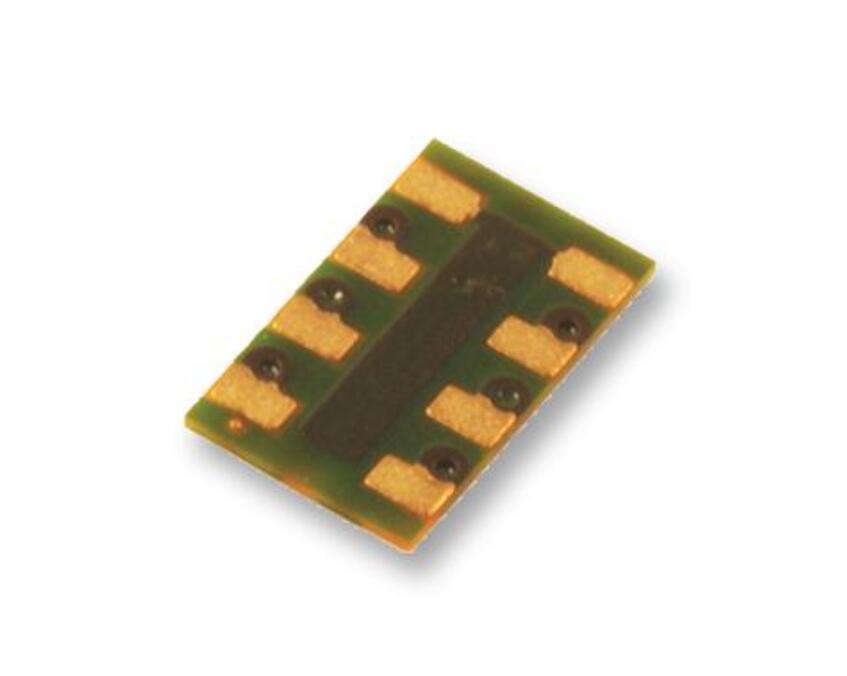

MS5611-01BA03
Barometric Pressure Sensors TE MS5611-01BA03 High-Resolution 24-bit Digital Pressure Sensor with I²C/SPI Interface for Altimeter and Barometer Applications.
- 製造商
- TE Connectivity
- 產品分類
- 慣性測量單元（IMU）
- 封裝
- LGA-8
- 庫存
- 24,500 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | TE Connectivity |
|---|---|
| 產品分類 | 慣性測量單元（IMU） |
| ADC Resolution | 24-bit ΔΣ ADC |
| Altitude Resolution | 10 cm |
| Full Accuracy Range | 450 mbar to 1100 mbar |
| Interface | I²C / SPI |
| Long-Term Stability | ±1 mbar/year |
| Operating Temperature | -40°C to +85°C |
| Output Type | Digital Output |
| Overpressure | 6 bar |
| Package | QFN, 5.0 × 3.0 × 1.0 mm |
| Pressure Range | 10 mbar to 1200 mbar |
| Pressure Resolution | Down to 0.012 mbar RMS |
| Product Category | Board Mount Pressure Sensors / Barometric Pressure Sensors |
| Sensor Type | Barometric Pressure Sensor |
| Special Feature | Stainless Steel Cap |
| SPI Clock Frequency | Up to 20 MHz |
| Standby Current | Typ. 0.02 μA, Max. 0.14 μA |
| Supply Voltage | 1.8 V to 3.6 V |
| Temperature Resolution | < 0.01°C |
| 資料表 | 查看資料表PDF |
採購概覽
MS5611-01BA03 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
MS5611-01BA03 詳細描述
Product Overview
MS5611-01BA03 is a high-resolution barometric pressure sensor from TE Connectivity / Measurement Specialties, supplied with a stainless steel cap. The device integrates a high-linearity pressure sensor and an ultra-low-power 24-bit ΔΣ ADC, providing digital pressure and temperature output for compact altimeter, barometer and height sensing applications.
Key Features
Manufacturer: TE Connectivity / Measurement Specialties
Part Number: MS5611-01BA03
Product Category: Barometric pressure sensor
Pressure Range: 10 mbar to 1200 mbar
Full Accuracy Range: 450 mbar to 1100 mbar
Altitude Resolution: 10 cm
ADC Resolution: 24-bit ΔΣ ADC
Pressure Resolution: down to 0.012 mbar RMS
Digital Interface: I²C and SPI support
SPI Clock Frequency: up to 20 MHz
Supply Voltage: 1.8 V to 3.6 V
Operating Temperature Range: -40°C to +85°C
Package: QFN, 5.0 × 3.0 × 1.0 mm
Special Construction: stainless steel cap
Applications
MS5611-01BA03 is suitable for mobile altimeter and barometer systems, bike computers, variometers, indoor navigation equipment, height sensing modules, drones, wearable devices, portable instruments and embedded environmental sensing systems. It is often used in products that require compact digital pressure measurement, altitude estimation or temperature-compensated pressure output.
Quality & Sourcing
Antrex Electronics can support MS5611-01BA03 sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. Buyers can provide quantity, target price, required date code, packaging requirements and application information for faster quotation support.
For quality control, Antrex Electronics can help arrange product photos, label review, visual inspection and third-party testing support when required. OEMs, EMS providers, repair centers, drone manufacturers, instrument manufacturers and electronic component buyers are welcome to send BOM lists or hard-to-find pressure sensor part requests for sourcing assistance.
MS5611-01BA03 採購與供應支援
詢價支援MS5611-01BA03 是由 TE Connectivity 製造的慣性測量單元（IMU） 產品。Antrex Electronics 可協助確認目前庫存、價格、生產批次、交期及採購需求。
產品審核說明
MS5611-01BA03 被歸類為 慣性測量單元（IMU） 產品，製造商為 TE Connectivity。買家下單前應確認完整訂購型號、封裝、數量及專案需求。
詢價核對項目
- 目前庫存、價格及交期
- 生產批次、封裝類型及標籤照片
- 卷帶、托盤、管裝或剪帶包裝狀況
- 目標價格、需求數量及 BOM 採購要求
MS5611-01BA03 常見問題
MS5611-01BA03 目前有庫存嗎？
庫存會隨時變動，請提交詢價以確認目前可供數量、生產批次及交期。
可以取得 MS5611-01BA03 的產品照片及包裝資訊嗎？
可以。我們可依要求協助確認標籤、包裝、生產批次及可用的產品照片。
如何取得 MS5611-01BA03 的大量採購報價？
請提供所需數量、目標價格及其他採購要求，我們會協助確認價格、庫存與交期。
