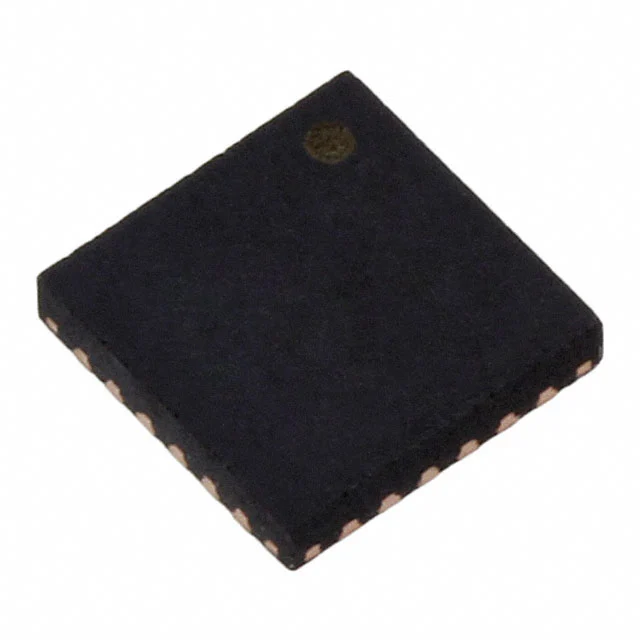

C8051F921-G-GM
IC MCU 8BIT 32KB FLASH 24QFN
- 製造商
- Silicon Labs
- 產品分類
- 微控制器 - MCU
- 封裝
- 24-WFQFN Exposed Pad
- 庫存
- 4,004 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Silicon Labs |
|---|---|
| 產品分類 | 微控制器 - MCU |
| Connectivity | SMBus (2-Wire/I2C), SPI, UART/USART |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Data Converters | A/D 15x10b |
| Mounting Type | Surface Mount |
| Number of I/O | 16 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package | Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Product status | Active |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | Flash |
| RAM Size | 4.25K x 8 |
| Series | C8051F9xx |
| Speed | 25MHz |
| Supplier Device Package | 24-QFN (4x4) |
| Voltage - Supply (Vcc/Vdd) | 0.9V ~ 3.6V |
| 資料表 | 查看資料表PDF |
採購概覽
C8051F921-G-GM 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
C8051F921-G-GM 詳細描述
Product Overview
The C8051F921-G-GM from Silicon Labs is an 8-bit microcontroller built around an 8051 core and operating at 25 MHz. It provides 32 KB of FLASH program memory, 4.25 K x 8 bytes of RAM, and 16 I/O pins in a 24-QFN (4x4) surface-mount package. The device supports SMBus (2-Wire/I2C), SPI, and UART/USART interfaces, and includes a 15-channel, 10-bit analog-to-digital converter, PWM, temperature sensor, watchdog timer, power-on reset, and brown-out detect/reset functions. Its supply range is 0.9 V to 3.6 V, with an operating temperature range of -40°C to 85°C (TA).
Key Features
- 8051 8-bit CPU core with 25 MHz speed and an internal oscillator.
- 32 KB (32K x 8) FLASH program memory and 4.25K x 8 bytes of RAM.
- 16 I/O pins with SMBus (2-Wire/I2C), SPI, and UART/USART communication interfaces.
- Integrated 15-channel, 10-bit analog-to-digital converter for mixed-signal input measurements.
- On-chip peripherals include PWM, temperature sensing, watchdog timer, power-on reset, and brown-out detect/reset.
- Surface-mount 24-QFN (4x4) package with 24-WFQFN exposed pad case.
- 0.9 V to 3.6 V supply range and -40°C to 85°C (TA) operating temperature range.
Applications
- Low-voltage embedded control nodes using the 0.9 V to 3.6 V supply range and 16 I/O pins.
- Mixed-signal sensor acquisition using the 15-channel 10-bit ADC and temperature sensor.
- Embedded device-to-device communication over UART/USART, SPI, or SMBus/I2C interfaces.
- Compact surface-mount control modules using the 24-QFN (4x4) package and integrated peripherals.
Design & Procurement Notes
Designers should verify that the 0.9 V to 3.6 V supply range matches the system power rail and that the 24-WFQFN exposed pad is handled in the PCB layout and assembly plan. The 32 KB FLASH program memory and 4.25K x 8 bytes of RAM define the code and data space available for firmware. The 15-channel 10-bit ADC, temperature sensor, PWM, and communication interfaces can support mixed-signal and control tasks, while the internal oscillator and brown-out detect/reset, POR, and watchdog timer provide basic system supervision. The -40°C to 85°C (TA) range and surface-mount package should be considered during enclosure, board, and assembly planning.
