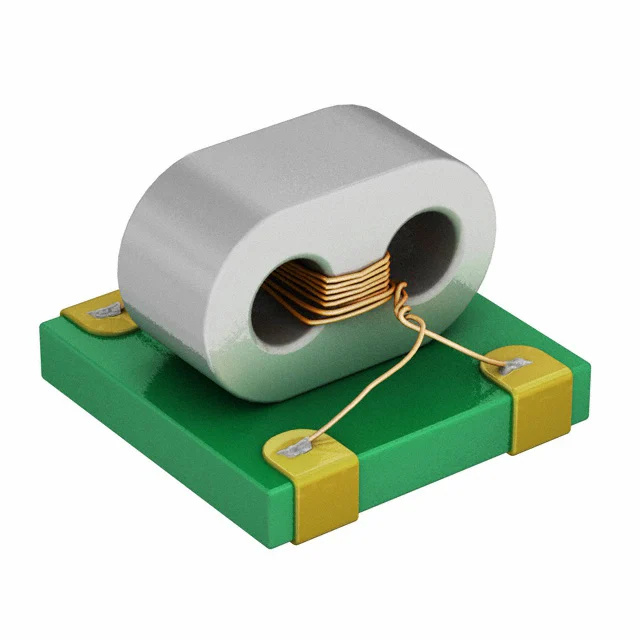

CX2109NL

Product Overview

The CX2109NL is a Pulse Electronics ultra-wideband unity-ratio RF balun transformer developed for 4.5 MHz to 3 GHz signal paths. The unity-ratio network preserves the nominal impedance while converting between single-ended and balanced nodes. The confirmed frequency range, transformer ratio, topology and package are retained; unavailable numerical limits are omitted.

Its upper-frequency coverage reaches cellular, broadband wireless, MoCA or lower-microwave bands, so short and symmetrical PCB routing is important. This ordering code is supplied in tray packaging and is separate from the tape-and-reel T-suffix version. Transformer-coupled balanced conversion.

Key Features

• Manufacturer: Pulse Electronics
• Part Number: CX2109NL
• Product Category: RF Balun / RF Transformer
• Device Type: ultra-wideband unity-ratio RF balun transformer
• Frequency Range: 4.5 MHz to 3 GHz
• System / Port Impedance: 50 Ω unbalanced / 50 Ω balanced
• Impedance / Turns Relationship: 1:1
• Winding / Isolation Detail: Transformer-coupled balanced conversion
• Package / Case: 5-SMD module
• Mounting Type: Surface mount
• Operating Temperature: -40°C to +85°C
• Packaging: Tray

Applications

• Cellular, broadband wireless, MoCA and lower-microwave differential interfaces
• Single-ended-to-balanced mixer and amplifier interfaces
• Laboratory instrumentation, communications equipment and legacy production assemblies
