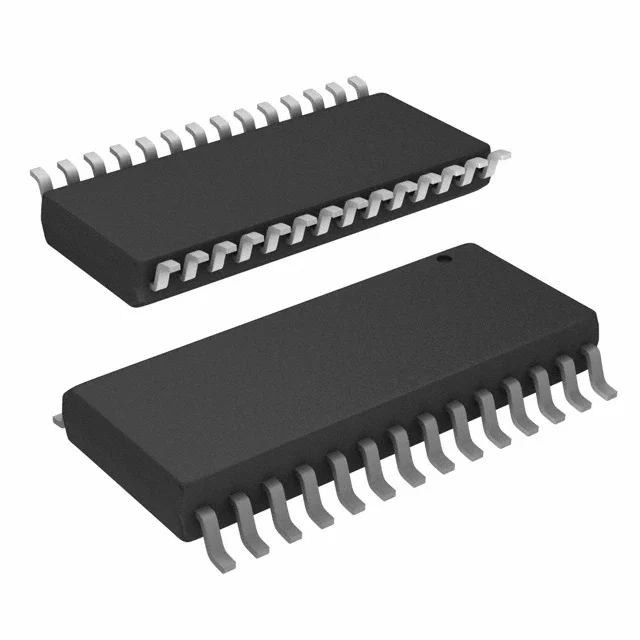

UDA1341TS
NXP UDA1341TS is a low-power stereo audio CODEC integrating ADC, DAC and DSP functions for digital audio systems
- 製造商
- NXP USA Inc.
- 產品分類
- 音訊放大器
- 封裝
- SSOP-28
- 庫存
- 1,500 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | NXP USA Inc. |
|---|---|
| 產品分類 | 音訊放大器 |
| ADC Resolution | 20-bit Sigma-Delta ADC |
| Analog Input | Stereo Line Input with Programmable Gain Amplifier |
| Analog Output | Stereo Line Output |
| Applications | MiniDisc Players, Portable Audio Devices, Home Stereo Systems, Digital Video Equipment |
| Audio Processing Functions | Bass Boost, Treble Control, Soft Mute |
| Audio Resolution | Up to 20-bit Data Processing |
| Control Interface | L3 Microcontroller Interface |
| DAC resolution | 20-bit Sigma-Delta DAC |
| Digital Interface | I²S Bus, MSB-Justified, LSB-Justified |
| Function | Stereo ADC/DAC with Digital Signal Processing |
| Integrated Features | Digital AGC, Peak Detection, De-emphasis, Volume Control |
| Number of Channels | Stereo (2 Channels) |
| Operating Temperature Range | -40°C to +85°C |
| Package Size | 28-Pin SSOP (SOT341-1) |
| Package Type | SSOP Package |
| Power Consumption | Low Power Consumption Design |
| Power supply voltage | 3.0 V |
| RoHS Status | ROHS compliant |
| Sampling Frequency | 8 kHz to 55 kHz |
| System Clock Frequency | 256fs, 384fs or 512fs |
| 資料表 | 查看資料表PDF |
採購概覽
UDA1341TS 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
UDA1341TS 詳細描述
Product Overview
UDA1341TS is an NXP Semiconductors stereo audio CODEC designed for MiniDisc (MD), home stereo and portable audio applications. This single-chip device integrates a stereo analog-to-digital converter (ADC), digital-to-analog converter (DAC), programmable gain amplifier (PGA), digital automatic gain control (AGC) and digital signal processing functions. Supporting multiple digital audio formats, low-voltage operation and high-quality audio conversion, UDA1341TS is suitable for portable audio devices, digital cameras, notebook computers and consumer audio systems.
Key Features
Manufacturer: NXP Semiconductors
Part Number: UDA1341TS
Product Type: Audio CODEC IC
Application Category: Stereo Audio Signal Processing
ADC Resolution: 20-bit
DAC Resolution: 20-bit
Number of ADC Channels: 4 ADC inputs
Number of DAC Channels: 2 DAC outputs
Sampling Frequency: Up to 48kHz
Signal-to-Noise Ratio: Approx. 100dB DAC / 100dB ADC
Audio Interface: I²S, MSB-justified and LSB-justified formats
Control Interface: L3 serial interface
Supply Voltage Range: 2.4V to 3.6V
Operating Voltage: 3V typical
Integrated Functions: PGA, digital AGC, digital mixer and DSP sound processing
DSP Features: De-emphasis, volume control, bass boost, treble control and soft mute
Conversion Technology: Bitstream conversion technology
Package Type: SSOP-28 (SOT341-1)
Mounting Type: Surface Mount Technology (SMT)
Operating Temperature Range: -20°C to +85°C
Dimensions: Approx. 10.2mm × 5.3mm
Features: Low-voltage operation, integrated audio processing, high-quality conversion and compact design
Typical Applications: MiniDisc systems, portable audio players, digital cameras, notebook PCs and consumer audio equipment
Product Status: Legacy product, available through specialized sourcing channels
Datasheet: UDA1341TS datasheet PDF available for technical verification before production use.
Applications
UDA1341TS is designed for high-quality stereo audio conversion and digital sound processing applications. Typical applications include MiniDisc recorders, portable audio systems, digital video cameras, notebook computers, home stereo equipment and embedded consumer audio devices requiring low-power audio CODEC solutions.
Quality & Sourcing
Antrex Electronics can support UDA1341TS sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For project-based purchasing, customers can provide quantity requirements, delivery schedules, application details and technical specifications for faster quotation support.
For quality assurance, Antrex Electronics can assist with product photos, marking verification, visual inspection and third-party testing services when required. OEM manufacturers, audio equipment suppliers, repair centers and electronic component buyers are welcome to submit BOM lists or hard-to-find IC requirements for sourcing assistance.
