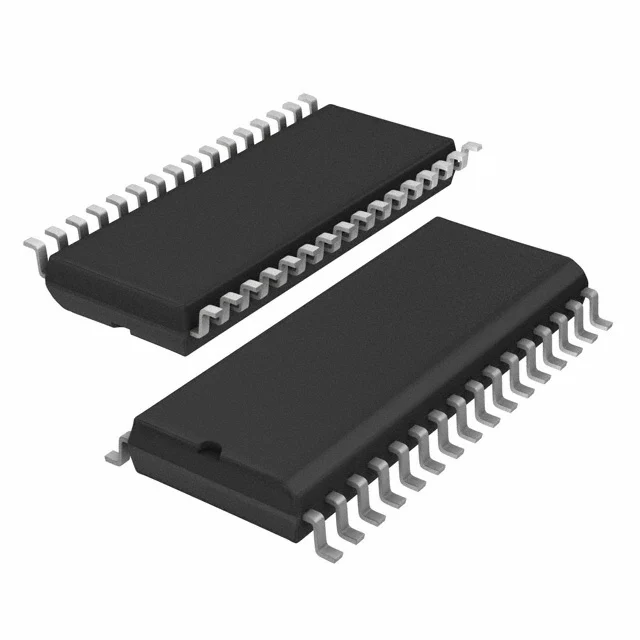

TEF6614T/S4
Automotive AM/FM tuner IC with integrated PLL, stereo decoder and RDS for car radio systems
- 製造商
- NXP USA Inc.
- 產品分類
- 射頻接收器
- 封裝
- SOP
- 庫存
- 1,500 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | NXP USA Inc. |
|---|---|
| 產品分類 | 射頻接收器 |
| AM Frequency Range | 153kHz to 279kHz |
| Application | Automotive Infotainment Systems |
| Applications | Car Radios, Multi-Tuner Systems, Vehicle Audio Systems |
| Audio Processing | Stereo Decoder Integrated |
| Control Interface | I²C Bus |
| FM Frequency Range | 76MHz to 108MHz |
| Frequency Bands | Worldwide AM/FM Broadcast Bands |
| Function | AM/FM Low-IF Radio Tuner |
| IF Architecture | Low IF Alignment-Free Design |
| Integrated PLL | Yes |
| Integrated VCO | Yes |
| Mounting Type | Surface Mount |
| Noise Reduction | Soft Mute, HCC, SNC Functions |
| Number of Pins | 32 Pins |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | SO-32 / SOP-32 |
| Packaging | Tape & Reel |
| Part Number | TEF6614T/S4 |
| Product Type | Automotive Radio Tuner |
| Radio Standards | AM, FM, RDS/RBDS Support |
| RDS Function | Integrated RDS/RBDS Demodulator and Decoder |
| RoHS Compliance | Yes |
| Supply Voltage | 8.5V Typical |
| Technology | CMOS RF Integrated Circuit |
| Tuning Method | PLL Frequency Synthesizer |
| 資料表 | 索取數據表 |
採購概覽
TEF6614T/S4 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
TEF6614T/S4 詳細描述
Product Overview
TEF6614T_S4 is an NXP Semiconductors advanced AM/FM radio tuner IC designed for automotive and embedded radio receiver applications. The device integrates a low-IF FM/AM tuner, PLL tuning system, RDS/RBDS decoder and advanced signal processing functions in a single chip. TEF6614T_S4 supports worldwide FM frequency bands, provides improved weak-signal processing and dynamic bandwidth control, and is controlled through an I²C bus interface. It is designed for main-board integration in car audio systems and other radio reception equipment.
Key Features
Manufacturer: NXP Semiconductors
Part Number: TEF6614T_S4
Device Type: AM/FM Radio Tuner IC
Product Category: Automotive Radio Receiver IC
Function: Integrated low-IF radio tuner with PLL tuning
Frequency Support: Worldwide FM and AM broadcast bands
FM Reception: Europe, USA, Japan and OIRT band support
AM Reception: Integrated AM tuner function
RDS/RBDS Decoder: Integrated
RDS Data Output: I²C bus interface
Control Interface: I²C-bus controlled operation
PLL Synthesizer: Integrated frequency tuning system
Signal Processing: Advanced weak signal processing
Dynamic Bandwidth Control: Supported for FM reception improvement
Alignment-Free Tuner Architecture: Supported
Compatibility: Backward compatible with TEF6606 family
Supply Voltage: 3V automotive electronics operation
Package Type: SOT287-1 (32-lead plastic small outline package)
Mounting Type: Surface mount
Operating Temperature: Automotive-grade temperature range
Application: Car radio and embedded radio systems
Typical Applications: Automotive infotainment systems, radio modules and receiver boards
Product Status: No longer manufactured / legacy product family
Ordering / Packaging Note: Verify suffix, package marking, date code and manufacturer traceability before procurement.
Applications
TEF6614T_S4 is mainly used in automotive radio receiver systems and embedded AM/FM tuner designs. Typical applications include car infotainment units, dashboard radio modules, OEM audio systems and replacement/repair applications for legacy automotive electronics.
Quality & Sourcing
Antrex Electronics can support TEF6614T_S4 sourcing with stock verification, RFQ quotation, manufacturer confirmation, package inspection, date code review and shipment arrangement. As a discontinued NXP automotive tuner IC, customers should confirm package type, original marking and application compatibility before procurement.
Quality support can include marking inspection, visual inspection, electrical testing coordination and third-party verification when required. Automotive electronics manufacturers, repair centers and electronic component buyers are welcome to submit sourcing requests for TEF6614T_S4 and other legacy tuner IC components.
