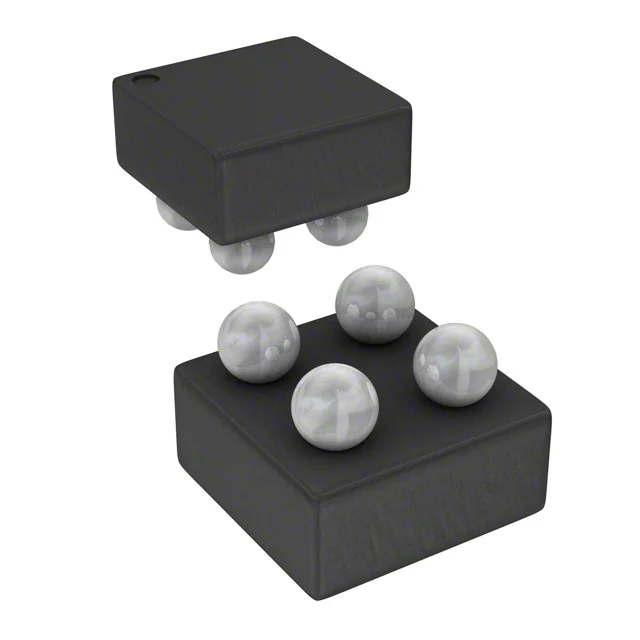

LD6836CX4/25P,315
IC REG LINEAR 2.5V 300MA 4WLCSP
- 製造商
- NXP USA Inc.
- 產品分類
- 電壓穩壓器與電壓控制器
- 封裝
- 4-XFBGA, WLCSP
- 庫存
- 17,957 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | NXP USA Inc. |
|---|---|
| 產品分類 | 電壓穩壓器與電壓控制器 |
| Control Features | Enable |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 250 µA |
| Min Qty | 2664 |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package | Bulk |
| Product status | Obsolete |
| Protection Features | Over Current, Over Temperature |
| PSRR | 55dB (1kHz) |
| Supplier Device Package | 4-WLCSP (0.76x0.76) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage Dropout (Max) | 0.16V @ 300mA |
| 資料表 | 查看資料表PDF |
採購概覽
LD6836CX4/25P,315 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LD6836CX4/25P,315 詳細描述
Product Overview
The LD6836CX4/25P,315 from NXP USA Inc. is a positive fixed-output linear voltage regulator intended for compact surface-mount power stages. It provides a single 2.5V output at up to 300mA from input supplies up to 5.5V, with a maximum dropout of 0.16V at 300mA. The device is housed in a 4-WLCSP package measuring 0.76mm by 0.76mm and includes an enable control feature. Protection functions cover over-current and over-temperature conditions, and the specified operating temperature range is -40°C to 85°C.
Key Features
- Positive fixed-output linear regulator with one output and a 2.5V output voltage.
- Output current capability of 300mA with a maximum dropout of 0.16V at 300mA.
- Maximum input voltage of 5.5V and quiescent current of 100 µA.
- Supply current maximum of 250 µA and PSRR of 55dB at 1kHz.
- Enable control feature with over-current and over-temperature protection.
- Surface-mount 4-XFBGA, WLCSP package with 0.76mm by 0.76mm device package dimensions.
Applications
- Battery-powered portable devices requiring a fixed 2.5V rail from supplies up to 5.5V.
- Compact embedded systems needing a small 4-WLCSP linear regulator for low-current power rails.
- Power stages that benefit from enable control and over-current or over-temperature protection.
Design & Procurement Notes
When selecting this regulator, confirm that the system requires a fixed 2.5V output rather than an adjustable output, and verify that the input voltage will not exceed 5.5V. The 0.16V dropout at 300mA should be considered when calculating headroom between input and output, especially near full load. The 100 µA quiescent current and 250 µA maximum supply current are relevant to battery-powered designs, while the 55dB PSRR at 1kHz can be used to assess input ripple rejection. The enable function allows the output stage to be controlled, and the over-current and over-temperature protections support fault conditions within the specified operating range. The 0.76mm by 0.76mm WLCSP package requires suitable surface-mount assembly, pad layout, and thermal management within the -40°C to 85°C operating temperature range.
