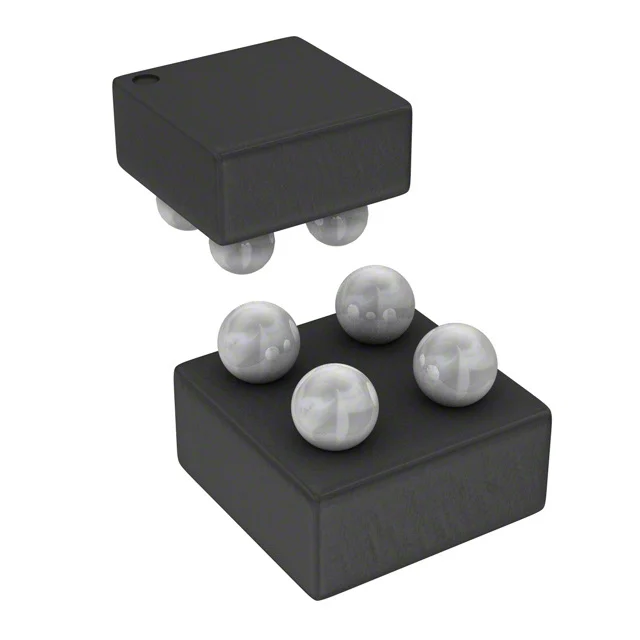

LD6836CX4/23P,315
IC REG LINEAR 2.3V 300MA 4WLCSP
- 製造商
- NXP USA Inc.
- 產品分類
- 電壓穩壓器與電壓控制器
- 封裝
- 4-XFBGA, WLCSP
- 庫存
- 18,000 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | NXP USA Inc. |
|---|---|
| 產品分類 | 電壓穩壓器與電壓控制器 |
| Control Features | Enable |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 250 µA |
| Min Qty | 2664 |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package | Bulk |
| Product status | Obsolete |
| Protection Features | Over Current, Over Temperature |
| PSRR | 55dB (1kHz) |
| Supplier Device Package | 4-WLCSP (0.76x0.76) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.3V |
| Voltage Dropout (Max) | 0.16V @ 300mA |
| 資料表 | 查看資料表PDF |
採購概覽
LD6836CX4/23P,315 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LD6836CX4/23P,315 詳細描述
Product Overview
The NXP USA Inc. LD6836CX4/23P,315 is a single-output linear voltage regulator that provides a fixed positive 2.3 V rail at up to 300 mA. It accepts an input voltage up to 5.5 V and specifies a maximum dropout of 0.16 V at 300 mA. The device includes an enable control feature, over-current and over-temperature protection, a quiescent current of 100 µA, a maximum supply current of 250 µA, and a power-supply ripple rejection of 55 dB at 1 kHz. It is supplied in a 4-WLCSP surface-mount package measuring 0.76 x 0.76 mm and is specified for operation from -40°C to 85°C.
Key Features
- Fixed positive 2.3 V output with a maximum output current of 300 mA.
- Input voltage up to 5.5 V, with a maximum dropout of 0.16 V at 300 mA.
- Enable control feature.
- Over-current and over-temperature protection features.
- Quiescent current of 100 µA and maximum supply current of 250 µA.
- Power-supply ripple rejection of 55 dB at 1 kHz.
- 4-XFBGA, WLCSP surface-mount package with 0.76 x 0.76 mm dimensions.
- Operating temperature range of -40°C to 85°C.
Applications
- Low-current electronic subsystems requiring a fixed 2.3 V supply rail.
- Compact surface-mount boards where a single-output regulator in a 4-WLCSP package is needed.
- Systems that require an enable control for a fixed 2.3 V regulator.
- Circuit boards where power-supply ripple rejection at 1 kHz is relevant to a 2.3 V load.
Design & Procurement Notes
Because the output is fixed at 2.3 V, this regulator cannot be adjusted to another voltage. Designs should verify that the input remains at or below 5.5 V and provides sufficient headroom above 2.3 V, including the 0.16 V maximum dropout at 300 mA. The enable control can be used for system power management, but the surrounding circuit should still define normal operating limits. Over-current and over-temperature protection are present, yet the layout should accommodate the 4-WLCSP surface-mount footprint and the specified -40°C to 85°C operating range. The 100 µA quiescent current and 55 dB PSRR at 1 kHz are useful considerations for low-current rails where supply noise and idle current matter.
