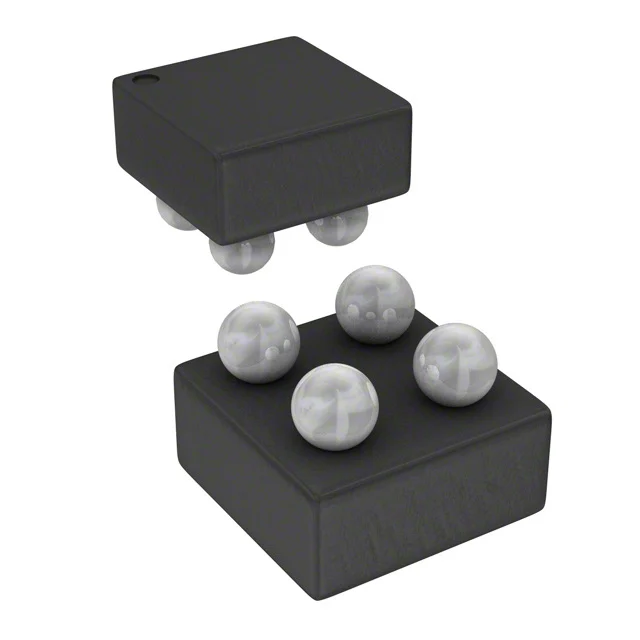

LD6836CX4/20P,315
IC REG LINEAR 2V 300MA 4WLCSP
- 製造商
- NXP USA Inc.
- 產品分類
- 電壓穩壓器與電壓控制器
- 封裝
- 4-XFBGA, WLCSP
- 庫存
- 18,000 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | NXP USA Inc. |
|---|---|
| 產品分類 | 電壓穩壓器與電壓控制器 |
| Control Features | Enable |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 250 µA |
| Min Qty | 2664 |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package | Bulk |
| Product status | Obsolete |
| Protection Features | Over Current, Over Temperature |
| PSRR | 55dB (1kHz) |
| Supplier Device Package | 4-WLCSP (0.76x0.76) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2V |
| Voltage Dropout (Max) | 0.16V @ 300mA |
| 資料表 | 查看資料表PDF |
採購概覽
LD6836CX4/20P,315 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LD6836CX4/20P,315 詳細描述
Product Overview
The LD6836CX4/20P,315 from NXP USA Inc. is a positive fixed-output linear voltage regulator for single-output power conversion. It provides a regulated 2V output at up to 300mA and operates from an input voltage up to 5.5V. The device has a maximum dropout voltage of 0.16V at 300mA, a 100 µA quiescent current, and a maximum supply current of 250 µA. It is offered in a 4-WLCSP (0.76x0.76) surface-mount package and includes an enable control feature.
Key Features
- Fixed positive 2V output with 300mA output current capability
- Maximum input voltage of 5.5V and maximum dropout voltage of 0.16V at 300mA
- Quiescent current of 100 µA and maximum supply current of 250 µA
- Power supply rejection ratio of 55dB at 1kHz
- Enable control feature for output rail activation
- Over-current and over-temperature protection
- Operating temperature range of -40°C to 85°C
- 4-XFBGA, WLCSP surface-mount package
Applications
- Regulating a 2V rail for sensor or measurement circuitry
- Providing a fixed 2V output in battery-powered devices that use enable control for output activation
- Supplying a single 2V rail to compact boards requiring a surface-mount regulator
- Maintaining a regulated 2V output for peripherals that operate within the input, current, temperature, and protection limits
Design & Procurement Notes
Design considerations should center on the fixed 2V output and 300mA maximum output current, since the regulator does not provide an adjustable output setting. The 5.5V maximum input voltage and 0.16V maximum dropout voltage at 300mA define the minimum headroom needed for regulation under load. The enable control feature can be used to manage output rail activation, while the 100 µA quiescent current and 250 µA maximum supply current are relevant to low-current budget planning. Board layout and thermal design should account for the -40°C to 85°C operating range, over-current and over-temperature protection, and the 4-WLCSP (0.76x0.76) surface-mount package. The 55dB PSRR at 1kHz should be evaluated against input noise and load requirements. For procurement planning, confirm that the 4-XFBGA, WLCSP package and 4-WLCSP (0.76x0.76) footprint are compatible with the assembly process.
LD6836CX4/20P,315 採購與供應支援
詢價支援LD6836CX4/20P,315 是由 NXP USA Inc. 製造的電壓穩壓器與電壓控制器 產品。Antrex Electronics 可協助確認目前庫存、價格、生產批次、交期及採購需求。
產品審核說明
LD6836CX4/20P,315 被歸類為 電壓穩壓器與電壓控制器 產品，製造商為 NXP USA Inc.。買家下單前應確認完整訂購型號、封裝、數量及專案需求。
詢價核對項目
- 目前庫存、價格及交期
- 生產批次、封裝類型及標籤照片
- 卷帶、托盤、管裝或剪帶包裝狀況
- 目標價格、需求數量及 BOM 採購要求
LD6836CX4/20P,315 常見問題
LD6836CX4/20P,315 目前有庫存嗎？
庫存會隨時變動，請提交詢價以確認目前可供數量、生產批次及交期。
可以取得 LD6836CX4/20P,315 的產品照片及包裝資訊嗎？
可以。我們可依要求協助確認標籤、包裝、生產批次及可用的產品照片。
如何取得 LD6836CX4/20P,315 的大量採購報價？
請提供所需數量、目標價格及其他採購要求，我們會協助確認價格、庫存與交期。
