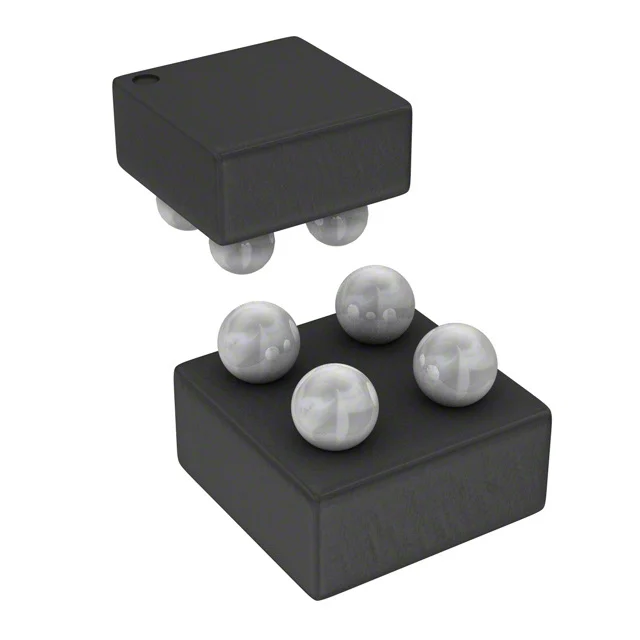

LD6816CX4/28P,315

IC REG LINEAR 2.8V 150MA 4WLCSP

製造商: NXP USA Inc.
產品分類: 電壓穩壓器與電壓控制器
封裝: 4-XFBGA, WLCSP
庫存: 27,000 件
供貨狀態: 當前數量需確認。

查詢價格及供貨查看資料表PDF

詢價內容包括： 價格庫存確認生產批次交期

可按要求提供產品實拍及檢測支援。

產品屬性

製造商	NXP USA Inc.
產品分類	電壓穩壓器與電壓控制器
Control Features	Enable
Current - Output	150mA
Current - Quiescent (Iq)	100 µA
Current - Supply (Max)	250 µA
Min Qty	3328
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature	-40°C ~ 85°C
Output Configuration	Positive
Output Type	Fixed
Package	Bulk
Product status	Obsolete
Protection Features	Over Current, Over Temperature, Transient Voltage
PSRR	55dB (1kHz)
Supplier Device Package	4-WLCSP (0.76x0.76)
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	2.8V
Voltage Dropout (Max)	0.075V @ 150mA
資料表	查看資料表PDF

採購資訊

採購概覽

LD6816CX4/28P,315 的主要供貨及採購資訊。

查詢價格及供貨

料號 LD6816CX4/28P,315

供貨狀態 列示庫存 27,000 pcs 當前數量需確認。

包裝與狀況 可確認包裝資訊 可按要求核對原廠包裝、標籤及包裝狀況。

生產批次與批號 可提供核實 可按要求核對生產批次、批號及標籤資料。

檢驗支援 檢驗及測試支援 可安排外觀檢查、X-ray 或其他測試。

採購支援 批量及缺貨採購 支援 OEM、EMS、難找料及長期供應需求。

採購能力

為何選擇 Antrex Electronics？

為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。

獨立分銷支援

支援短缺、停產及難找電子元器件的生產與採購需求。

可追溯性審查

可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。

檢驗與測試

如有需要，可安排外觀檢查、X-ray 及第三方測試支援。

全球採購支援

支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。

品質與採購

資質與驗證支援

為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。

ISO 9001 品質管理

ESD Control 元器件處理

ERAI 行業採購支援

Traceability 標籤、批號及文件審查

測試支援 X-ray 及第三方測試

LD6816CX4/28P,315 詳細描述

Product Overview

The LD6816CX4/28P,315 from NXP USA Inc. is a fixed-output linear voltage regulator designed to provide a positive 2.8V output from an input voltage up to 5.5V maximum. It supplies up to 150mA from a single output and is packaged in a 4-WLCSP, 0.76mm x 0.76mm, for surface-mount assembly. The device includes an enable control and protection against over current, over temperature, and transient voltage. Its specified quiescent current is 100µA, with maximum supply current of 250µA, and it operates from -40°C to 85°C. A dropout voltage of 0.075V at 150mA and PSRR of 55dB at 1kHz support low-current regulation in compact designs.

Key Features

Fixed positive 2.8V output with 150mA maximum output current.
Input voltage up to 5.5V maximum.
Low dropout voltage of 0.075V at 150mA.
Quiescent current of 100µA and maximum supply current of 250µA.
Enable control for output on/off management.
Protection features include over current, over temperature, and transient voltage.
PSRR of 55dB at 1kHz.
4-WLCSP surface-mount package measuring 0.76mm x 0.76mm.
Operating temperature range from -40°C to 85°C.

Applications

Portable battery-powered devices needing a compact 2.8V supply for low-current logic or sensor circuits.
Embedded modules where an enable signal controls a local regulator rail during standby or power sequencing.
Space-constrained PCBs using a 0.76mm x 0.76mm WLCSP package for small product enclosures.
Low-power subsystems where 100µA quiescent current and 150mA output current match small load requirements.
Analog or digital interfaces requiring a fixed 2.8V supply with over current and over temperature protection.

Design & Procurement Notes

Designers should confirm that the input voltage does not exceed the 5.5V maximum and that the selected input provides sufficient headroom for the 0.075V dropout at 150mA. The fixed 2.8V output is suitable only for loads within the 150mA output limit, so margin should be considered for peak currents. The enable control can be used to place the regulator in a controlled off state when the rail is not required, while the 100µA quiescent current supports low-power operation. Because the device uses a 4-WLCSP, 0.76mm x 0.76mm package, board layout should account for the small surface-mount footprint. The -40°C to 85°C operating range and specified protections should be checked against the final assembly environment and load behavior.
