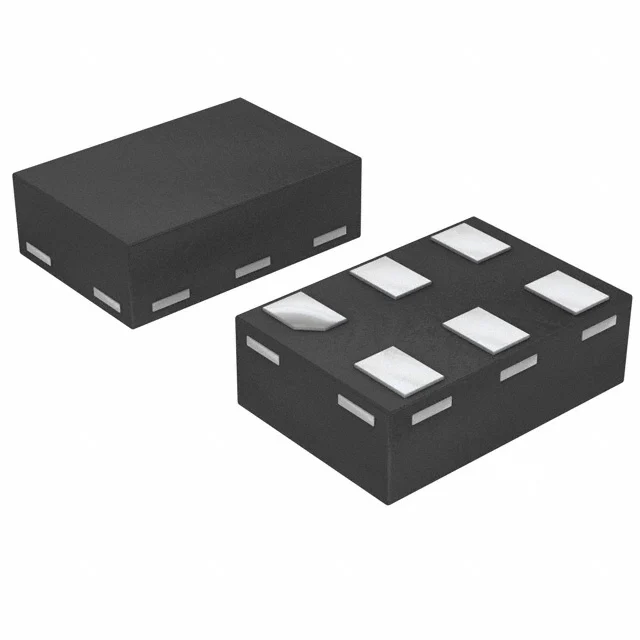

LD6806F/33P,115
IC REG LINEAR 3.3V 200MA 6XSON
- 製造商
- NXP USA Inc.
- 產品分類
- 電壓穩壓器與電壓控制器
- 封裝
- 6-XFDFN
- 庫存
- 23,750 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | NXP USA Inc. |
|---|---|
| 產品分類 | 電壓穩壓器與電壓控制器 |
| Control Features | Enable |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 250 µA |
| Min Qty | 2219 |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package | Bulk |
| Product status | Obsolete |
| Protection Features | Over Current, Over Temperature |
| PSRR | 55dB (1kHz) |
| Supplier Device Package | 6-XSON, SOT886 (1.45x1) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.13V @ 200mA |
| 資料表 | 查看資料表PDF |
採購概覽
LD6806F/33P,115 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LD6806F/33P,115 詳細描述
Product Overview
The LD6806F/33P,115 from NXP USA Inc. is a positive fixed-output linear voltage regulator intended to provide a 3.3V rail from inputs up to 5.5V. The single-output device supports up to 200mA and is specified with 0.13V maximum dropout at 200mA, making it suitable for compact regulated supply paths where a small headroom is available. It is offered in a 6-XFDFN surface-mount package, identified as 6-XSON, SOT886 (1.45x1). The operating temperature range is -40°C to 85°C, and the regulator includes enable control along with over-current and over-temperature protection.
Key Features
- Fixed positive 3.3V output with a maximum input voltage of 5.5V.
- Single regulator output rated for 200mA load current.
- Maximum dropout voltage of 0.13V at 200mA.
- Quiescent current of 100 µA and maximum supply current of 250 µA.
- Power-supply rejection ratio of 55dB at 1kHz.
- Enable control feature.
- Integrated over-current and over-temperature protection.
- Surface-mount 6-XFDFN package, 6-XSON SOT886 (1.45x1), with -40°C to 85°C operating range.
Applications
- Regulated 3.3V rail for low-current digital logic circuits.
- Sensor and interface circuits requiring a fixed 3.3V supply.
- Post-regulation of an input rail within the 5.5V maximum to 3.3V where headroom is available.
- Embedded control boards needing over-current and over-temperature protection in the 3.3V path.
- Compact surface-mount 3.3V supply paths in space-constrained electronic assemblies.
Design & Procurement Notes
Designers should verify that the input remains at or below 5.5V and that enough headroom exists for the 0.13V maximum dropout at 200mA. The 100 µA quiescent and 250 µA supply current are relevant to current-budget calculations. The enable control feature should be considered when output state control is required, while over-current and over-temperature protection should be included in fault-handling assumptions. Layout should account for the 6-XFDFN surface-mount package and the -40°C to 85°C operating range.
