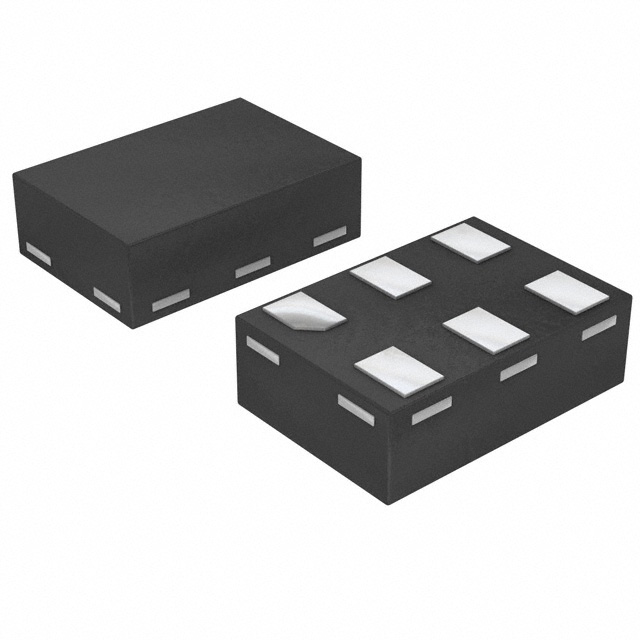

LD6806F/30P,115
IC REG LINEAR 3V 200MA 6XSON
- 製造商
- NXP USA Inc.
- 產品分類
- 電壓穩壓器與電壓控制器
- 封裝
- 6-XFDFN
- 庫存
- 33,935 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | NXP USA Inc. |
|---|---|
| 產品分類 | 電壓穩壓器與電壓控制器 |
| Control Features | Enable |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 250 µA |
| Min Qty | 2219 |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package | Bulk |
| Product status | Obsolete |
| Protection Features | Over Current, Over Temperature |
| PSRR | 55dB (1kHz) |
| Supplier Device Package | 6-XSON, SOT886 (1.45x1) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage Dropout (Max) | 0.13V @ 200mA |
| 資料表 | 查看資料表PDF |
採購概覽
LD6806F/30P,115 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
LD6806F/30P,115 詳細描述
Product Overview
The LD6806F/30P,115 from NXP USA Inc. is a fixed-output linear voltage regulator that provides a 3V rail at up to 200mA. It accepts a maximum input voltage of 5.5V and is specified with a maximum dropout of 0.13V at 200mA. The device includes enable control and protection against over-current and over-temperature conditions, with a quiescent current of 100 µA and a maximum supply current of 250 µA. Its 6-XFDFN package, identified as 6-XSON, SOT886 (1.45x1), supports surface-mount layouts, and the device provides 55dB PSRR at 1kHz.
Key Features
- Fixed positive 3V output from a single regulator, with a maximum output current of 200mA.
- Maximum input voltage of 5.5V and maximum dropout of 0.13V at 200mA.
- Enable control and over-current, over-temperature protection features.
- 100 µA quiescent current and 250 µA maximum supply current.
- 55dB PSRR at 1kHz.
- Surface-mount 6-XFDFN package, 6-XSON, SOT886 (1.45x1).
- Operating temperature range of -40°C to 85°C.
Applications
- Fixed 3V rail for logic, sensors, and peripheral circuits up to 200mA.
- Enable-controlled power domains in standby-sensitive board designs.
- Compact surface-mount regulation in space-limited assemblies.
- Fixed 3V rails in circuits sensitive to input supply noise.
Design & Procurement Notes
For design review, confirm that the input voltage remains below the 5.5V maximum and that the 3V output meets the load requirement at up to 200mA. The 0.13V dropout at 200mA defines the minimum input-to-output margin needed under full load. The enable function allows controlled regulator activation, while the 100 µA quiescent current and 250 µA maximum supply current support low-current standby analysis. The 55dB PSRR at 1kHz should be considered for noise-sensitive 3V rails. The 6-XFDFN, 6-XSON, SOT886 (1.45x1) surface-mount package requires footprint verification, and the -40°C to 85°C operating range should be checked against the final board environment. Procurement should match the exact part number LD6806F/30P,115 because the output is fixed, not adjustable.
LD6806F/30P,115 採購與供應支援
詢價支援LD6806F/30P,115 是由 NXP USA Inc. 製造的電壓穩壓器與電壓控制器 產品。Antrex Electronics 可協助確認目前庫存、價格、生產批次、交期及採購需求。
產品審核說明
LD6806F/30P,115 被歸類為 電壓穩壓器與電壓控制器 產品，製造商為 NXP USA Inc.。買家下單前應確認完整訂購型號、封裝、數量及專案需求。
詢價核對項目
- 目前庫存、價格及交期
- 生產批次、封裝類型及標籤照片
- 卷帶、托盤、管裝或剪帶包裝狀況
- 目標價格、需求數量及 BOM 採購要求
LD6806F/30P,115 常見問題
LD6806F/30P,115 目前有庫存嗎？
庫存會隨時變動，請提交詢價以確認目前可供數量、生產批次及交期。
可以取得 LD6806F/30P,115 的產品照片及包裝資訊嗎？
可以。我們可依要求協助確認標籤、包裝、生產批次及可用的產品照片。
如何取得 LD6806F/30P,115 的大量採購報價？
請提供所需數量、目標價格及其他採購要求，我們會協助確認價格、庫存與交期。
探索更多採購選項
可按製造商、產品分類或採購需求繼續尋找合適料號。
