R1154N001C-TR-FE
IC REG LIN POS ADJ 140MA SOT23-5
- 產品分類
- 電壓穩壓器與電壓控制器
- 封裝

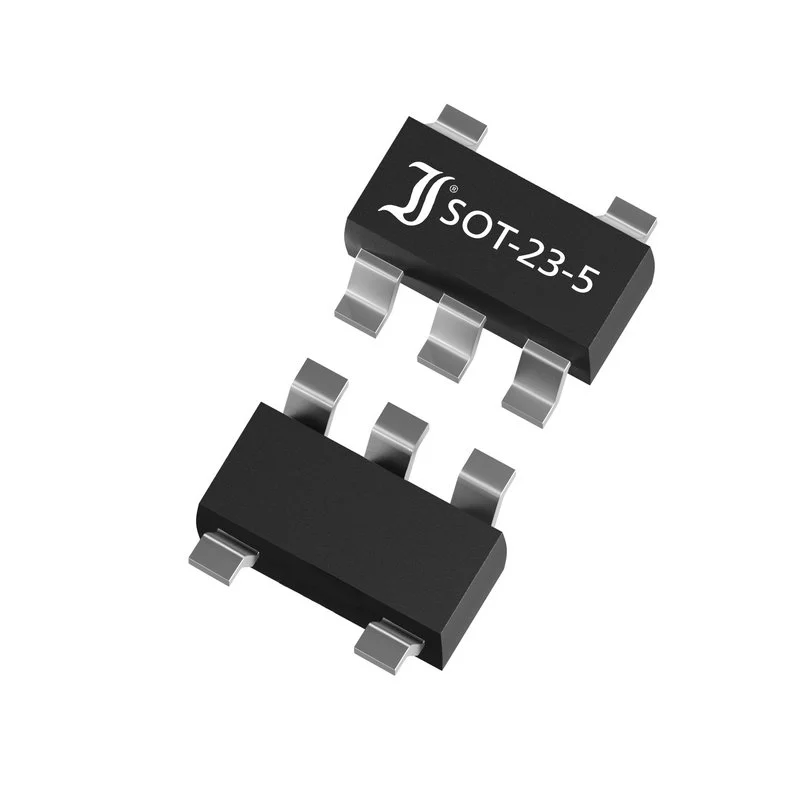

- SC-74A, SOT-753
- 庫存
- 72,329 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Nisshinbo Micro Devices Inc. |
|---|---|
| 產品分類 | 電壓穩壓器與電壓控制器 |
| Control Features | Enable |
| Current - Output | 140mA |
| Current - Quiescent (Iq) | 10 µA |
| Min Qty | 1 |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Product status | Active |
| Protection Features | Over Current, Over Temperature |
| Series | R1154x |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Max) | 24V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage Dropout (Max) | 0.4V @ 20mA |
| 資料表 | 查看資料表PDF |
採購概覽
R1154N001C-TR-FE 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
R1154N001C-TR-FE 詳細描述
Product Overview
The R1154N001C-TR-FE from Nisshinbo Micro Devices Inc. is a linear voltage regulator IC for positive adjustable output in a single-output SOT-23-5 package. It accepts up to 24 V input and provides an adjustable output from 2.5 V to 24 V at 140 mA. The device includes an enable control feature and over-current and over-temperature protection. Its surface-mount SC-74A, SOT-753 package and -40°C to 105°C operating temperature range support compact power sections in general electronic assemblies.
Key Features
- Single positive adjustable linear regulator output with 140 mA output current.
- Input voltage up to 24 V and output voltage from 2.5 V to 24 V.
- Maximum dropout voltage specified as 0.4 V at 20 mA.
- 10 µA quiescent current.
- Enable control feature.
- Over-current and over-temperature protection features.
- Surface-mount SOT-23-5 package, also described as SC-74A, SOT-753.
- Operating temperature range of -40°C to 105°C (TA).
Applications
- Regulating a positive rail in compact devices where input can be up to 24 V and load current is within 140 mA.
- Providing a single adjustable output for embedded control boards that require an enable-controlled power rail.
- Supplying regulated power to space-constrained surface-mount sections of general electronic equipment.
Design & Procurement Notes
When selecting this regulator, verify that the input-to-output difference is compatible with the 0.4 V dropout specification at 20 mA and that load current remains within 140 mA. The 2.5 V minimum output should be checked against the target rail, and the enable control can be used to turn the output on or off under system control. Thermal and ambient conditions should remain within -40°C to 105°C, and the SOT-23-5 footprint should match the intended surface-mount assembly. The part is listed as Active.
R1154N001C-TR-FE 採購與供應支援
詢價支援R1154N001C-TR-FE 是由 Nisshinbo Micro Devices Inc. 製造的電壓穩壓器與電壓控制器 產品。Antrex Electronics 可協助確認目前庫存、價格、生產批次、交期及採購需求。
產品審核說明
R1154N001C-TR-FE 被歸類為 電壓穩壓器與電壓控制器 產品，製造商為 Nisshinbo Micro Devices Inc.。買家下單前應確認完整訂購型號、封裝、數量及專案需求。
詢價核對項目
- 目前庫存、價格及交期
- 生產批次、封裝類型及標籤照片
- 卷帶、托盤、管裝或剪帶包裝狀況
- 目標價格、需求數量及 BOM 採購要求
R1154N001C-TR-FE 常見問題
R1154N001C-TR-FE 目前有庫存嗎？
庫存會隨時變動，請提交詢價以確認目前可供數量、生產批次及交期。
可以取得 R1154N001C-TR-FE 的產品照片及包裝資訊嗎？
可以。我們可依要求協助確認標籤、包裝、生產批次及可用的產品照片。
如何取得 R1154N001C-TR-FE 的大量採購報價？
請提供所需數量、目標價格及其他採購要求，我們會協助確認價格、庫存與交期。
