MICRF103BM
QWIKRADIO UHF ASK TRANSMITTER
- 產品分類
- RF 發射器
- 封裝

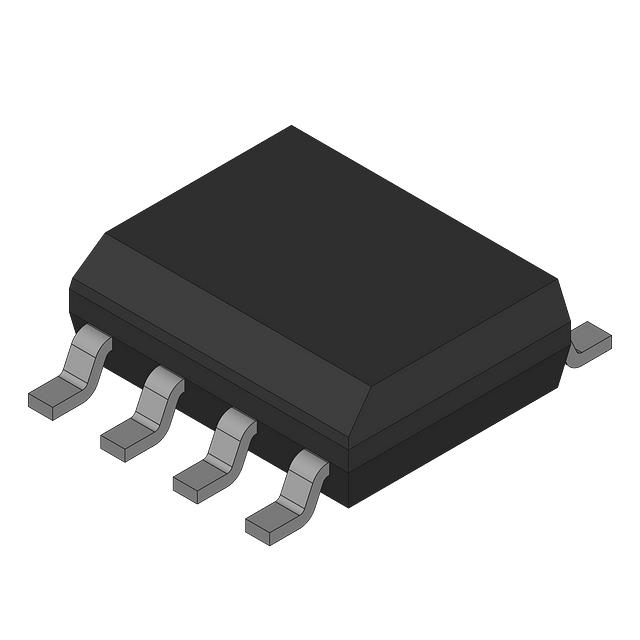

- 8-SOIC (0.154", 3.90mm Width)
- 庫存
- 5,716 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Microchip Technology |
|---|---|
| 產品分類 | RF 發射器 |
| Antenna Connector | PCB, Surface Mount |
| Applications | RKE |
| Current - Transmitting | 19mA |
| Data Interface | PCB, Surface Mount |
| Data Rate (Max) | 115Kbps |
| Frequency | 800MHz ~ 1GHz |
| Min Qty | 237 |
| Modulation or Protocol | ASK, OOK |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tube |
| Power - Output | -3dBm |
| Product status | Obsolete |
| Supplier Device Package | 8-SOIC |
| Voltage - Supply | 4.75V ~ 5.5V |
| 資料表 | 查看資料表PDF |
採購概覽
MICRF103BM 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
MICRF103BM 詳細描述
Product Overview
MICRF103BM is a ASK/OOK RF transmitter IC from Microchip Technology, organized under Semiconductors / RF and Wireless / RF Transmitters. It is intended for generating or modulating RF signals in wireless transmitters, remote-control systems, telemetry equipment, RFID/RKE designs, low-power sensor nodes or other embedded radio products. The reviewed product data indicates that the modulation or band reference includes ASK, UHF, the package reference is 8-SOIC (0.154", 3.90mm Width). Microchip RF transmitter parts are often reviewed for remote keyless entry, RFID, ASK/FSK telemetry and embedded wireless control applications where the exact ordering suffix and package are important. Buyers should verify the full datasheet, output-power setting, data interface, reference clock, antenna matching network, package drawing, marking and ordering suffix before production use or replacement approval.
Key Features
- Manufacturer: Microchip Technology
- Part Number: MICRF103BM
- Product Category: Semiconductors / RF and Wireless / RF Transmitters
- Device Type: ASK/OOK RF transmitter IC
- Product Description: MICRF103BM is an ASK/OOK RF transmitter IC with ASK, UHF reference, 8-SOIC (0.154", 3.90mm Width), surface-mount IC package for PCB assembly, intended for low-power sub-GHz wireless transmission and simple data-link applications.
- Modulation / Band Reference: ASK, UHF
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Mounting / Construction: surface-mount IC package for PCB assembly
- Application Band Reference: wireless communication, telemetry, remote-control and RF transmitter signal-chain designs
- Functional Role: RF signal generation, transmitter modulation and wireless data-link transmission
- Sourcing Description: Qwikradio Uhf ASK Transmitter
Applications
MICRF103BM can be used in sub-GHz ISM transmitters, remote-control devices, wireless sensors, metering equipment, alarm systems, garage-door controllers, smart-home products, telemetry links and low-power embedded RF equipment. Design review should include output power, frequency band, modulation mode, matching network, reference clock, supply voltage and local RF compliance requirements.
Quality & Sourcing
Antrex Electronics can support MICRF103BM sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For RF transmitter purchasing, buyers can provide quantity, target price, acceptable date code, packaging preference, frequency band, modulation requirement, output-power requirement and application information for faster quotation support. Antrex Electronics can also help arrange product photos, label review, visual inspection and third-party testing support when required. OEMs, EMS providers, RF module manufacturers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find RF transmitter IC requests for sourcing assistance.
