HTB300-P/SP11
The HTB300-P/SP11 is a 300A open-loop Hall effect current transducer from LEM, designed for isolated AC/DC current measurement in industrial power systems, drives, UPS, and converters
- 製造商
- LEM USA Inc.
- 產品分類
- 電流感測器
- 封裝
- SENSOR
- 庫存
- 1,500 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | LEM USA Inc. |
|---|---|
| 產品分類 | 電流感測器 |
| Accuracy | ±1% |
| Applications | Motor Drives, Industrial Inverters, UPS Systems, Welding Power Supplies, Battery Systems |
| Bandwidth | DC to 25 kHz |
| Housing Material | UL94-V0 Rated Insulating Plastic |
| Isolation Type | Galvanic Isolation |
| Isolation Voltage | 2500 V |
| Low Power Consumption | Yes |
| Measured Current Type | AC / DC / Pulsed Current |
| Measurement Technology | Open loop Hall effect |
| Measuring Range | ±600 A |
| Mounting Type | PCB Mount |
| Nominal Primary Current | 300 A |
| Operating Temperature Range | -40°C to +80°C |
| Output Type | Voltage Output |
| Package Type | Compact Sensor Module |
| Primary Aperture Diameter | 16 mm |
| Product Type | Hall Effect Current Transducer |
| Response Time | ≤10 µs |
| Secondary Nominal Signal | 4 V at nominal current |
| Supply Voltage | ±12 V to ±15 V DC |
| 資料表 | 索取數據表 |
採購概覽
HTB300-P/SP11 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
HTB300-P/SP11 詳細描述
Product Overview

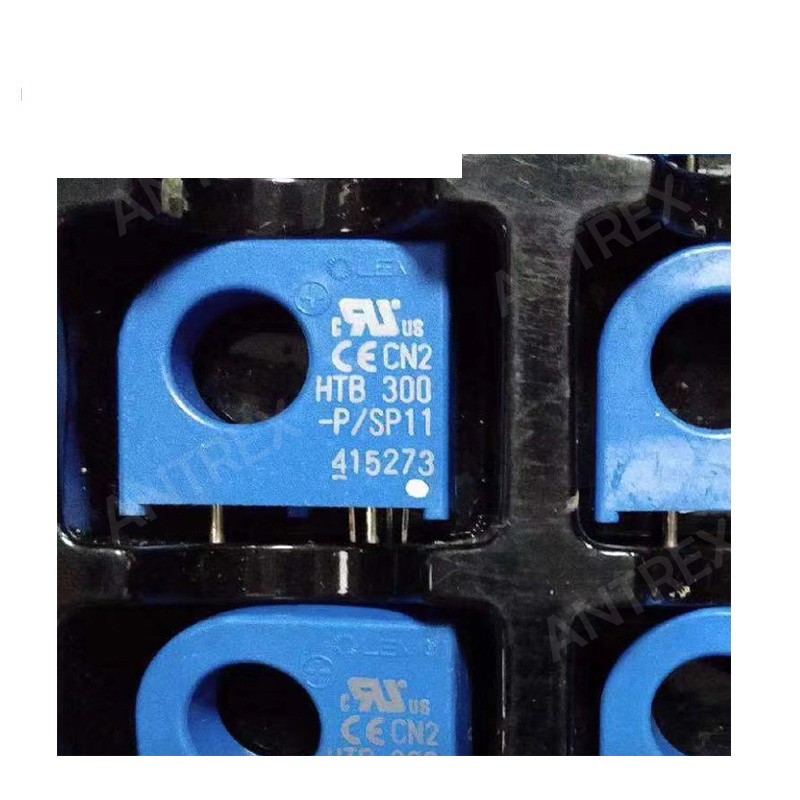

HTB300-P/SP11 is a Hall effect open-loop current transducer manufactured by LEM. The device is designed for non-intrusive measurement of DC, AC and pulsed currents with galvanic isolation between the primary power circuit and the secondary measurement circuit. Featuring a 300A nominal current rating, compact PCB mounting structure and analog voltage output, HTB300-P/SP11 is widely used in industrial drives, power converters, UPS systems, welding equipment and renewable energy applications.
Key Features
Manufacturer: LEM
Part Number: HTB300-P/SP11
Device Type: Hall Effect Current Transducer
Product Category: Industrial Current Sensor
Measuring Principle: Open-Loop Hall Effect Technology
Primary Nominal Current: 300A
Measurement Capability: DC, AC and Pulsed Current Measurement
Measuring Range: Up to ±600A Peak Current Capability
Output Type: Analog Voltage Output
Output Voltage: ±4V at Nominal Current (Typical)
Supply Voltage: ±12V to ±15V Dual Supply
Galvanic Isolation: Primary to Secondary Circuit Isolation
Insulation Voltage: 2500V
Low Power Consumption Design
High Immunity to External Interference
Fast Response for Dynamic Current Monitoring
Aperture Diameter: 16mm
Mounting Type: PCB Mount
Package Type: Compact Plastic Housing
Housing Material: UL94-V0 Flame Retardant Plastic
Operating Temperature Range: Industrial Grade
RoHS Status: RoHS Compliant Version Available
Application Type: Electrical Current Measurement
Typical Applications: AC Variable Speed Drives, Servo Motor Drives, UPS Systems, Battery Applications, Switching Power Supplies and Welding Equipment
Product Status: Active / Industrial Maintenance Component
Ordering Note: Verify supply voltage, output configuration, mounting dimensions and current rating before replacement use.
Applications
HTB300-P/SP11 is designed for accurate isolated current measurement in industrial power electronics. Typical applications include motor control systems, industrial automation equipment, DC power converters, renewable energy systems, battery management systems, UPS equipment, welding machines and power supply monitoring systems.
Quality & Sourcing
Antrex Electronics can support HTB300-P/SP11 sourcing with stock availability checks, RFQ quotation, manufacturer verification, package confirmation, date code review and shipment arrangement. For current sensor sourcing projects, buyers can provide quantity requirements, acceptable date codes, electrical specifications and application information for faster quotation support.
For quality control, Antrex Electronics can help arrange product photos, marking verification, visual inspection and third-party testing when required. OEMs, EMS providers, industrial equipment manufacturers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find sensor component requests.
