DHAB S/24

Product Overview

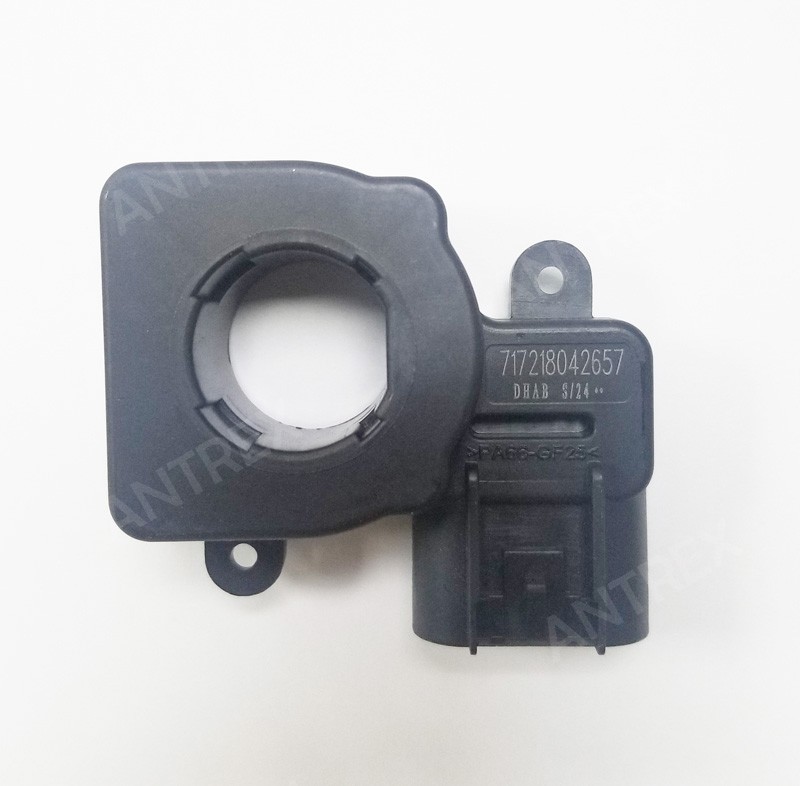

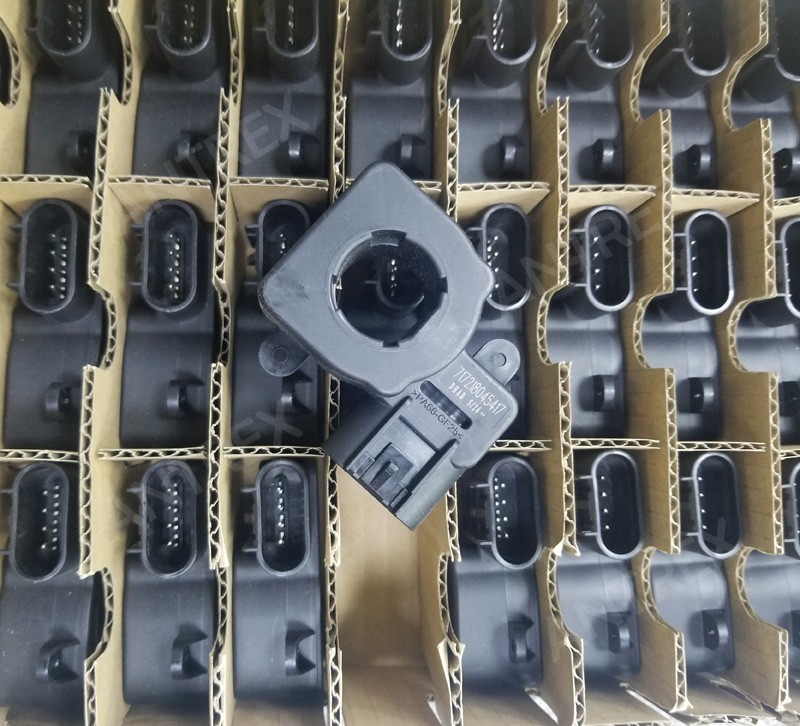

DHAB S/24 is a LEM Hall-effect current sensor designed for accurate AC and DC current measurement applications. The device features dual-range current measurement capability, bidirectional sensing and voltage output signal characteristics. With isolated measurement technology, compact sensor construction and reliable operation, it is suitable for battery management systems, industrial power monitoring, motor control, renewable energy equipment and power conversion applications.

Key Features

• Manufacturer: LEM

• Part Number: DHAB S/24

• Device Type: Hall Effect Current Sensor

• Product Category: Current Sensor / Transducer

• Technology: Open Loop Hall Effect Technology

• Measurement Type: AC and DC Current Measurement

• Sensor Configuration: Dual Range Current Sensor

• Detection Function: Bidirectional Current Detection

• Output Signal: Voltage Output

• Supply Voltage: 5VDC

• Isolation: Galvanic Isolation Between Primary and Secondary Circuits

• Accuracy: Verify According to Specific Datasheet Configuration

• Response Time: Fast Response for Dynamic Current Monitoring

• Bandwidth: Suitable for Power Electronics and Control Applications

• Operating Temperature Range: Verify According to Manufacturer Datasheet

• Package Type: Sensor Module

• Mounting Type: PCB / Panel Integration Depending on Application

• Environmental Compliance: RoHS Compliant

• Application Type: Current Monitoring and Protection Systems

• Typical Applications: Battery Management Systems, Motor Drives, Industrial Power Supplies and Renewable Energy Systems

• Product Status: Active / Verify Availability Before Production Use

• Ordering / Packaging Note: Buyers should verify exact LEM ordering code, current range, output configuration, mechanical dimensions and application requirements before production use.

Applications

DHAB S/24 is designed for electronic systems requiring isolated current measurement and reliable feedback signals. Typical applications include electric vehicle battery management systems, industrial motor control, power converters, renewable energy systems, UPS equipment, charging systems, industrial automation equipment and current protection circuits.

Quality & Sourcing

Antrex Electronics can support DHAB S/24 sourcing with stock availability checks, RFQ quotation, manufacturer verification, package confirmation, date code review and shipment arrangement. For project-based purchasing, buyers can provide quantity, target price, required current range, packaging requirements and application information for faster quotation support.

For quality control, Antrex Electronics can help arrange product photos, label review, visual inspection, pin inspection and third-party testing support when required. OEMs, EMS providers, automotive suppliers, industrial equipment manufacturers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find current sensor requests for sourcing assistance.

Datasheet

       Download DHAB S/24 Datasheet PDF
