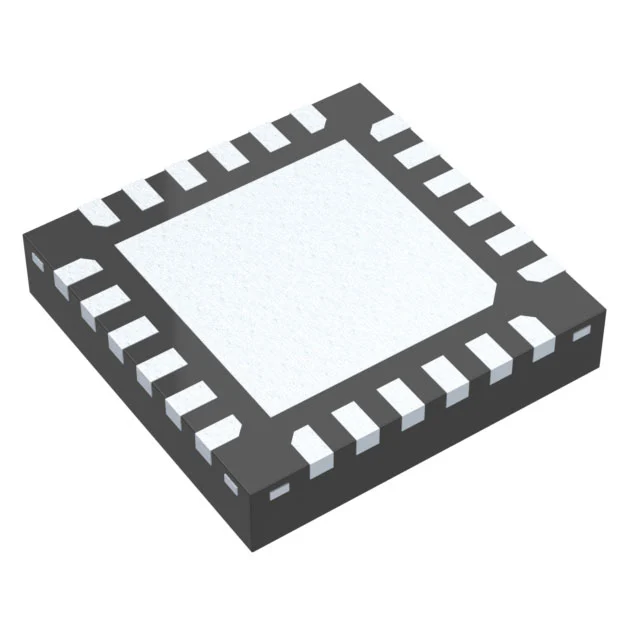

HMC1097LP4ETR
RF MODULATOR 100MHZ-6GHZ 24VFQFN
- 產品分類
- RF 調變器
- 封裝
- 24-VFQFN Exposed Pad
- 庫存
- 524 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Analog Devices Inc. |
|---|---|
| 產品分類 | RF 調變器 |
| Current - Supply | 170 mA |
| Function | Modulator |
| LO Frequency | 100MHz ~ 6GHz |
| Min Qty | 1 |
| Mounting Type | Surface Mount |
| Noise Floor | -160dBm/Hz |
| Output Power | 2.75dBm |
| P1dB | 11dBm |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Product status | Obsolete |
| RF Frequency | 100MHz ~ 6GHz |
| Supplier Device Package | 24-QFN (4x4) |
| Test Frequency | 1.7GHz ~ 2.2GHz |
| Voltage - Supply | 4.75V ~ 5.25V |
| 資料表 | 查看資料表PDF |
採購概覽
HMC1097LP4ETR 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
HMC1097LP4ETR 詳細描述
Product Overview
HMC1097LP4ETR from Analog Devices Inc. is a 0.1 GHz to 6.0 GHz direct quadrature modulator RFIC. This product detail focuses on the RF modulation architecture, operating band, baseband interface, linearity and package considerations for engineering and sourcing teams.
The device is relevant for transmitter signal chains where complex I/Q modulation, vector modulation, phase modulation or modulator-driver functionality must match the original BOM and board-level RF design.
Key Features
- Manufacturer: Analog Devices Inc.
- Part Number: HMC1097LP4ETR
- Device Type: 0.1 GHz to 6.0 GHz direct quadrature modulator RFIC
- Modulation Format: GMSK, QPSK, QAM, SSB and direct-RF quadrature modulation
- Frequency Range: 0.1 GHz to 6.0 GHz RF output range
- Baseband / I/Q Bandwidth: differential I/Q baseband input path for wideband modulation
- Linearity / Output Performance: output power about 2.7 dBm; high-linearity low-noise direct modulator class
- Carrier / Sideband / Balance Notes: single-ended 50 Ω RF output with on-chip LO quadrature generation
- Supply Voltage / Current: 5 V / about 170 mA supply class
- Package / Case: 4 mm x 4 mm QFN package family
- Operating Temperature: -40°C to +85°C
- Design Notes: Match LO drive, I/Q common-mode level, baseband filtering and package footprint to the exact ordering suffix before production use.
Applications
Wireless infrastructure, microwave radio, broadband access, satellite modem, instrumentation and complex-modulation transmitter designs.
Replacement builds, shortage support and BOM sourcing projects where RF range, baseband interface, package and supply requirements must remain compatible.
Quality & Sourcing
Antrex Electronics can support sourcing for HMC1097LP4ETR through available stock checks, BOM consolidation and alternative-lot review. For RF modulator ICs, packaging condition, date code, MSL handling and original labeling should be checked before shipment.
For project builds or shortage support, Antrex Electronics can coordinate visual inspection, package verification and third-party electrical or authenticity testing when required. This helps buyers manage risk when sourcing discontinued, allocated or hard-to-find RF modulator parts.
