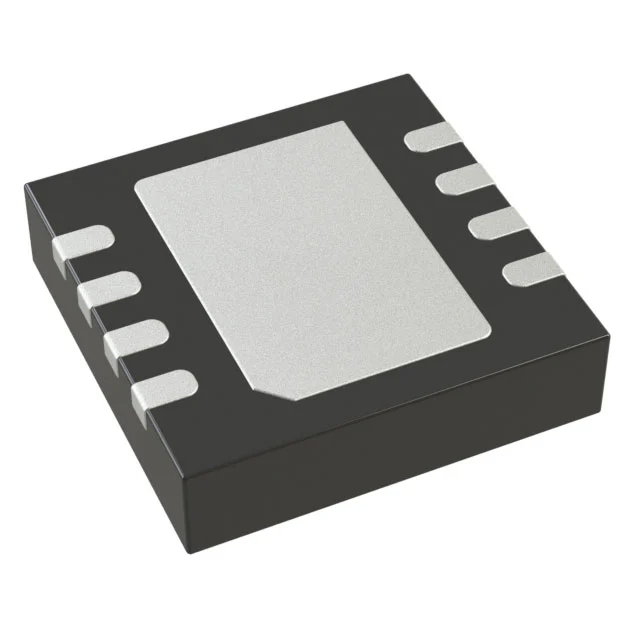

ADP1708ACPZ-R7
IC REG LINEAR POS ADJ 1A 8LFCSP
- 產品分類
- 電壓穩壓器與電壓控制器
- 封裝
- 8-WFDFN Exposed Pad, CSP
- 庫存
- 12,177 件
- 供貨狀態
- 當前數量需確認。
產品屬性
| 製造商 | Analog Devices Inc. |
|---|---|
| 產品分類 | 電壓穩壓器與電壓控制器 |
| Control Features | Enable |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 390 µA |
| Current - Supply (Max) | 1.55 mA |
| Min Qty | 1 |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Product status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 70dB ~ 56dB (1kHz) |
| Supplier Device Package | 8-LFCSP (3x3) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage Dropout (Max) | 0.6V @ 1A |
| 資料表 | 查看資料表PDF |
採購概覽
ADP1708ACPZ-R7 的主要供貨及採購資訊。
為何選擇 Antrex Electronics？
為已核實的採購、檢驗及國際採購需求提供獨立分銷支援。
獨立分銷支援
支援短缺、停產及難找電子元器件的生產與採購需求。
可追溯性審查
可在訂單確認前審查標籤、批號、生產批次及現有供應鏈文件。
檢驗與測試
如有需要，可安排外觀檢查、X-ray 及第三方測試支援。
全球採購支援
支援 OEM、EMS、分銷商的國際採購需求，涵蓋單一料號及 BOM 專案。
資質與驗證支援
為電子元器件採購提供品質控制、可追溯性審查及檢驗支援。
ADP1708ACPZ-R7 詳細描述
Product Overview
The ADP1708ACPZ-R7 from Analog Devices Inc. is a single-channel linear voltage regulator designed for positive adjustable output applications. It provides up to 1 A of output current from an input supply up to 5.5 V, with an adjustable output range from 0.8 V to 5 V. The device uses an 8-LFCSP (3x3) surface-mount package with an exposed pad, supporting compact board layouts. It includes an enable control feature and protection against over current and over temperature, with a maximum dropout voltage of 0.6 V at 1 A. The junction temperature operating range is -40°C to 125°C, making it suitable for regulated power rails in general electronic systems.
Key Features
- Positive adjustable output regulator with one output channel and 1 A maximum output current.
- Input voltage up to 5.5 V and output adjustable from 0.8 V to 5 V.
- Maximum dropout voltage of 0.6 V at 1 A.
- Quiescent current of 390 µA and maximum supply current of 1.55 mA.
- Power supply rejection ratio specified as 70 dB to 56 dB at 1 kHz.
- Enable control feature for output enable operation.
- Over-current and over-temperature protection.
- 8-LFCSP (3x3) surface-mount package with exposed pad.
Applications
- Regulated supply rail for low-power processors, sensors, or interface circuits requiring an adjustable positive voltage.
- Post-regulation from a higher DC supply, within the 5.5 V input limit, for compact board-level power distribution.
- Adjustable rail generation for portable electronic assemblies where a 1 A linear regulator can provide a regulated output.
Design & Procurement Notes
For board selection, verify that the input voltage does not exceed 5.5 V and that the required output voltage can be set between 0.8 V and 5 V. At full 1 A load, account for at least 0.6 V dropout margin and thermal considerations, especially near the 125°C junction limit. The exposed-pad 8-LFCSP package supports surface-mount assembly and exposed-pad layout considerations. If system power control is required, use the enable feature to manage the output rail. Confirm that over-current and over-temperature protection align with the intended load profile rather than replacing external protection where required.
