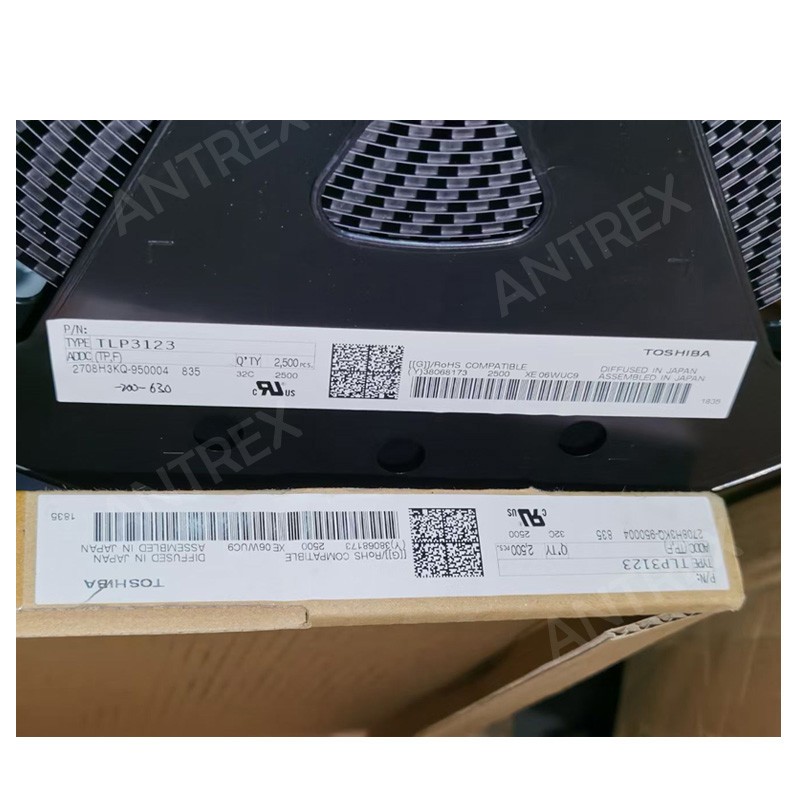

TLP3123
TLP3123 is a Toshiba MOSFET output photorelay featuring 1-Form-A switching, high current capability, and electrical isolation for power line control and measurement equipment
- ПРОИЗВОДИТЕЛЬ
- Toshiba Semiconductor and Storage
- КАТЕГОРИЯ ТОВАРА
- Оптопары / Оптроны
- Корпус
- SOP-4
- Склад
- 1,500 шт.
- Наличие
- Текущее количество требует подтверждения.
Характеристики товара
| ПРОИЗВОДИТЕЛЬ | Toshiba Semiconductor and Storage |
|---|---|
| КАТЕГОРИЯ ТОВАРА | Оптопары / Оптроны |
| Applications | Measurement Instruments, Power Line Control, Factory Automation Equipment |
| Features | Low On-Resistance, High Current Switching, Compact Package, Mechanical Relay Replacement |
| Input Type | Infrared LED |
| Isolation Voltage | 1500Vrms Minimum |
| Mounting Style | Surface Mount Technology (SMD) |
| Number of Channels | 1 Channel |
| Off-State Current | 1nA Maximum |
| On-State Current | 1A Maximum |
| On-State Resistance | 0.1Ω Typical |
| Operating Temperature Range | -40°C to +85°C |
| Output Terminal Capacitance | 300pF Typical |
| Output Type | MOSFET Output |
| Package Type | SOP-4 (2.54SOP4) |
| Peak Off-State Voltage | 40V Minimum |
| Relay Configuration | 1-Form-A (Normally Open) |
| RoHS Status | ROHS compliant |
| Safety Standards | UL1577, cUL, EN60747-5-5 Approved |
| Storage Temperature Range | -55°C to +125°C |
| Trigger LED Current | 3mA Maximum |
| Turn-off Time | 0.5ms Maximum |
| Turn-on Time | 3ms Maximum |
| Техническая документация | Запросить даташит |
Сводка по закупке
Основная информация о поставке и закупке для TLP3123.
Почему выбирают Antrex Electronics?
Независимая дистрибьюторская поддержка для проверенных закупок, инспекции и международных требований к поставкам.
Поддержка независимого дистрибьютора
Поиск дефицитных, снятых с производства и труднодоступных компонентов для производственных и закупочных задач.
Проверка прослеживаемости
До подтверждения заказа можно проверить этикетку, партию, дату производства и доступную документацию по цепочке поставок.
Инспекция и тестирование
При необходимости можно организовать визуальную проверку, рентген и тестирование третьей стороной.
Глобальная поддержка закупок
Поддержка международных закупок для OEM, EMS и дистрибьюторов — от отдельных компонентов до BOM-проектов.
Сертификация и поддержка проверки
Контроль качества, проверка прослеживаемости и инспекционная поддержка для закупок электронных компонентов.
Подробное описание TLP3123
Product Overview
TLP3123 is a Toshiba photorelay (MOSFET output photocoupler) designed for high-capacity switching and electrical isolation applications. Integrating an infrared LED with a photo-MOSFET output in a compact SOP-4 package, this device provides 40V peak off-state voltage, 1A on-state current capability and low on-state resistance of 0.1Ω typical. With high reliability and fast switching characteristics, it is suitable for measurement instruments, power line control, factory automation equipment and solid-state relay replacement applications.
Key Features
Manufacturer: Toshiba Electronic Devices & Storage Corporation
Part Number: TLP3123
Product Type: Photorelay / MOSFET Output Photocoupler
Output Type: Photo-MOSFET Output
Configuration: 1-Form-A Normally Open Switch
Input Device: Infrared LED
Number of Channels: 1 Channel
Peak Off-State Voltage: 40V min.
On-State Current: 1A max.
On-State Resistance (RON): 0.1Ω typical
Trigger LED Current: 3mA max.
Off-State Current: 1nA max.
Output Terminal Capacitance: 300pF typical
Isolation Voltage: 1500Vrms min.
Package Type: SOP-4 (2.54SOP4)
Mounting Type: Surface Mount Technology (SMT)
Turn-On Time: 3ms max.
Turn-Off Time: 0.5ms max.
Safety Certification: UL1577 recognized
Isolation Standard: EN60747-5-5 (VDE) available
Operating Temperature Range: -40°C to +85°C
Features: Low resistance, high current switching, compact design and reliable isolation performance
Typical Applications: Measurement instruments, power line control, industrial automation and solid-state relay circuits
Datasheet: TLP3123 datasheet PDF available for technical verification before production use.
Applications
TLP3123 is designed for isolated switching applications requiring high current capability and reliable MOSFET-based relay operation. Typical applications include measurement equipment, semiconductor testing systems, industrial automation controllers, power line switching, factory automation equipment and replacement of mechanical relays.
Quality & Sourcing
Antrex Electronics can support TLP3123 sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For project-based purchasing, customers can provide quantity requirements, delivery schedules, application details and technical specifications for faster quotation support.
For quality assurance, Antrex Electronics can assist with product photos, marking verification, visual inspection and third-party testing services when required. OEM manufacturers, industrial equipment suppliers, automation system providers and electronic component buyers are welcome to submit BOM lists or hard-to-find optoelectronic component requirements for sourcing assistance.
