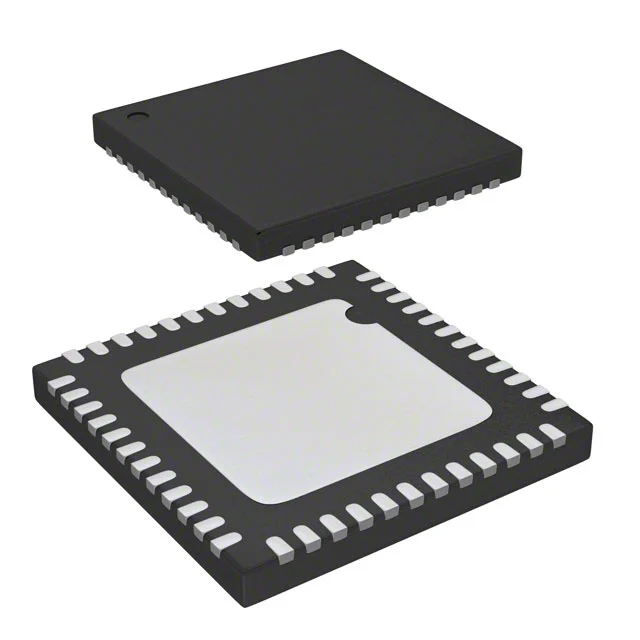

EFR32FG13P233F512GM48-D
IC RF TXRX+MCU 802.15.4 48QFN
- ПРОИЗВОДИТЕЛЬ
- Silicon Labs
- КАТЕГОРИЯ ТОВАРА
- RF-трансиверы
- Корпус
- 48-VFQFN Exposed Pad
- Склад
- 587 шт.
- Наличие
- Текущее количество требует подтверждения.
Характеристики товара
| ПРОИЗВОДИТЕЛЬ | Silicon Labs |
|---|---|
| КАТЕГОРИЯ ТОВАРА | RF-трансиверы |
| Current - Receiving | 8.4mA ~ 14mA |
| Current - Transmitting | 8.5mA ~ 134.3mA |
| Data Rate (Max) | 2Mbps |
| Frequency | 169MHz ~ 170MHz, 195MHz ~ 358MHz, 426MHz ~ 445MHz, 470MHz ~ 510MHz, 863MHz ~ 876MHz, 902MHz ~ 930MHz, 2.4GHz ~ 2.4835GHz |
| GPIO | 28 |
| Memory Size | 512kB Flash, 64kB RAM |
| Min Qty | 1300 |
| Modulation | 2FSK, 4FSK, ASK, BPSK, DBPSK, DSSS, GFSK, GMSK, MSK, OOK, OQPSK |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tray |
| Power - Output | 20dBm |
| Product status | Active |
| Protocol | Flex Gecko |
| RF Family/Standard | 802.15.4, General ISM < 1GHz |
| Sensitivity | -103.3dBm |
| Serial Interfaces | I2C, I2S, SPI, IrDA, UART, USART |
| Series | Flex Gecko |
| Supplier Device Package | 48-QFN (7x7) |
| Type | TxRx + MCU |
| Voltage - Supply | 1.8V ~ 3.8V |
| Техническая документация | Открыть техническую документацию PDF |
Сводка по закупке
Основная информация о поставке и закупке для EFR32FG13P233F512GM48-D.
Почему выбирают Antrex Electronics?
Независимая дистрибьюторская поддержка для проверенных закупок, инспекции и международных требований к поставкам.
Поддержка независимого дистрибьютора
Поиск дефицитных, снятых с производства и труднодоступных компонентов для производственных и закупочных задач.
Проверка прослеживаемости
До подтверждения заказа можно проверить этикетку, партию, дату производства и доступную документацию по цепочке поставок.
Инспекция и тестирование
При необходимости можно организовать визуальную проверку, рентген и тестирование третьей стороной.
Глобальная поддержка закупок
Поддержка международных закупок для OEM, EMS и дистрибьюторов — от отдельных компонентов до BOM-проектов.
Сертификация и поддержка проверки
Контроль качества, проверка прослеживаемости и инспекционная поддержка для закупок электронных компонентов.
Подробное описание EFR32FG13P233F512GM48-D
Product Overview
EFR32FG13P233F512GM48-D is an RF transceiver SoC with integrated microcontroller from Silicon Labs. The device combines radio communication and embedded control in one package, making it useful when the wireless protocol stack and local application processing need to sit close together. It is typically reviewed for IEEE 802.15.4 / Zigbee / Thread connectivity and for products such as Zigbee, Thread, Matter-ready, mesh networking, smart-home, lighting and industrial sensor-node designs.
For design-in or replacement, buyers should confirm 2.4 GHz ISM-band operation should be checked against the datasheet and regional settings, the orderable version is associated with a 48-VFQFN Exposed Pad package, surface-mount IC package for compact RF PCB layouts. The antenna path, matching network, firmware or protocol stack, regulatory requirements and lifecycle status should also be checked against the official manufacturer documentation before production use.
Key Features
- Manufacturer: Silicon Labs
- Part Number: EFR32FG13P233F512GM48-D
- Product Category: RF Transceiver
- Device Type: RF transceiver SoC with integrated microcontroller
- Product Description: RF transceiver SoC with integrated microcontroller with IEEE 802.15.4 / Zigbee / Thread, 2.4 GHz ISM-band operation should be checked against the datasheet and regional settings, 48-VFQFN Exposed Pad, intended for compact low-power products that combine RF communication with embedded control
- Wireless Protocol / Band Reference: IEEE 802.15.4 / Zigbee / Thread
- Frequency / Band Note: 2.4 GHz ISM-band operation should be checked against the datasheet and regional settings
- Package / Case: 48-VFQFN Exposed Pad
- Mounting / Construction: surface-mount IC package for compact RF PCB layouts
- Application Focus: Zigbee, Thread, Matter-ready, mesh networking, smart-home, lighting and industrial sensor-node designs
- Integrated Function: RF transceiver with embedded processing or wireless-MCU integration; confirm memory, peripherals and firmware support in the datasheet
- Functional Role: RF transmit/receive communication, wireless data exchange and embedded connectivity
Applications
EFR32FG13P233F512GM48-D is suitable for Zigbee, Thread, Matter-ready, 802.15.4 mesh networking, smart-home, lighting, industrial sensor and building automation systems.
The protocol stack, channel plan, output power, coexistence requirements, antenna design and firmware compatibility should be matched to the target product.
